Warranty                                                                       3-year

Connector Plating                                                         Gold

Shell                                                                              SPCC,Plated Ni

Housing                                                                         PBT +30% G/F

Cover                                                                             LCP + 30% G/F

HOOD                                                                            Zinc Metal

Color                                                                              Black

b)  Dielectric WithstandingVoltage:500V AC

c)  Insulation Resistance: 500MΩ/Min

d)  Contact Resistance: 35mΩ/Max

e)  Operaion Temperature: -20℃～+85℃

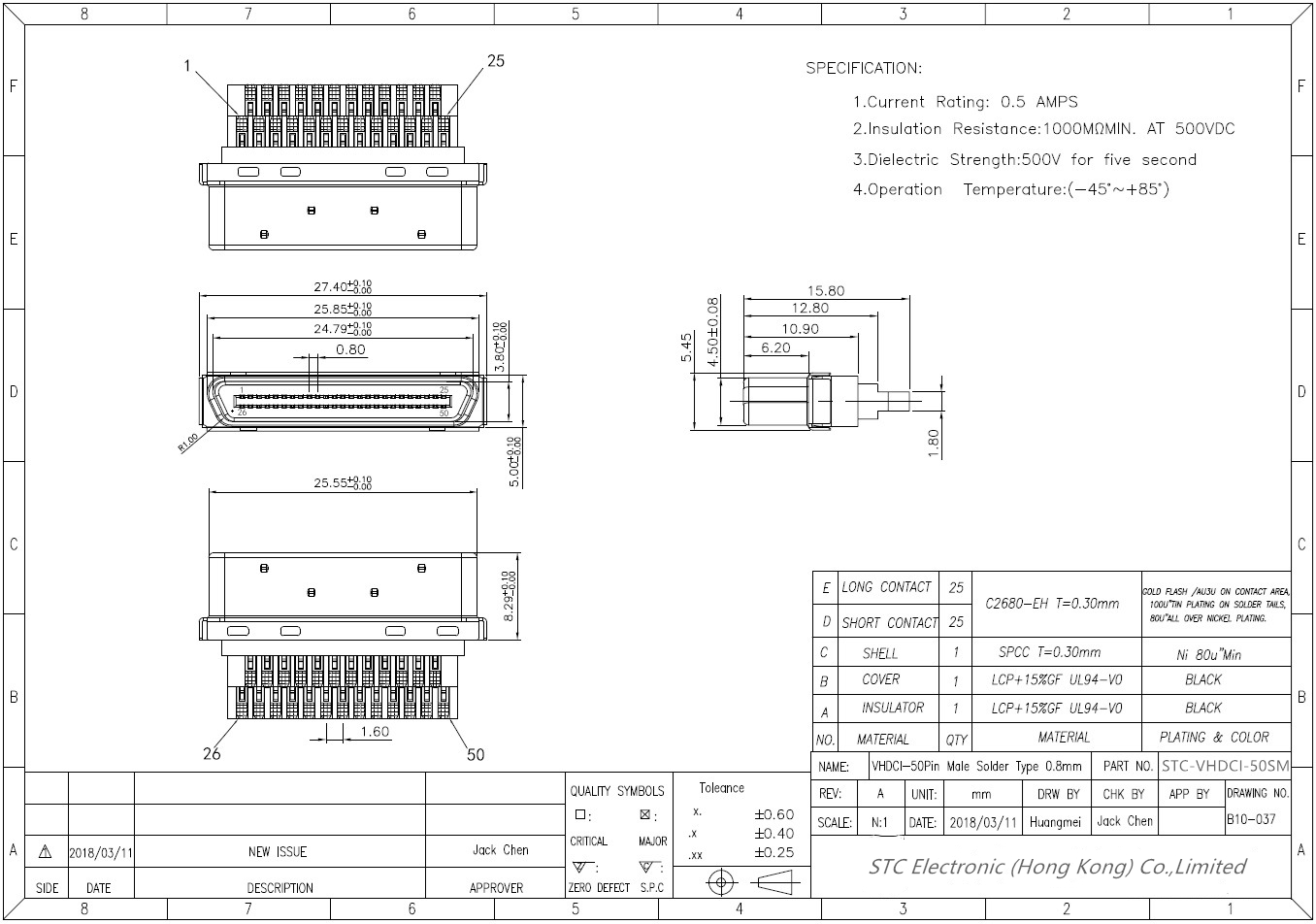

VHDCI 50Pin Male connector pitch=0.8mm Solder Type Ultra Thin VHDCI 50 Pin male connector for cable.

VHDCI 50 Pin Male Connector Pitch=0.8mm With Metal Hoodector.

This slimline version of the VHDCI connector is designed to allow users to directly terminate a cable with soldered connections to the 50 Way VHDCI connector. It is difficult to terminate cable to the 50 pin VHDCI because of the high density and fine pitch. STC Interfaces recommends the use of purchased cable assemblies for applications where most or all of the contacts are in use.
