Warranty                                                                       3-year

Connector Plating                                                         Gold

Shell                                                                              SPCC,Plated Ni

Housing                                                                         PBT +30% G/F

Cover                                                                             LCP + 30% G/F

HOOD                                                                            Zinc Metal

Color                                                                              Black

b)  Dielectric WithstandingVoltage:500V AC

c)  Insulation Resistance: 500MΩ/Min

d)  Contact Resistance: 35mΩ/Max

e)  Operaion Temperature: -20℃～+85℃

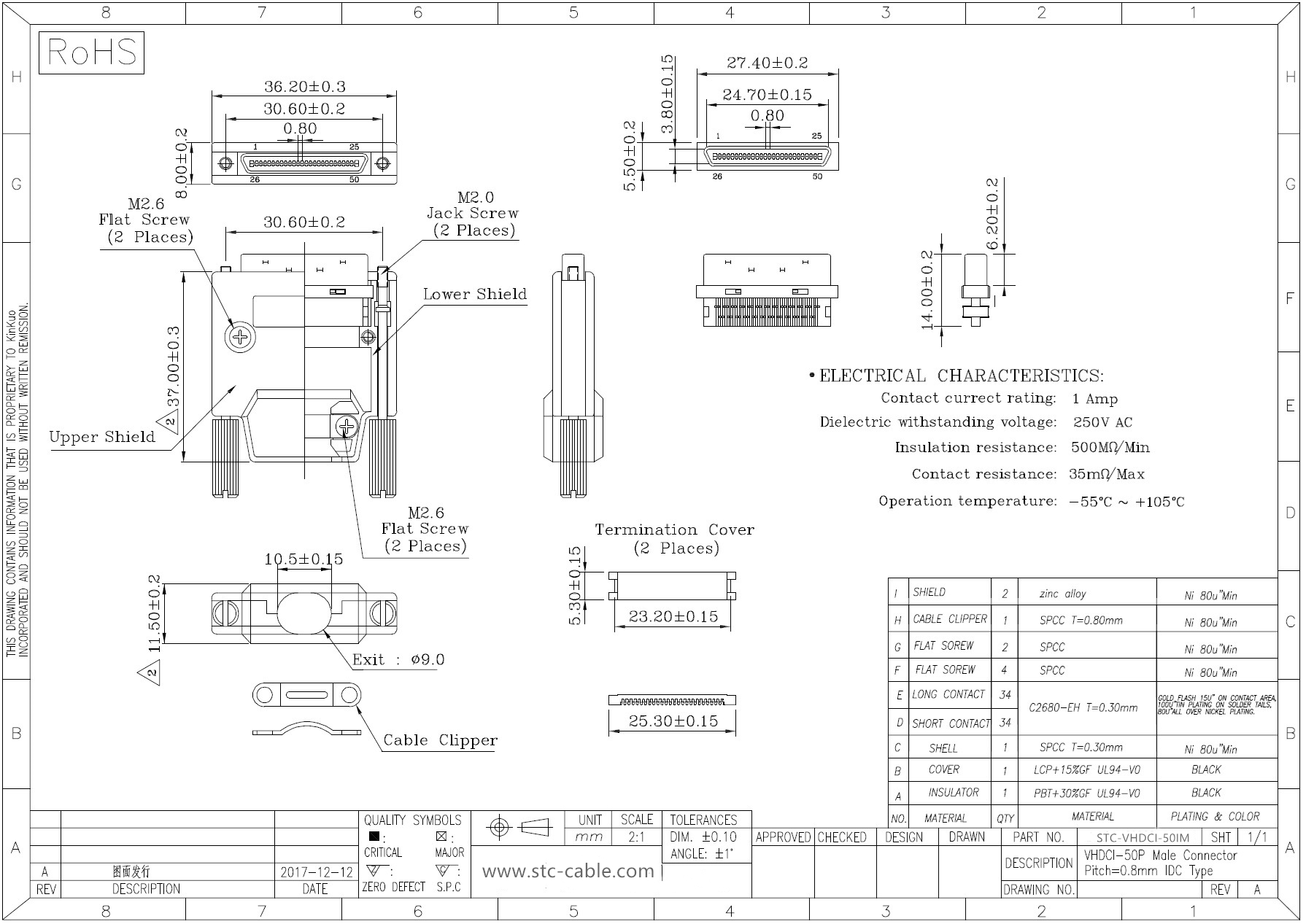

VHDCI 50Pin Male connector pitch=0.8mm IDC Type Ultra Thin VHDCI 50 Pin male connector for cable.

50-Pin VHDCI Connector, 2A, Slimline, Male, IDC, With Backshell.

This connector is designed to terminate on discrete wire at 30 AWG or .048 inch insulation OD.

A special tool is recommended for crimping but this can be crimped carefully with a generic press.We don't sell the tool that's designed for this connector.

The hood for this connector is . This connector is used mostly on Ultra Wide SCSI devices, to see more products with this connector.
