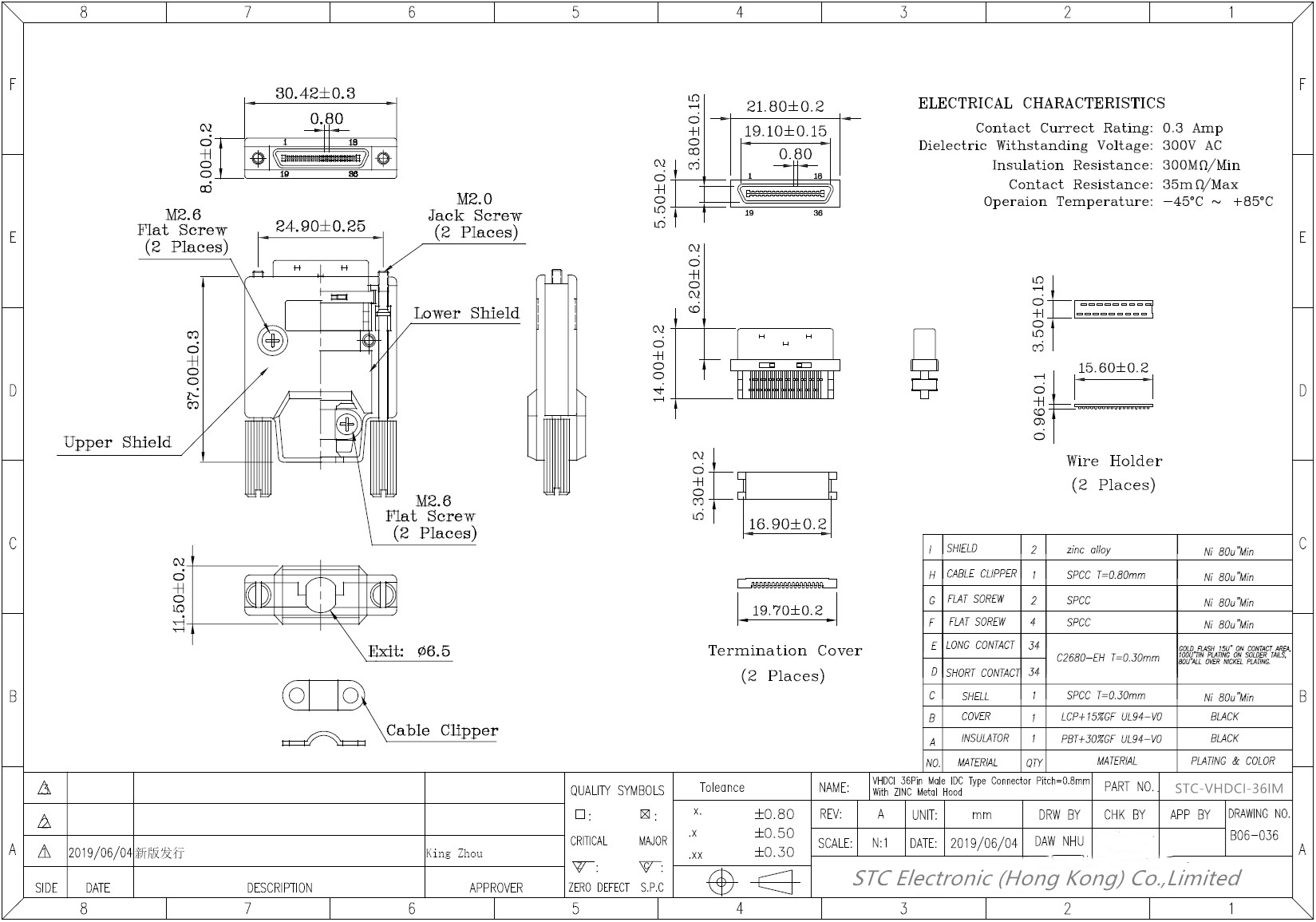

VHDCI 36 Pin Male IDC Type Connector

Product Detail

Technical Specifications
Warranty Information
Part number STC-VHDCI-36IM Warranty 3-year
Hardware
Connector Type Solder/M2 screwlocks male Slimline (IDC) Connector Plating Gold
Performance
Power Delivery 30V/2A
Application
Industrial Equipment
Environmental standards
RoHS Compliant
Specification Detail
Terminal Copper alloy,Contact area plated 1u" Shell SPCC,Plated Ni Housing PBT +30% G/F Cover LCP + 30% G/F HOOD Zinc Metal Color Black
Electrical Characteristics
a) Contact Currect Rating: 0.3 Amp b) Dielectric WithstandingVoltage:500V AC c) Insulation Resistance: 500MΩ/Min d) Contact Resistance: 35mΩ/Max e) Operaion Temperature: -20℃～+85℃
What's in the Box
VHDCI 36Pin Male connector pitch=0.8mm IDC Type Ultra Thin VHDCI 36 Pin male connector for cable.
Overview
36-Pin VHDCI Connector, 2A, Slimline, Male, IDC, With Backshell. This connector is designed to terminate on discrete wire at 30 AWG or .048 inch insulation OD. A special tool is recommended for crimping but this can be crimped carefully with a generic press.We don't sell the tool that's designed for this connector. The hood for this connector is . This connector is used mostly on Ultra Wide SCSI devices, to see more products with this connector.
