SCSI HPDB 50 Pin Female Right Angle DIP Type Connector
Applications:
- SCSI-2 50-Pin Female HPDB Right-Angle DIP Connector.
- DIP PCB Termination.
- 30VDC Voltage Rating.
- 2A Current Rating.
Product Detail
Product Tags
| Technical Specifications |
| Warranty Information |
| Part number STC-HPDB-50RF
Warranty 3-year |
| Hardware |
| Connector Type DIP
Connector Plating Gold |
| Performance |
| Power Delivery 30V/2A |
| Application |
| Industrial Equipment |
| Environmental standards |
| RoHS Compliant |
| Specification Detail |
| Terminal Copper alloy, Contact area plated 1u"
Shell SPCC, Plated Ni Housing PBT +30% G/F Black Cover LCP + 30% G/F NUT Copper Color Black |
| Electrical Characteristics |
| a) Contact Current Rating: 0.3 Amp
b) Dielectric Withstanding Voltage:500V AC c) Insulation Resistance: 500MΩ/Min d) Contact Resistance: 35mΩ/Max e) Operaion Temperature: -20℃～+85℃ |
| What's in the Box |

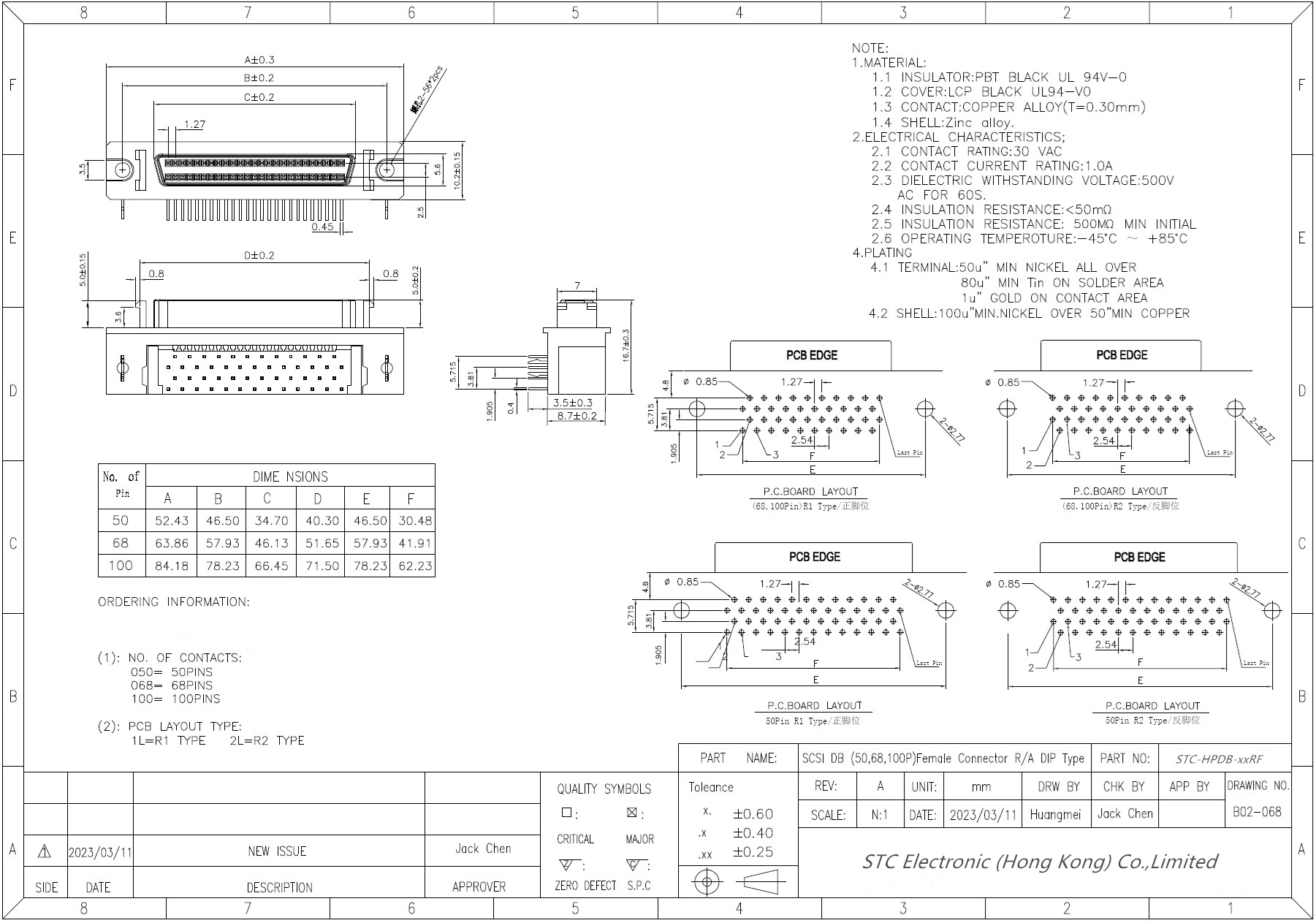

HPDB SCSI 50 Pin female connector pitch=1.27mm 90 degree right angle dip Type, HPDB SCSI-2 50 Pin female connector for PCB.
|
| Overview |
HPDB SCSI 50 Pin 1.27mm Female HPDB SCSI-2 50 Pin right angle Connector, SCSI 50 pin Socket connector for PCBA.
|
