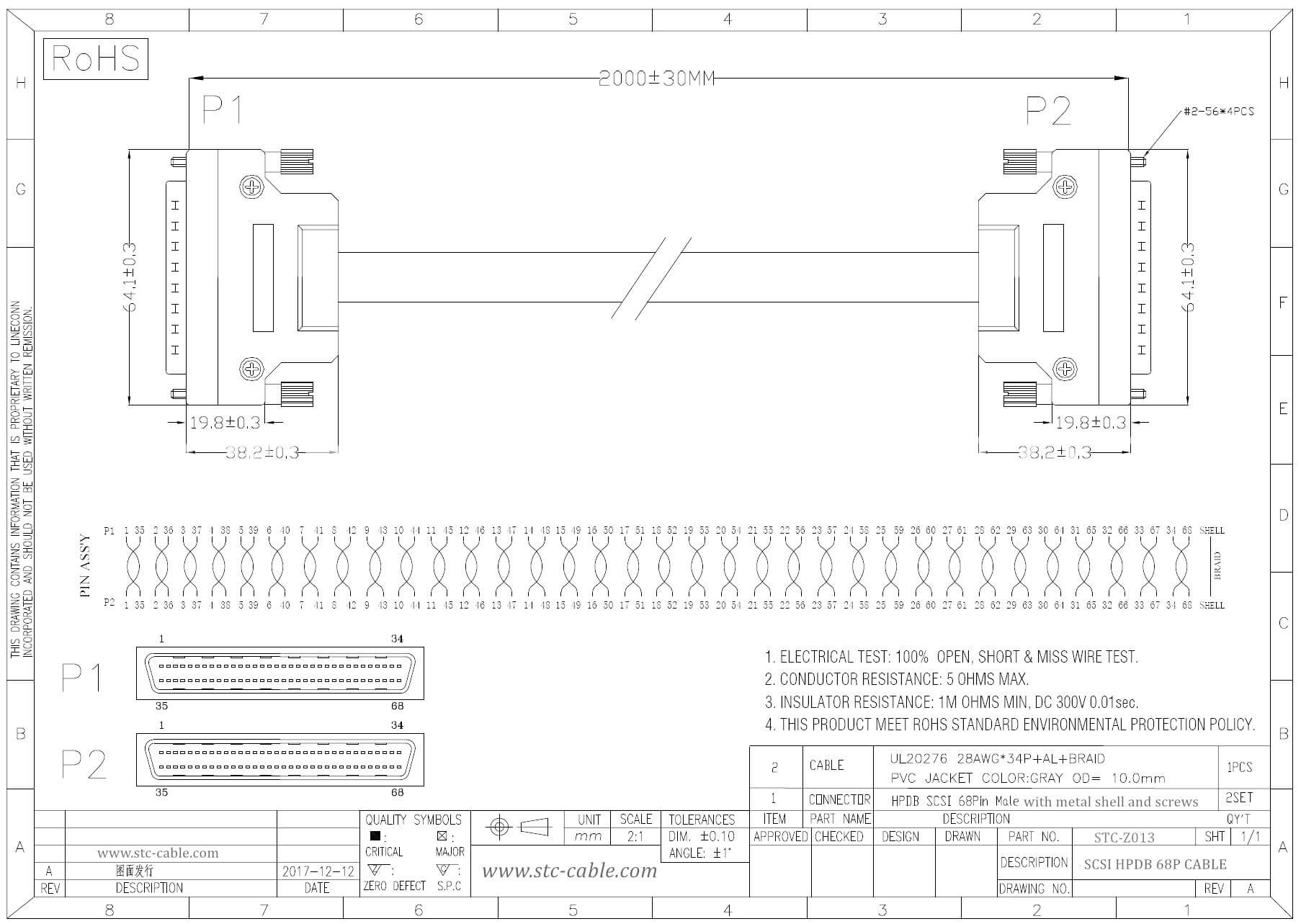

SCSI 3 Half-Pitch DSUB (HPDSUB) 68-Pin Cables with metal shell and screws

1) Wired straight through for extending serial devices/peripherals.

2) 360-degree fully shielded for protection against EMI/RFI.

3) Gold-plated contacts provide reliable connections with repeated mating cycles.

4) We could according to the customers' design specs make wire harnesses.

The LVD SCSI transfer rates can be up to 160 MB/sec with LVD SCSI, under optimal conditions (good quality SCSI card, LVD-compliant cabling, and proper termination). The HPDB 68-pin connector is used on peripheral devices such as scanners and external storage devices but is also found on the Ultra SCSI host cards. Use these fast-performing SCSI 3 cables to connect your peripherals either to a SCSI 3 host controller or to each other.

Advantage

1> High-quality pure copper twisted pair shielded cable.

2> Three layers of shielding anti-interference

3> Imported connectors are more reliable.

4> LVD (low-voltage differential) SCSI provides higher bandwidth and higher transmission rate.

5> Double-shielded conductor reduces EMI/RFI interference to provide better performance

Application

DESIGNED TO CONNECT SCSI-3 PERIPHERALS SUCH AS PRINTERS, SCANNERS, OR OTHER EXTERNAL STORAGE DEVICES WITH HPDB68 CONNECTOR.

General Description

Use these cables to interconnect equipment that utilizes 68-pin HP DSUB (Half-Pitch DSUB) connectors. These attractive cables feature 68-pin Male connectors on each end, a metal shell with screws ends with strain reliefs, twisted pair wiring, and a shielded cable jacket. Thumbscrews secure the cable to the mating connector. We stock several cable lengths.

Note:

The connector used on this product goes by several different names, including Half-Pitch DSUB, HPDSUB, HPDB68, Micro DB68, .050 DSUB, Amplimite .050 Series, 0.050 D-Type, HD68, SCSI, and SCSI III. If you are uncertain which connector you have, please contact us.
