RS232 Serial D-sub 9Pin Male to Female db 9pin Molded Cable

RS232 Serial D-sub 9Pin Male to Female db 9pin Molded Cable

Applications:

  • DB9 M/F extension cable is fully shielded to protect against EMI (electromagnetic interference) or RFI (radio frequency interference).
  • DB9 cable adopts black PVC molded and injection molded shell, which eliminates heavy load strain and makes it strong and reliable.
  • DB9 male and female connectors adopt gold-plated PIN, good contact, stable signal transmission, and reduced loss.

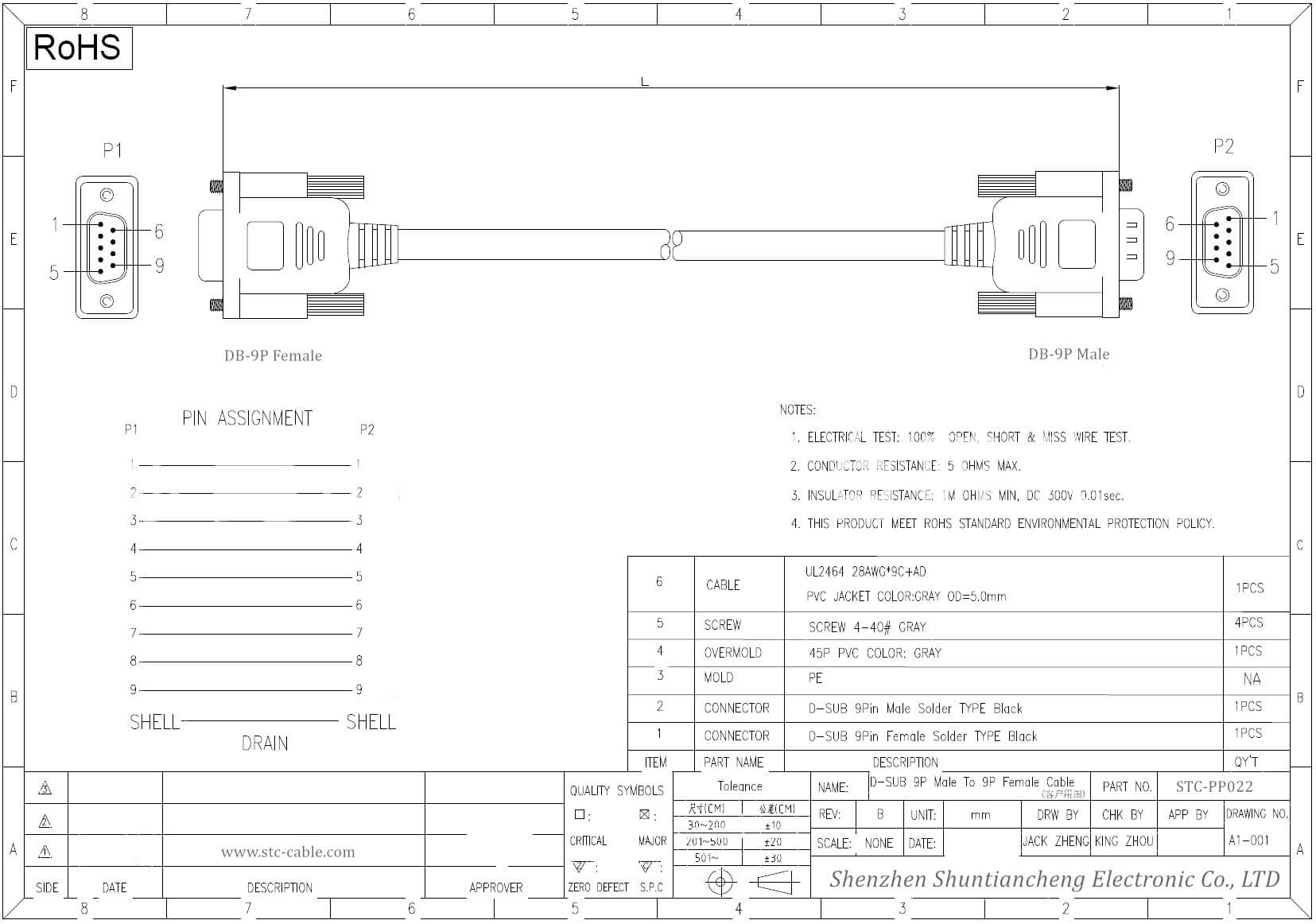

  • D-SUB 9 pin male to female extension cable, 9-core fully connected, It is pin-to-pin wired as a DE9 rs232 Straight Through COM cord (pinout:1-1, 2-2, 3-3, 4-4,……, 8-8, 9-9, G-G) color: black brown red orange yellow
  • DB9 serial adapter connects PC laptops to some older RS232/RS485 equipment such as scanners, modems, printers, plotters, cameras, bar code/embroidery machines, touch screens, microcontrollers, and factory test equipment.


Product Detail

Product Tags

Technical Specifications
Warranty Information
Part number                                                                  STC-PP022

Warranty                                                                       3- year

Hardware
Connector Plating                                                         Nickel/Gold
Connectors
Connector A                                                                  1 - DB-9 (9 pins, D-Sub) Male

Connector B                                                                  1 - DB-9 (9 pins, D-Sub) Female

Physical Characteristics
Cable Length                                                                1/1.5/3/5m or Customized

Color                                                                             Black/Gray

Connector Style                                                            Straight

Product Weight                                                             0.10kg

Wire Gauge                                                                  UL2464 28AWG*9C, OD=5.0mm

Packaging Information
Package Quantity                                                         1Shipping (Package)

Weight                                                                          0.11kg

What's in the Box

RS232 Serial D-sub 9Pin Male to Female DB 9pin Molded extension Cable For Scanner, Modem, Printer, Plotter, Camera.

Overview

DB9 9 Pin Serial male to female extension cable



1> DB9 serial cable RS232 male-to-female 9-pin data extension cable is used to extend the connection between different types of devices, no need to install drivers, simple to use.

2> DB9 serial cable allows you to flexibly expand computer peripherals where needed, each extension cable is fully shielded to prevent unnecessary EMI/RFI interference, Connector thumbscrews provide quick and easy connection every time.

3> The DB9 serial cable uses high-quality nickel-plated connectors and plugs and a high-quality PVC injection housing, With wear-resistant, durable, smooth transmission and other functions.

4> Suitable for connection and signal transmission of computers and tax control machines, CNC machine tools, PDAs, set-top boxes, and other serial devices.



https://www.stc-cable.com/rs232-serial-d-sub-9pin-male-to-female-db-9pin-molded-cable.html



DB9 serial cable is used to connect the PC and device with the DB9 serial port. Male to Female cable is typically used to extend your existing male to Male cable.



General Description

These are extender cables for any device that uses a DB-9 connector. They are available in a variety of lengths and genders. All nine pins are extended, and the wiring is straight-through (pin 1 to pin 1, 2 to 2, ...) including a foil shield around the cable and connecting the shells.

The conductors are 28AWG wire. These cables are beige or black.
