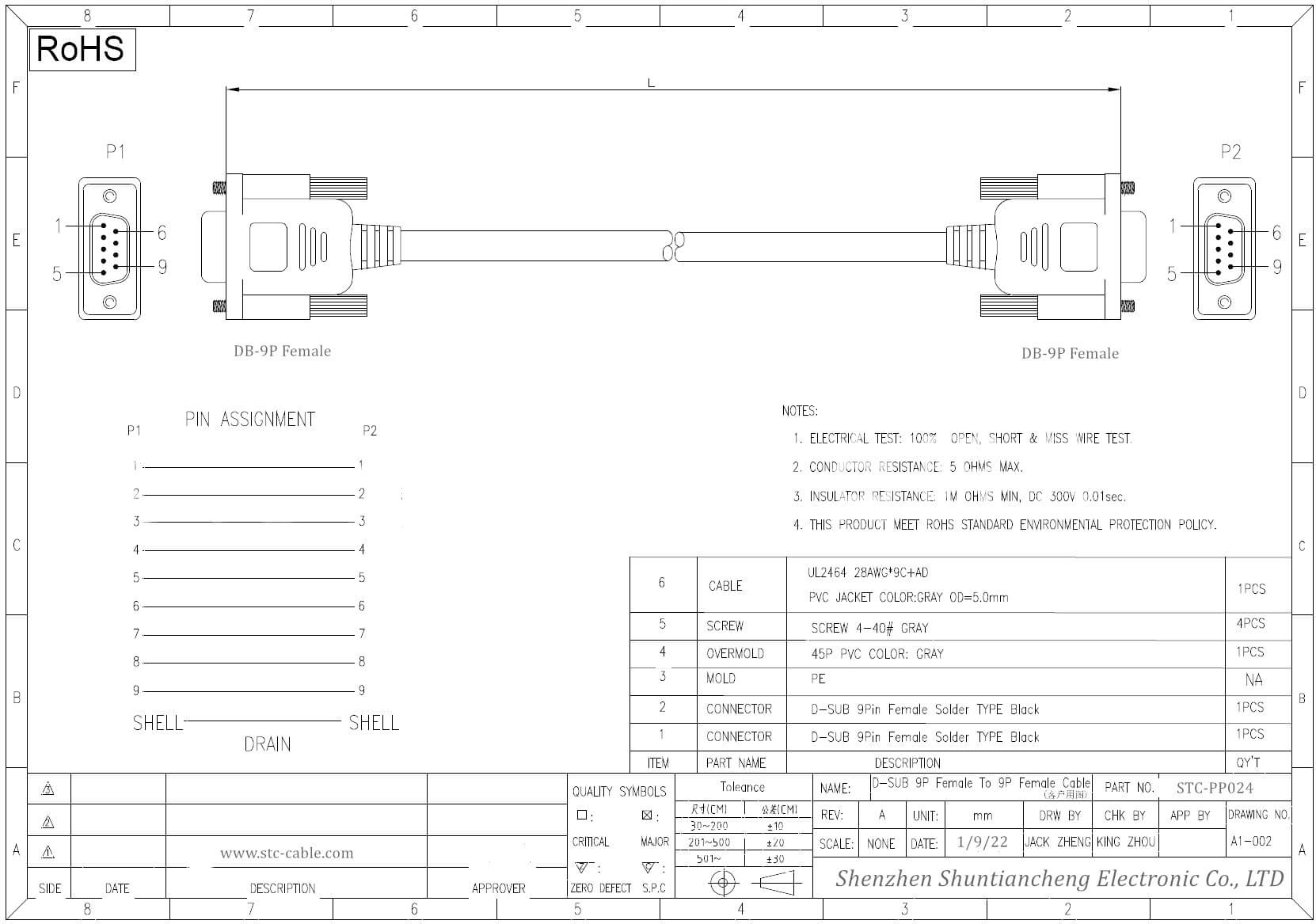

RS232 Serial D-sub 9Pin Female to Female DB 9pin Molded Cable

Applications:

DB9 F/F cable is fully shielded to protect against EMI (electromagnetic interference) or RFI (radio frequency interference).
Fully molded connectors with thumbscrew provide you with a quick and easy connection every time.
DB9 female and female connectors adopt gold-plated PIN, good contact, stable signal transmission, and reduced loss.
All 9 lines are wired straight through pin-to-pin for ease of compatibility.
DB9 serial adapter connects PC laptops to some older RS232C equipment such as scanners, modems, printers, plotters, cameras, bar code/embroidery machines, touch screens, microcontrollers, factory test equipment

Product Detail

Product Tags

Technical Specifications
Warranty Information
Part number STC-PP024 Warranty 3- Years
Hardware
Connector Plating Nickel/Gold
Connectors
Connector A 1 - DB-9 (9 pin, D-Sub) Female Connector B 1 - DB-9 (9 pin, D-Sub) Female
Physical Characteristics
Cable Length 1/1.5/3/5m or Customized Color Black/Gray Connector Style Straight Product Weight 0.10kg Wire Gauge UL2464 28AWG*9C, OD=5.0mm
Packaging Information
Package Quantity 1Shipping (Package) Weight 0.11kg
What's in the Box
RS232 Serial D-sub 9Pin Female-to-Female DB 9pin Molded Cable For Scanner, Modem, Printer, Plotter, Camera.
Overview
DB9 9 Pin Serial female to female extension cable 1> DB9 serial cable RS232 female to female 9-pin data cable is used to extend the connection between different types of devices, no need to install drivers, simple to use. 2> DB9 serial cable allows you to flexibly expand computer peripherals where needed, each extension cable is fully shielded to prevent unnecessary EMI/RFI interference, Connector thumbscrews provide quick and easy connection every time. 3> The DB9 serial cable uses high-quality nickel-plated connectors and plugs and a high-quality PVC injection housing, With wear-resistant, durable, smooth transmission and other functions. 4> Suitable for connection and signal transmission of computers and tax control machines, CNC machine tools, PDAs, set-top boxes, and other serial devices. DB9 serial cable is used to connect the PC and device with the DB9 serial port. Female-to-female cable is typically used to extend your existing male-to-male cable. General Description These are extender cables for any device that uses a DB-9 connector. They are available in a variety of lengths and genders. All nine pins are extended, and the wiring is straight-through (pin 1 to pin 1, 2 to 2, ...) including a foil shield around the cable and connecting the shells. The conductors are 28AWG wire. These cables are beige. Product Details 1> Available in Male-Female, Male-Male, and Female-Female 2> All pins wired 1:1 (e.g. pin 1 to pin 1, pin 2 to pin 2, etc.) 3> 28 AWG conductors 4> Foil shielded
