Professional China China Mini USB2.0 to Esata / USB Gift (HE-2021)

Professional China China Mini USB2.0 to Esata / USB Gift (HE-2021)

Applications:

  • USB 3.0 to Micro SATA 7 + 9 pin connector cable;
  • Suitable for 1.8″ SATA Hard Drive;
  • USB 3.0 interface, support hot plug plug and play data transfer rates up to 5Gbps;
  • Backwardly compatible with USB 2.0/1.0;
  • Portable size, easy and convenient to carry and use
  • Operating System Support: Win 98,Win ME,Win XP,Win 2000,Vista, Win 7, Linux, MAC
  • Length: 50CM


Product Detail

Product Tags

Our aim should be to deliver high-quality solutions at aggressive rates, and top-notch service to prospects around the globe. We have been ISO9001, CE, and GS certified and strictly adhere to their good quality specifications for Professional China China Mini USB2.0 to Esata / USB Gift (HE-2021), Our main objectives are to deliver our clients worldwide with good quality, competitive cost, happy delivery and superb providers.
Our aim should be to deliver high-quality solutions at aggressive rates, and top-notch service to prospects around the globe. We have been ISO9001, CE, and GS certified and strictly adhere to their good quality specifications for China Sata Gear, Interface Adapter, High output volume, top quality, timely delivery and your satisfaction are guaranteed. We welcome all inquiries and comments. If you are interested in any of our products or have an OEM order to fulfill, remember to feel free to contact us now. Working with us will save you money and time.

Technical Specifications
Warranty Information
Part number                                                                STC-BB028

Warranty                                                                     2-Years

Hardware
Bus Type                                                                     USB 3.0

Chipset ID                                                                   ASMedia - ASM1153E

Compatible Drive Types                                              SATA

Drive Size                                                                    1.8in

Fan(s)                                                                          No

Interface                                                                      USB 3.0

Number of Drives                                                        1

Performance
Type and Rate                                                             USB 3.0 - 5 Gbit/sSATA III (6 Gbps)

General Specifications                                                Max power of the attached drive is 900 mA

Max Drive Capacity                                                     Currently tested with up to 2TB 5900 RPM hard drives

UASP Support                                                             Yes

Connector(s)
Connector A                                                                 1 -SATA Data & Power Combo (7+7+2 pin) Receptacle

Connector B                                                                 1 -USB Type-A (9 pin) USB 3.0 Male

Software
OS Compatibility                                                           OS independent; No software or drivers required
Special Notes / Requirements
Cable will work only with 1.8″ SATA drives2.5″/3.5″/5.25″ drives are not supported
Power
Power Source                                                               USB-Powered
Environmental
Humidity                                                                        40%-85%RH

Operating Temperature                                                 0°C to 60°C (32°F to 140°F)

Storage Temperature                                                  -10°C to 70°C (14°F to 158°F)

Physical Characteristics
Cable Length                                                                9.7 in [500 mm]

Color                                                                             Black

Connector Style                                                            Straight to Straight

Product Weight                                                             1.4 oz [41 g]

Wire Gauge                                                                   28 AWG

Packaging Information
Package Quantity                                                         1Shipping (Package)

Weight                                                                           2.2 oz [61 g]

What’s in the Box

USB 3.0 to Micro SATA 7+9 16Pin Cable External Hard Drive Converter

Overview

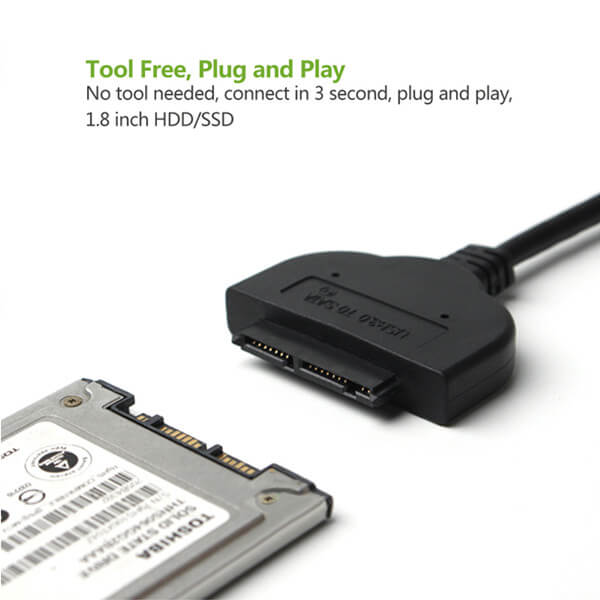

USB3.0 to Micro SATA 16Pin  Hard Drive converter

The STC-BB005 USB 3.0 to Micro SATA 7+9 16Pin Cable External Hard Drive Converter allows you to contact any standard 1.8"  SATA hard drive to your computer via USB 3.0 port at speed up to 5Gbps. It's ideal for you to backup files or upgrade your notebook hard drive.

The cable supports UASP, allowing for transfer speeds up to 70% faster than conventional USB 3.0, which enables you to utilize the full potential of your SATA III SSD/HDD, when paired with a UASP-enabled host controller. See our UASP testing results below for further details.

This portable adapter features a lightweight design with no external power required, for easy storage in a laptop bag or carrying case. Plus, the cable-style adapter makes it easy to swap between hard drives without having to install your drives into an enclosure. Perfect for easy drive access for data migration, drive cloning and data backup applications.

The STC-BB028 is backed by a Stccable.com 2-year warranty and free lifetime technical support.



USB SATA Adapter



Improved Performance with UASP

UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

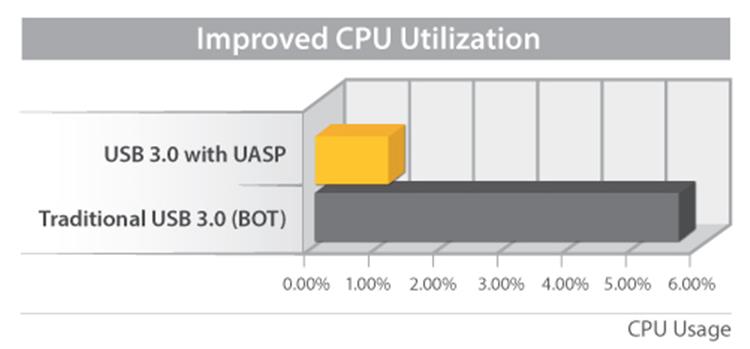

At the same peak in testing, UASP also shows an 80% reduction in required processor resources

Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.



https://www.stc-cable.com/usb-3-0-to-2-5-sata-iii-hard-drive-adapter-cable-w-uasp-sata-to-usb-3-0-converter-for-ssd-hdd.html



The Stccabe.com Advantage
  • Maximum portability with cable-style adapter, and no external power adapter required
  • Time-saving file transfers, up to 70% faster than traditional USB 3.0 when used with a UASP-supported host
  • Take advantage of USB 3.0-enabled laptops or desktops with UASP for faster transfer speeds
  • Create an external storage solution on the go, for desktops, laptops or Ultrabook™ computers
  • Access any 1.8″ hard drive or solid state drive from any USB enabled computer, for data migration or drive cloning
  • Back up important data to an external storage device
  • Retrieve data from an old SATA drive
  • Use with an SSD drive to externally upgrade your laptop hard drive via USB 3.0
