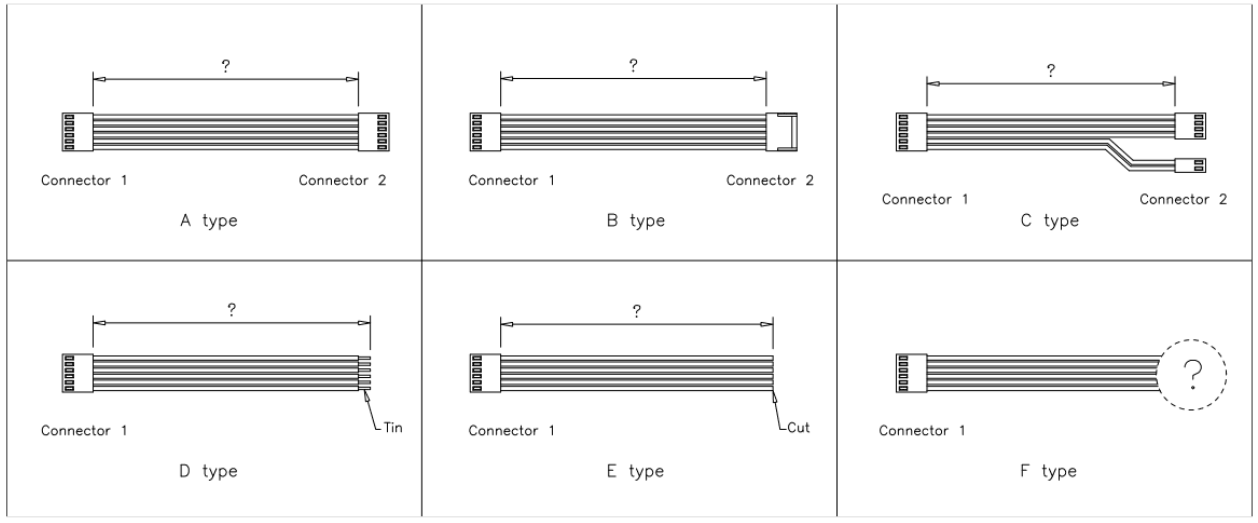

Pitch 2.54mm Molex 2510 Type Wire To Board Connector wire harness cable

Signal application KK 254 connectors are ideal for use in industries such as automotive, medical, and consumer, delivering up to 5.0A and 250V per circuit in a 2.54mm centerline pitch. Dual-cantilever terminals offer a square-post contact area that interfaces with the male pin header through a spring-like contact. Available in 22 to 30 AWG wire, an optional box-style dual-cantilevered terminal is optimal for high-vibration applications.

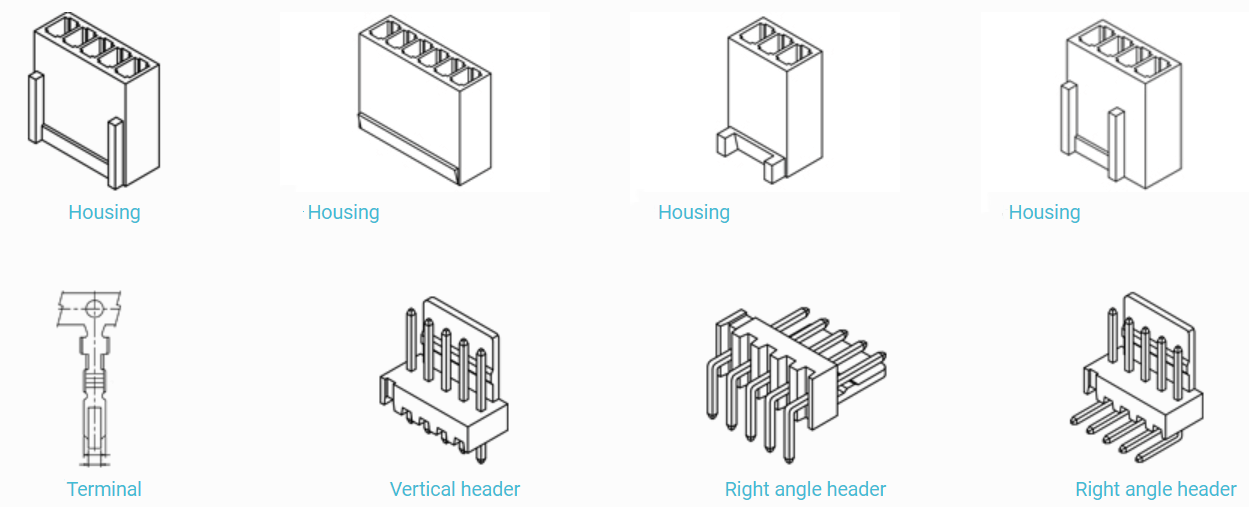

Headers are available in single-row, unshrouded, through-hole PCB termination styles in solid and breakaway varieties. A friction lock is available for a more secure mating interface. KK 254 PCB receptacles are available in right-angle, top-entry, and board-through configurations. Housings have built-in polarization features and are available in UL 94V-2 and UL 94V-0 nylons.

Dual-cantilever terminal

Ensure reliable electrical contact and performance with low insertion force

Polarizing header back walls, polarizing ribs on receptacles, and polarizing pegs

Prevent accidental mids-mating during assembly

Optional kinked PC tail

Maintains header positioning during soldering

Friction-lock headers and receptacles

Ensure secure mating and prevent accidental disengagement

KK RPC headers are offered in high-temperature nylon and reflow matte-tin plating

Allow for 260ºC wave and reflow solder processing

Tape-and-reel packaging with pick-and-place caps available

Enables highly automated termination processing and accurate PCB placement
