Pitch 2.50mm JST XH With Lock Type Wire To Board Connector wire harness

Pitch 2.50mm JST XH With Lock Type Wire To Board Connector wire harness

Applications:

  • Cable Length & Termination customized
  • Pitch: 2.50mm with locking
  • pins: 2 to 16 positions
  • Material: PA66 (PA66) UL94V-2
  • Contact: Phosphor Bronze
  • Finish: Tin 50u” over 100u” nickel
  • Current rating: 3A (AWG #22 to #28)
  • Voltage rating: 250V AC, DC


Product Detail

Product Tags

Technical Specifications
Specifications
Series:                                                                          STC-002502001 Series

Contact Pitch:                                                               2.50mm/with locking

No. of Contacts:                                                            2 to 16 positions

Current:                                                                        3A (AWG #22 to #28)

Compatible:                                                                  Cross JST-XA Connector Series

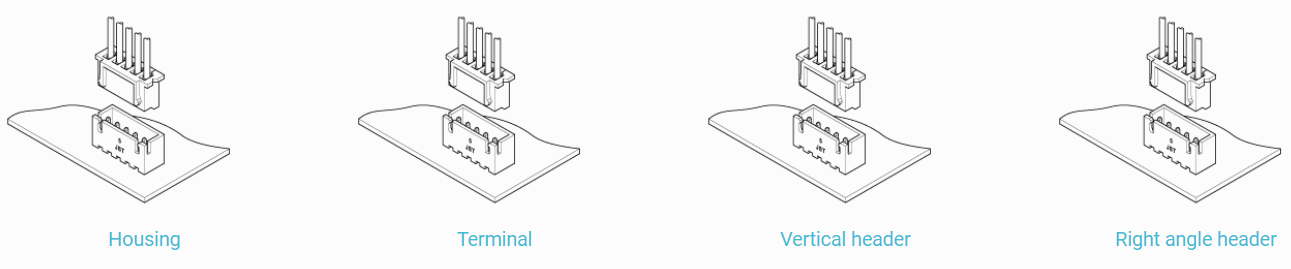

Select Components
 https://www.stc-cable.com/pitch-2-50mm-jst-xh-with-lock-type-wire-to-board-connector-wire-harness.html

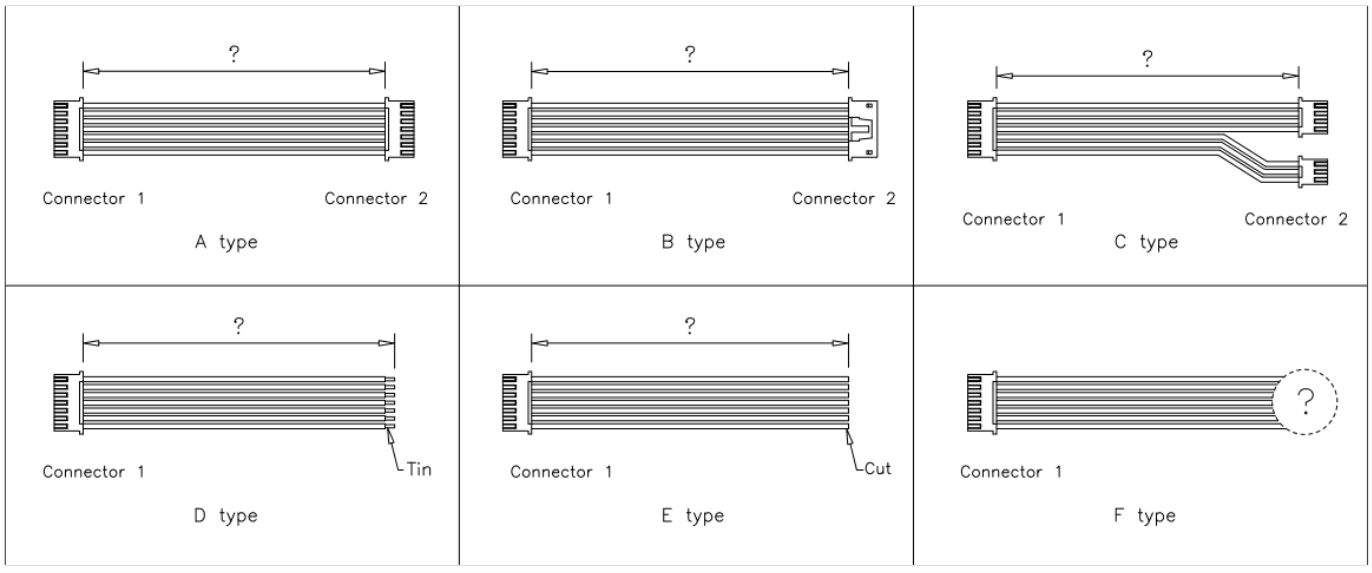

Cable Assemblies Refer
https://www.stc-cable.com/pitch-2-50mm-jst-xh-with-lock-type-wire-to-board-connector-wire-harness.html
General Specification
Current Rating:                                                              3A

Voltage Rating:                                                              250V

Temperature Range:                                                      -20°C~+85°C

Contact Resistance:                                                      20m Omega Max

Insulation Resistance:                                                   1000M Omega Min

Withstanding Voltage:                                                   1000V AC/minute

Overview

Pitch 2.50mm With Locking JST-XA type wire to board connector wire harness



A secure locking device prevents accidental disconnection.



The header wafer is made of solder crack preventive material, glass-filled PA66 nylon. Header pins are round and reflow-treated, which provides low insertion force.



Shrouded headers on radial tape are also available. Headers with polarizing bosses are also available.



Features



  • Locking device



The housing has a locking device to securely hold the header, preventing accidental disconnection because of external forces that might result from the routing of wires during assembly process or of vibration.



  • Solder crack preventive material



Header wafer is made of glass-filled PA66 nylon thus effective against the solder crack problem.



  • Low insertion force



Header pins are round and reflow-treated, which provides low insertion force.



  • Insertion guide mechanism



Header has housing insertion guides for easy and secure insertion.



  • Applicable to automatic board mounting machine



Radial taped or stick-mounted headers are also available for automatic component insertion machine.



  • Polarizing boss



Headers with polarizing bosses are available.



  • RoHS Compliant





Advantages

1>Cheap.

2>Solid connection.

3>Custom cable length.

4>Custom cable color.

5>Easy to connect/disconnect hardware.

6>Any combination of male/female connectors.



Application

1>Connect sensors to your Arduino board.

2>Connect a breadboard to your Arduino board.

3>Connect other hardware PCBs.

4>Wire hardware in a final product.

5>Others.
