Pitch 2.50mm JST XH Connector Wire harness cable

Contact Pitch:                                                               2.50mm

No. of Contacts:                                                            2 to 16 positions

Current:                                                                        3A (AWG #22 to #28)

Compatible:                                                                  Cross JST-XH Connector Series

Voltage Rating:                                                              250V

Temperature Range:                                                      -20°C~+85°C

Contact Resistance:                                                      20m Omega Max

Insulation Resistance:                                                   1000M Omega Min

Withstanding Voltage:                                                   1000V AC/minute

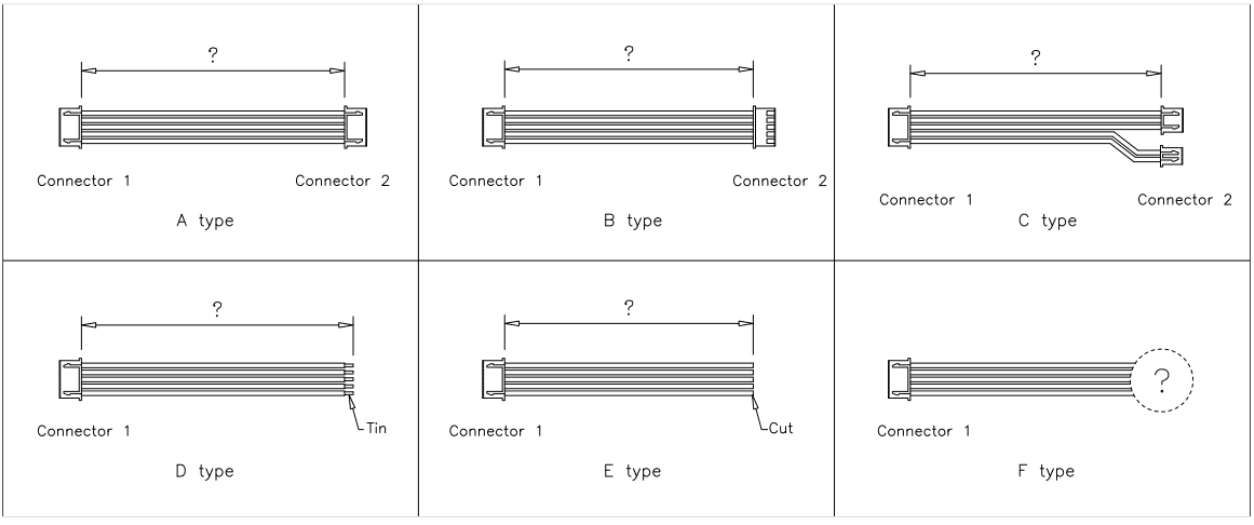

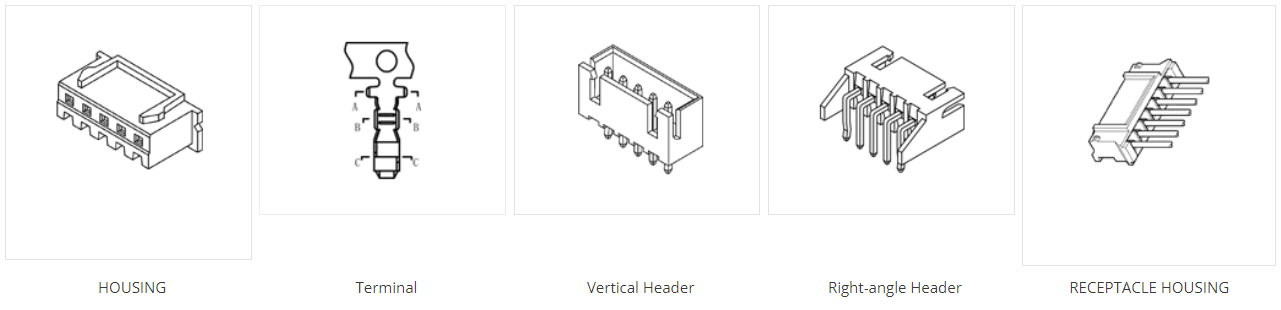

Pitch 2.50mm JST-XH type wire to board connector wire harness

1. Peak temperature: 250℃ max.

2. Heating area: 230℃ min. for less than 60 seconds

3. Preheating area: 170℃ to 190℃ for 60 to 120 seconds

4. Number of times: no more than 2 times * Measurement is conducted at the contact lead part Soldering results may change depending on conditions such as solder paste type, manufacturer, PCB size, and other soldering materials. Please determine all mounting conditions before

Electrical Specification:
Rated Voltage:  250V AC.DC
Rated Current:  3A
Contact Resistance:   0.02 Ohm max
Insulation Resistance:   1000M Ohm min
Withstand voltage:   1000V AC/MIN
Temperature range for usage: -25ºC~+85ºC
P.C board thickness: 0.8~1.6mm

Material:
Housing: PA66 (PA66) UL94V-2
Contacts: Brass or Phosphor Bronze
Plating: Tin 50u" over 100u" nickel
Wire range: AWG#30~#22
Color: White

1>Cheap.

2>Solid connection.

3>Custom cable length.

4>Custom cable color.

5>Easy to connect/disconnect hardware.

6>Any combination of male/female connectors.

1>Connect sensors to your Arduino board.

2>Connect a breadboard to your Arduino board.

3>Connect other hardware PCBs.

4>Wire hardware in a final product.

5>Others.
