Pitch 2.0mm DF11 Connector wire harness

Contact Pitch:                                                               2.00mm

No. of Contacts:                                                            2*2 to 2*15 positions

Current:                                                                        2A (AWG #22 to #28)

Compatible:                                                                  Cross Hirose DF11 Connector Series

Voltage Rating:                                                              250V

Temperature Range:                                                      -20°C~+85°C

Contact Resistance:                                                      20m Omega Max

Insulation Resistance:                                                   1000M Omega Min

Withstanding Voltage:                                                   1000V AC/minute

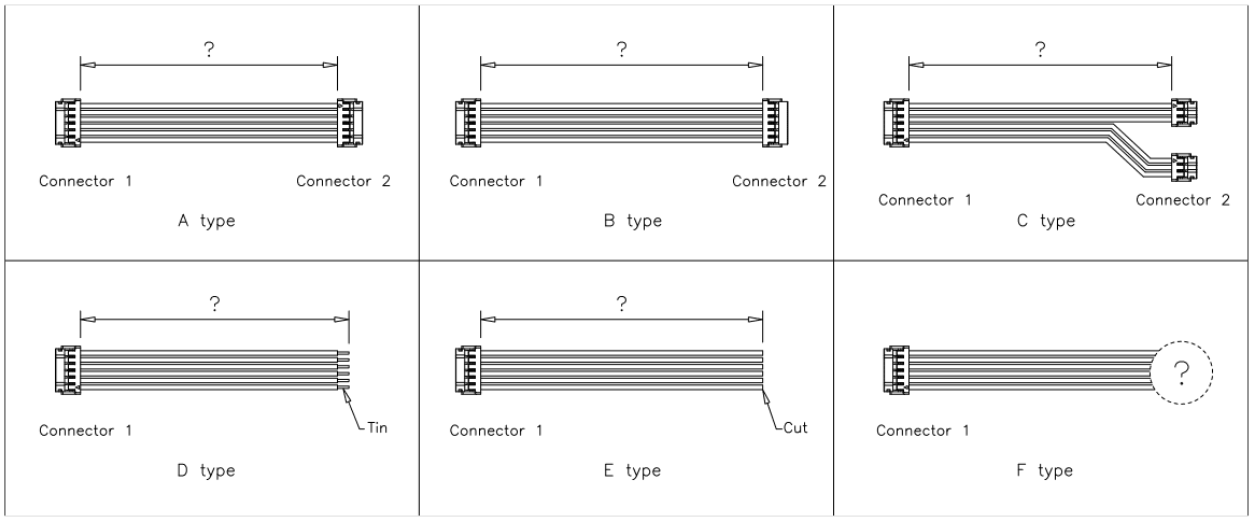

Pitch 2.00mm HRS DF11 type wire to board connector wire harness

1. Peak temperature: 250℃ max.

2. Heating area: 230℃ min. for less than 60 seconds

3. Preheating area : 170℃ to 190℃ for 60 to 120 seconds

4. Number of times: no more than 2 times * Measurement is conducted at the contact lead part Soldering results may change depending on conditions such as solder paste type, manufacturer, PCB size, and other soldering materials. Please determine all mounting conditions before

1. Space-saving on Board, Double row contact arrangement with 2mm pitch has been condensed within a 5mm width. Double the number of signals can be secured in the same space as a conventional 2mm single-row connector.

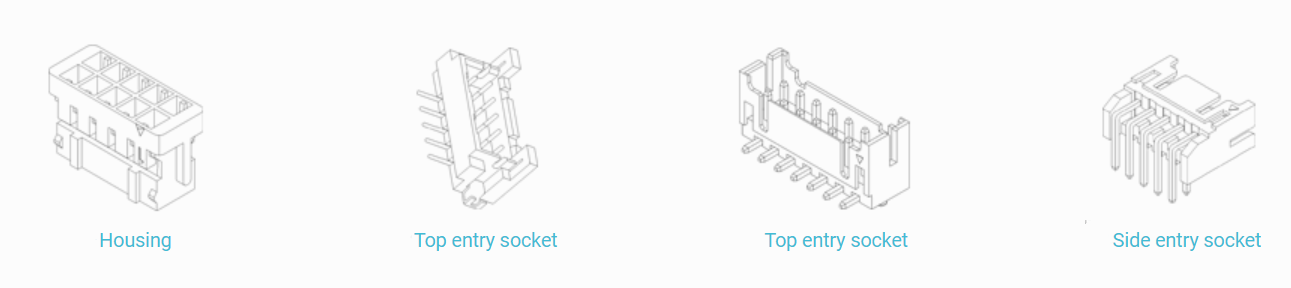

2. Wide Varieties, There are two types of connection methods: insulation displacement and crimping. Variations are available in cable-to-board, in-line, and board-to-board to expand PCB design freedom. Additionally, both gold and tin plating can be selected based on the application and SMT compatible products are also available.

3. Wide Applicable Wire Range, The double 2mm pitch rows are compact while enabling an applicable wire range of 22 to 30 AWG.

4. The IDC Type enables reduced assembly time, Since the DF11 insulation displace-mention allows double rows IDC with a single part, harnessing can be completed by machine connection alone

Note 1: This temperature profile is a recommended value.

Note 2: Up to 2 cycles of Reflow soldering are possible under the same conditions, provided that there is a return to normal temperature between the first and second cycle.

Note 3: The temperature profile indicates the board surface temperature at the point of contact with the connector terminals.

Note 4: Slight variations in the color of the plastic compounds do not affect the form, fit, or function of the connector

Business equipment such as copy machines, printers, and so on.
