What is a data and power SATA combination cable?

What is a data and power SATA combination cable?

A data and power SATA combination cable is a type of cable that integrates both the data transfer and power supply functions into a single connector. This kind of cable is designed to simplify the connection between SATA (Serial ATA) storage devices, such as hard drives (HDDs) and solid-state drives (SSDs), and the host system (like a computer or external enclosure) by combining the separate data and power connections into one.

Types of Data and Power SATA Combination Cables

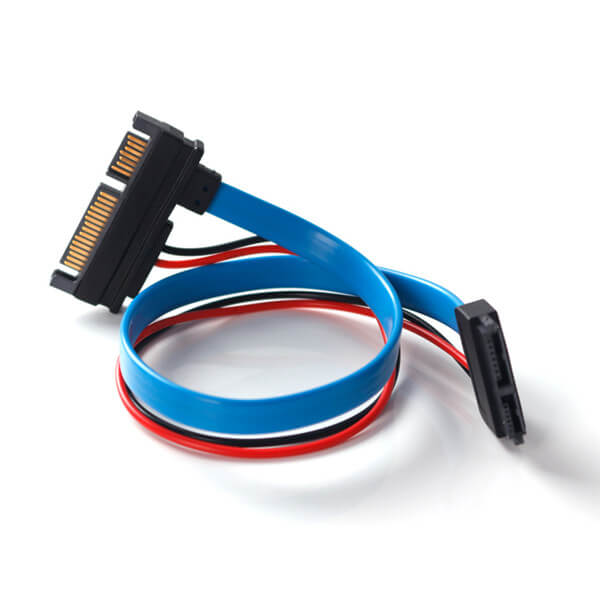

1. SATA 22-Pin Cable

Description: This cable is a specific type of combination cable that includes both data and power in a single 22-pin connector. The connector integrates the 7 pins used for data transfer and the 15 pins used for power delivery.

Usage: Often used in external hard drive enclosures and some compact or specialized devices where space is a constraint. It provides a neat and convenient way to connect both data and power through one interface.

2. Combination Cables in External Enclosures

Description: Many external HDD and SSD enclosures use a combination of SATA data and power cables to interface with the drive. These cables often come in proprietary forms or are integrated into the enclosure design.

Usage: Provides a single connection point for both data and power, reducing cable clutter and simplifying setup.

Advantages of Data and Power SATA Combination Cables

1. Reduced Cable Clutter: By combining data and power into a single cable, it reduces the number of cables needed, which can help in managing and organizing connections, especially in compact setups.

2. Simplified Design: Especially useful in external enclosures and some compact devices, where space is limited. It simplifies the design and connection process.

3. Convenience: Makes it easier to connect and disconnect devices, particularly when dealing with external hard drives or in situations where quick changes are needed.

How to Use a SATA 22-Pin Combination Cable?

1. Identify the Cable and Ports: Ensure you have a SATA 22-pin cable that is compatible with your drive and device. Locate the SATA 22-pin port on your HDD or SSD and the corresponding port on the external enclosure or adapter.

2. Connect the Cable to the Drive: Align the 22-pin connector with the port on the HDD or SSD. Insert the connector firmly until it is fully seated.

3. Connect the Cable to the Enclosure/Adapter: Align the other end of the 22-pin connector with the port on the external enclosure or adapter. Insert it securely.

4. Power and Test: If using an external enclosure, connect the enclosure to a power source if necessary and to your computer via the appropriate interface (such as USB). Verify that the drive is recognized by your system.

Summary

A data and power SATA combination cable, such as the SATA 22-pin cable, integrates both data and power connections into a single connector. It is used to simplify connections in compact or specialized setups, such as external hard drive enclosures or some internal drive configurations. This approach reduces cable clutter and makes it easier to connect and manage SATA storage devices.
