New product recommendation: PCIe 3.0 to 5-port SATA6G expansion card

Recently, STC released a 5-port SATA expansion card. The former connects 5 SATA interfaces through the PCIE slot of the host and supports up to 5 SSDs. This product is a well-established professional industrial control board manufacturer currently on the market. It promises five years of after-sales quality to users. The following is a detailed introduction to the PCI-E to 5-port SATA expansion card.

This universal expansion card will allow users to add 8 independent SATA6G interfaces to desktop computers or servers, and the data transmission rate of each port can reach 6Gbps. It adopts PCIe Gen3x1 line bandwidth design, supports 8 disk groups soft RAID, supports hot swapping, supports system boot disk, supports UEFI (Unified Extensible Firmware Interface), increases the heat sink design, and has high-speed and stable performance. It is widely used in servers, industrial computers, consumer electronics equipment, storage devices and NVR/DVR systems. It is a solution launched to solve users' external multi-disk storage needs.

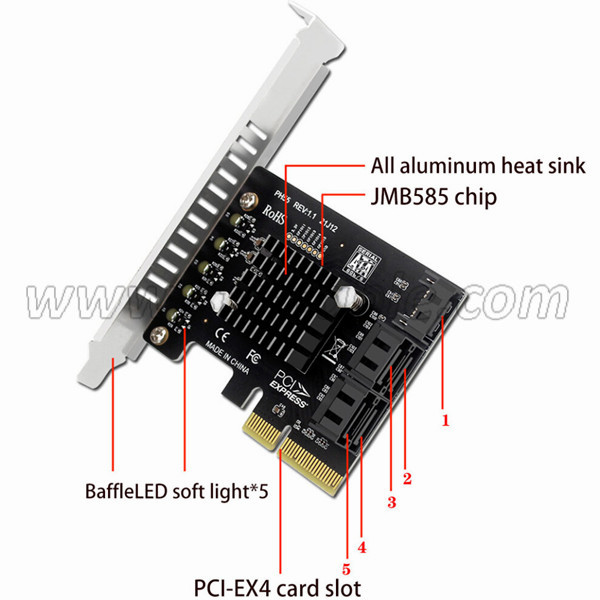

5 SATA interfaces

Equipped with 5 SATA interfaces, users only need to insert this card into the PCIE slot of the motherboard, and then connect SSD solid state drives or mechanical hard drives of 5 SATA interfaces through the SATA data cable at the same time. Supports hot swapping, system boot disk, and UEFI (Unified Extensible Firmware Interface).

PCIE 3.0 x4 bus bandwidth adopts PCIE3.0 bus bandwidth, and the data transmission speed is much faster than PCIE2.0. Each channel supports transfer rates of 2. 5Gb (250MB/s), 5Gb (500MB/s) or 8Gb (1GB/s).

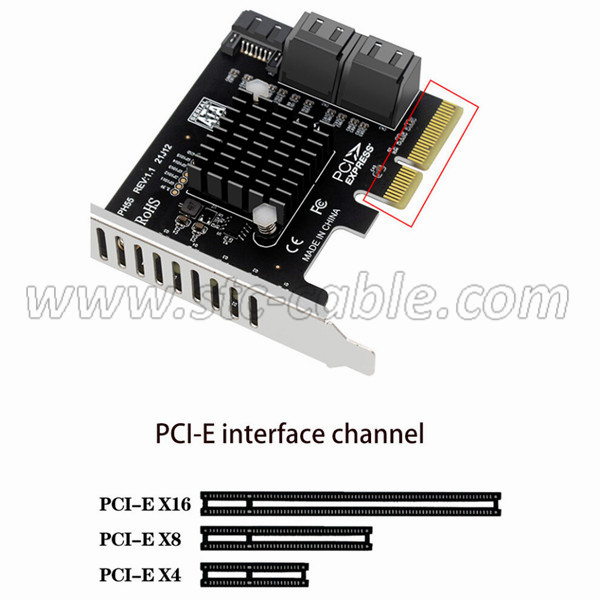

PCIE X4 design, suitable for PCI Express X4, X8, X16 slots. Not suitable for PCI slots. Supplied with short iron pieces, it can be used in both large and small chassis.

Wide range of applications

Mainly used in PC computer servers, industrial computers, consumer electronics equipment, storage equipment, and NVR/DVR systems.

System Requirements

Windows OS, Linux, MAC OS, PCI Express-enabled system with an available PCI Express slot

Package Contents

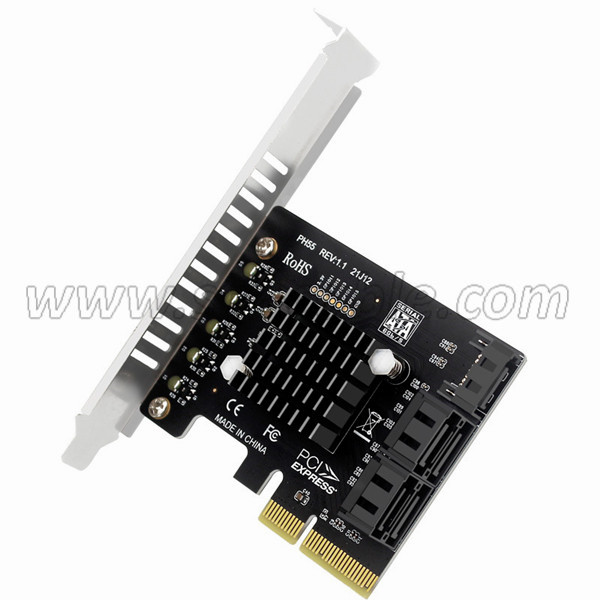

In addition to a PCIe 3.0 to 5-port SATA 6G expansion card, the accessory package also comes with a user manual, 5 SATA data cables, and a short iron piece. The above SATA expansion card uses black PCB board, and its thickness reaches the standard of motherboard or graphics card. The solder joints of various components are plump and even, and the gold finger part is pure and even in color. Users can buy with confidence as it promises a five-year warranty.
