New product recommendation: Industrial-grade PCIE to 8-port RS232 multi-serial card

What I recommend to you today is an industrial-grade PCIE to 8-port RS232 multi-serial card. This PCIE serial port card is an industrial-grade multi-port serial card, specially designed for industrial automation system manufacturing and system integration. It will allow users to add 8 RS232 serial ports to desktop computers or servers. The data transmission rate of each port can reach 921.6Kbps. It adopts interface electrostatic protection: two-way protection, interface 200W lightning surge protection, and maximum electrostatic protection 20KV. Widely used in a variety of serial devices, such as PC terminals, modems, printers, scanners, fingerprint readers, password keyboards, displays, etc. Supports 1U chassis, comes with short iron pieces, and can be used in both large and small chassis. Model: STC-PS0013

The PCIE x1 bus interface

adopts the PCIE x1 bus interface design and is suitable for PCI Express x1, x4, x8, and x16 slots. Supports 1U chassis, not suitable for PCI slots. Specially designed interface electrostatic two-way protection, 15KV/20KV electrostatic protection function, 200W lightning surge protection function. Supports DMA transmission mode to improve data transmission throughput.

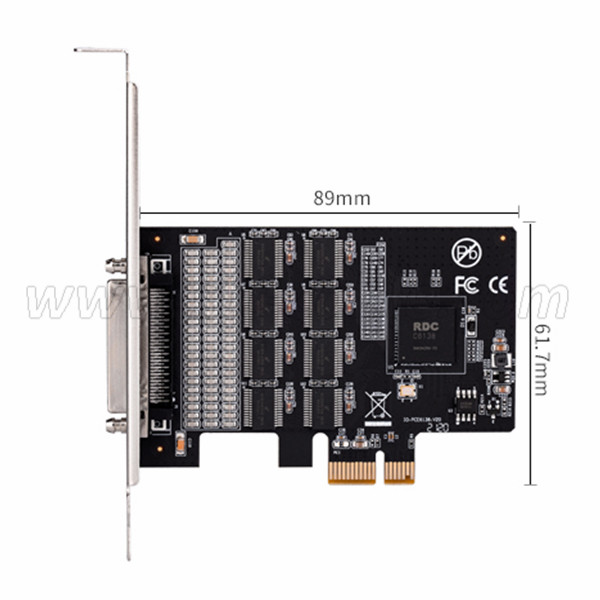

Size: 89mmx61.7mm

Wide range of applications

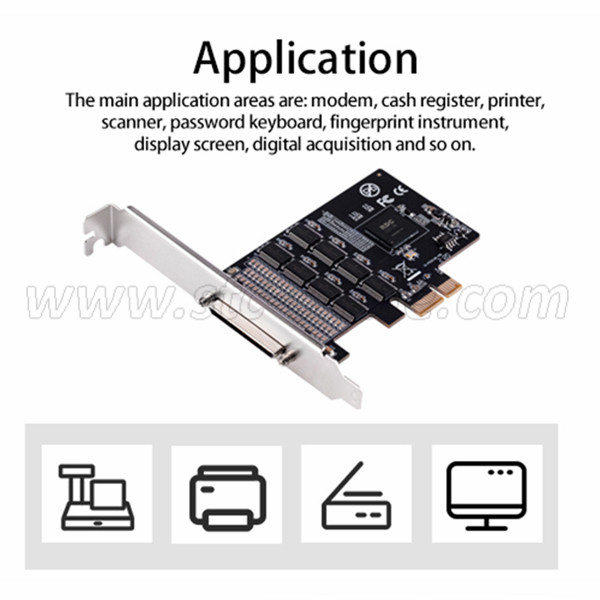

Industrial-grade PCIE multi-serial card has a wide range of applications. The main application areas are: modems, cash registers, printers, scanners, password keyboards, fingerprint scanners, display screens, digital collection, etc.

System requirement

Windows XP, Vista, 7, 8, 8.1, 10, Windows Server 98, 2K, 2K3, 2K8, 2K12, 2K16, Linux2.4.x/2.6.x.

Package Contents

1 x PCI-Express I/O card,

1 x user manual,

1 x driver CD,

1 x short iron piece,

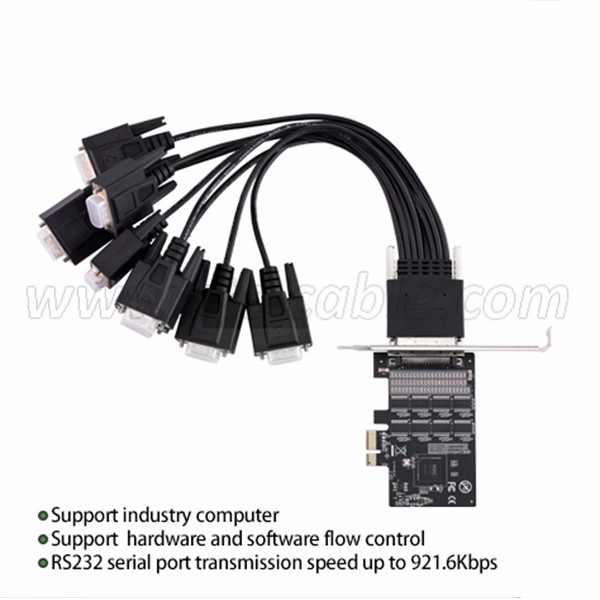

1 x VHDCI 68 to 8x DB9 cable.

This PCI to 8-port RS232 multi-serial card can not only realize simultaneous communication among 8 serial device ports, but also has two-way static protection on the interface to ensure the normal operation of the equipment and improve work efficiency. It is the best choice for industrial-grade equipment users.
