New product recommendation: Desktop industrial-grade PCI-E to 8-port RS422/485 multi-serial card

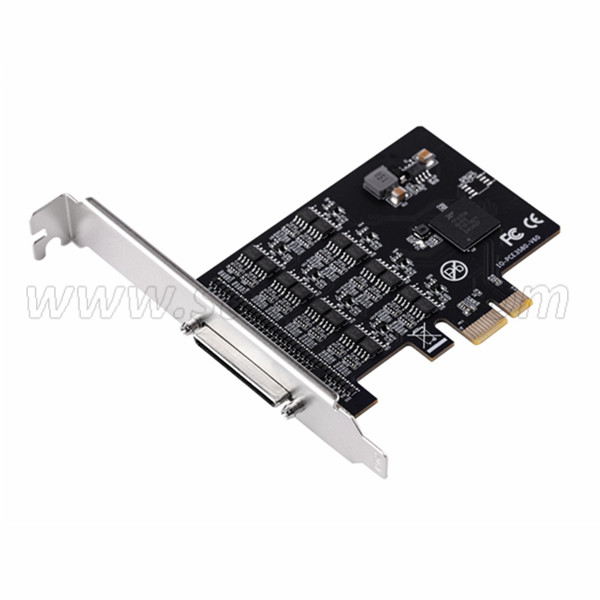

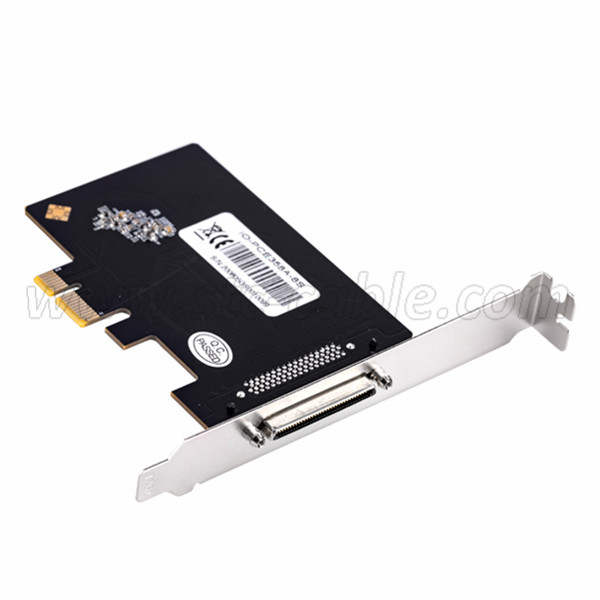

What I recommend to you today is an industrial-grade PCI-E to 8-port RS422/485 multi-serial card. This multi-serial card will allow users to add 8 standard RS422/485 serial ports to a desktop computer or server, using a bidirectional interface. Protection, providing 500W lightning surge protection power per line and 20KV ESD full signal electrostatic protection, ensuring high-speed and stable transmission of the RS422/485 interface. A short iron piece is delivered and can be used in any large or small (2U) chassis. Applicable to all RS422/485 interface devices, including POS machines, access control, ATMs, embedded industrial automation equipment, financial payment ATM systems, transportation systems, factory automation and process control, medical systems, remote access servers, etc. Model: STC-PS0014

8 standard RS422/485 serial ports equipped with 8 standard

RS422/485 serial port automatically realizes RS422/485 communication without jumper settings. Users can communicate simultaneously by connecting 8 serial devices to achieve simultaneous communication with multiple serial device ports. RS422 signal: T/R+, T/R-, RXT+, RXT-, GND, RS485 signal: DATA+(B), DATA-(A), GND; RS422 working mode: point-to-many full-duplex two-way communication; RS485 Working method: point-to-many half-duplex communication.

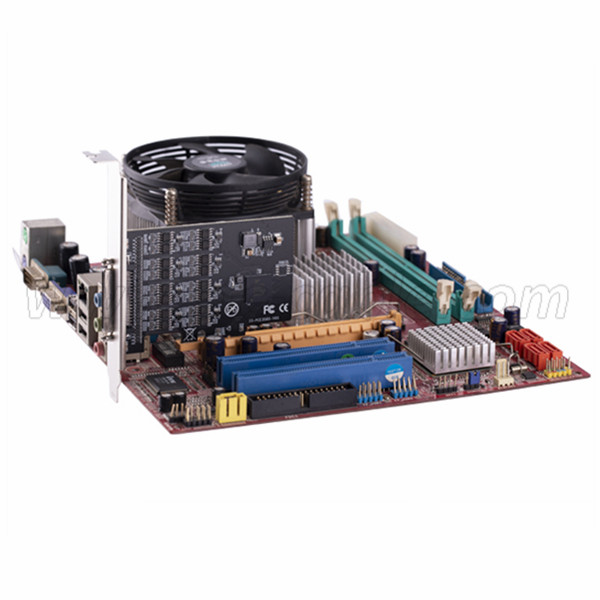

STC desktop industrial grade PCI-E to 8-port RS422/485 multi-serial card PCIE X1 bus interface design, suitable for PCI Express X4, X8, X16 slots, not for PCI slots. A short iron piece is delivered and can be used in any large or small (2U) chassis. Adopting an interface bidirectional protection design, it provides 500W lightning surge protection per line and 20KV (ESD) full signal electrostatic protection capability, which can improve the high-speed stability of the equipment.

Wide range of applications

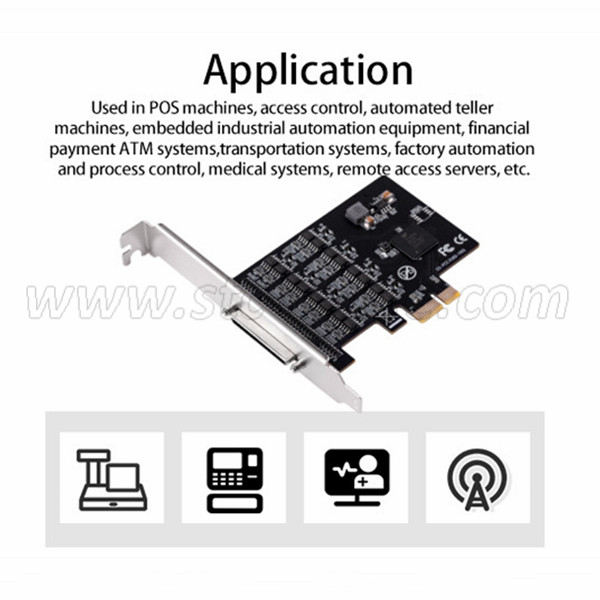

Applicable to all RS422/485 interface devices, including POS machines, access control, ATMs, embedded industrial automation equipment, financial payment ATM systems, transportation systems, factory automation and process control, medical systems, remote access servers, etc.

System requirement

Windows OS, Linux 2.6.27, 2.6.31, 2.6.32, 3.x.x and above, support available PCI Express slots

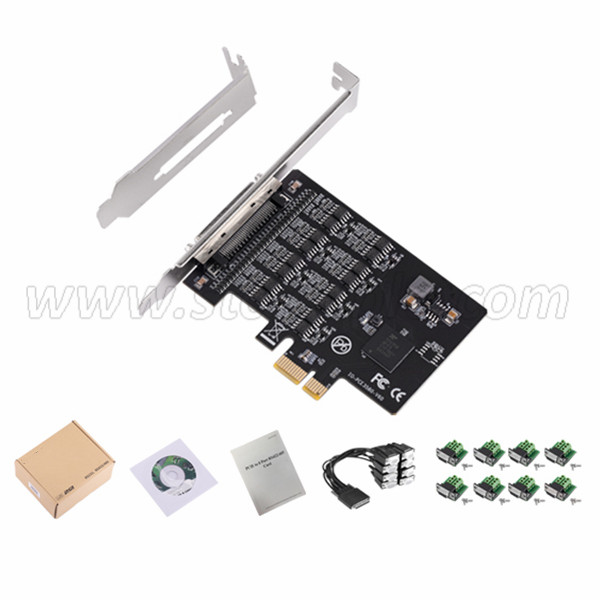

packing list

1 x PCIe to 8-port RS422/485 multi-serial card,
1 x VHDCI68 to 8xDB9 serial port cable,
1 x driver CD,
1 x instruction manual,
1 x short iron piece.
