New product introduction: PCI Express to USB3.1 Type-A and USB-C expansion card

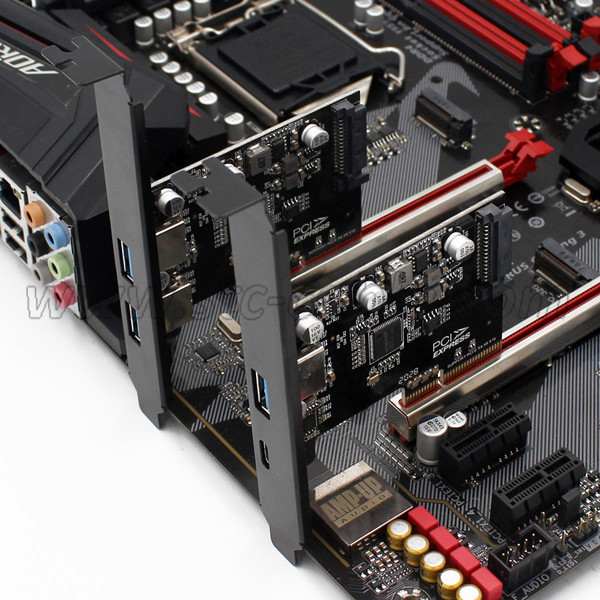

Recently, accessories manufacturer STC has released a new PCI Express to USB3.1 Type-A + USB-C expansion card. It uses a PCI-e slot and can provide more USB port. With the development of electronic technology, many users hope to expand USB3.1 Type-A and USB-C interfaces on desktop computers. The editor below will take you to understand the various performances of this PCI Express to USB3.1 Type-A + USB-C expansion card. Model:  STC-EC0037

This expansion card can convert the PCI-E interface of the computer into USB3.1 Type-A and USB3.1 USB-C high-speed data transmission interface, and is backward compatible with USB3.0, USB2.0 and USB1.1 devices, USB3 .1 Gen-II has a transmission speed of up to 10Gbps and supports the hot-swappable function of USB devices. It is specially manufactured to provide faster and higher speeds for personal computers, consumer electronics and communication equipment.

In terms of interfaces

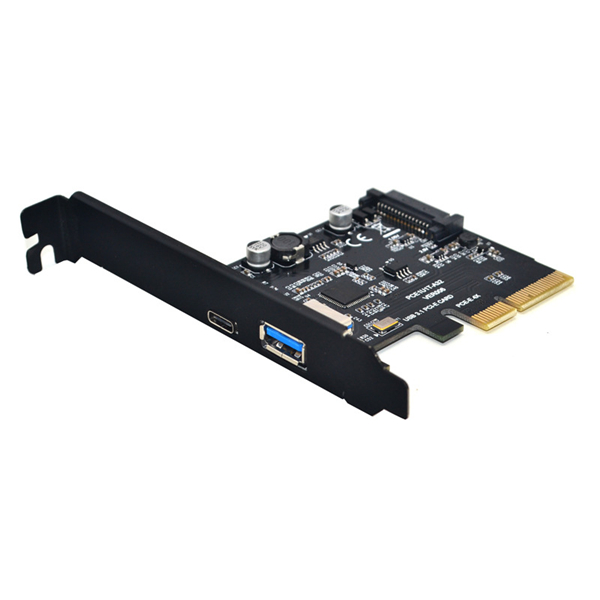

it is equipped with a USB3.1 Type-A and USB-C interface. The output current of Type-C is 5V/3000mA, and the output current of Type-A is 5V/900mA. Each USB port has built-in overcurrent protection. It adopts the new Type-C interface, which can provide 10Gbps bandwidth, and the "reversible plug-in" design allows you to plug it in and use it. The built-in SATA15Pin power supply interface is suitable for most chassis power supplies. Users only need to plug in the host power cord. Standard PCI-E3.0 x4 interface, compatible with PCI-E3.0 x4, x8, and x16 slots, product size: 80x69mm.

Adopting ASM3142 USB 3.1 control chip solution, equipped with the mainstream chip ASM3142, it supports the data transmission speed of USB 3.1, which can improve performance and achieve higher efficiency, saving up to 50% of power consumption.

Applicable fields:

Widely used in USB keyboards, mice, mobile hard drives, digital cameras, printers, scanners, U disks and other equipment.

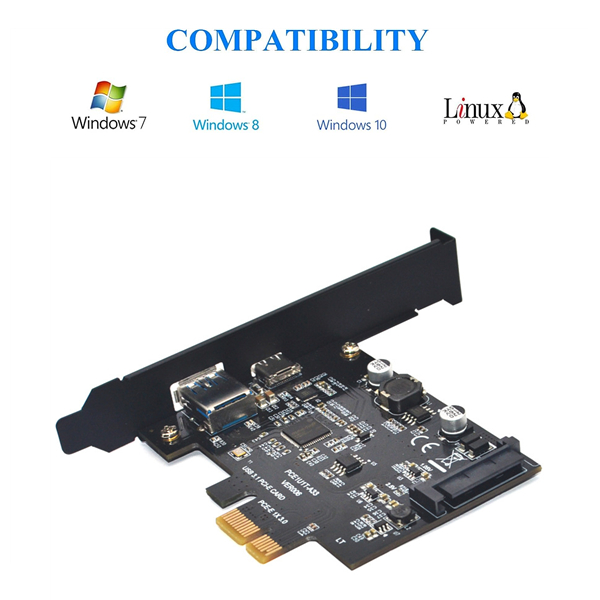

Supports multiple operating systems

Windows 7(X86/X64), Windows 8.x/10(X86/X64) (Windows in-box driver), Linux 2.6.31 or higher (Linux OS already implemented USB3.0 driver) .

Package Contents

1×PCI Express to USB3.1 Type-A + USB-C expansion card, 1×user manual, 1×driver CD, 1×short iron piece.

Summary:

From a professional perspective, if you have extreme requirements for file transfer speed, you can consider adding a USB3.1 Type-A and USB-C interface to your desktop computer, which will greatly improve the file transfer speed.
