How to select a MINI SAS cable?

Selecting a Mini-SAS cable involves understanding the specific requirements of your system and the Mini-SAS standard. Here’s a guide to help you choose the right Mini-SAS cable:

1. Understand Mini-SAS Standards

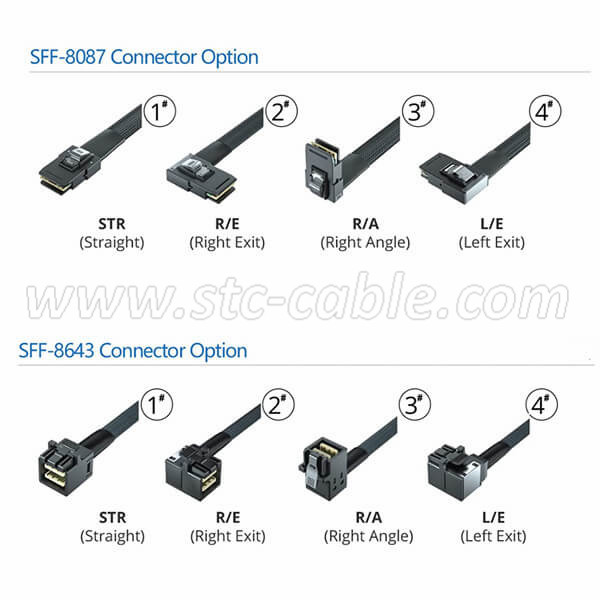

Mini-SAS (SFF-8087): This is a 4x or 8x connector used for connecting multiple SAS or SATA drives. It's commonly used in servers and high-performance storage systems.

Mini-SAS HD (SFF-8643): This is an updated version with a higher pin count and improved performance, typically used for newer SAS and SATA connections.

Mini-SAS to Mini-SAS: For connecting devices with Mini-SAS connectors.

Mini-SAS to SAS: For connecting Mini-SAS devices to standard SAS connectors.

Mini-SAS to SATA: For connecting Mini-SAS interfaces to SATA drives.

2. Connector Type

Mini-SAS 36-pin: Commonly used for internal connections in servers and storage arrays. Check whether you need a 4x or 8x Mini-SAS connector.

Mini-SAS HD 36-pin: Used for higher-speed and more recent systems.

3. Cable Length

Length: Choose a cable length that meets your needs while avoiding excessive length, which can lead to signal degradation. Typical lengths range from 0.5 meters to 2 meters. Ensure you adhere to the recommended maximum length for the Mini-SAS standard you’re using to maintain performance.

4. Cable Type

Active vs. Passive:

--Active Cables: Include electronics to boost signal strength and maintain data integrity over longer distances. These are recommended for longer cable runs or higher-speed applications.

--Passive Cables: Suitable for shorter distances and lower speeds. They are simpler and generally less expensive.

5. Data Transfer Rate

Speed: Ensure the cable supports the required data transfer rate. For example, Mini-SAS cables supporting 6 Gbps or 12 Gbps speeds should match the capabilities of your devices and controllers.

6. Shielding and Build Quality

Shielding: Look for cables with good shielding to prevent electromagnetic interference (EMI) and maintain signal quality. Proper shielding is important for high-speed data transfer.

Build Quality: Opt for cables with durable construction, especially if they will be moved or bent frequently.

7. Compatibility

Device and Controller Compatibility: Verify that the cable is compatible with the Mini-SAS ports on your devices and controllers. Mismatched connectors or cable types can lead to connection issues.

8. Brand and Reviews

Reputable Brands: Choose cables from reputable manufacturers to ensure reliability and performance.

Customer Reviews: Check user reviews for insights into the cable's performance and reliability in real-world scenarios.

9. Price and Warranty

Price: Balance cost with quality. While a higher price doesn’t always guarantee better performance, very cheap cables might not meet your requirements.

Warranty: Check if the cable comes with a warranty to cover defects or issues.

By considering these factors, you can select a Mini-SAS cable that fits your system requirements and ensures reliable, high-performance connectivity for your storage or data needs.
