How to connect the HDD using the SATA 22pin cable?
Connecting an HDD using a SATA 22-pin cable involves using a single connector that integrates both data and power into one interface. This is typically used in certain external hard drive enclosures or compact devices. Here’s how to connect an HDD using a SATA 22-pin cable:

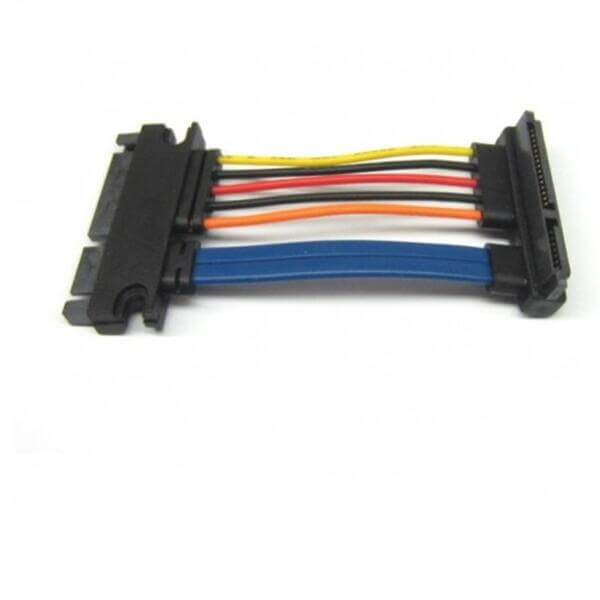

1. Identify the SATA 22-Pin Cable
Connector Overview: The SATA 22-pin connector combines the 7 pins for data and 15 pins for power into a single compact connector.
Cable Types: Ensure you have the correct SATA 22-pin cable. These cables are generally designed for use with specific enclosures or devices, so confirm compatibility with your hardware.
2. Locate the SATA 22-Pin Ports
On the HDD: The SATA 22-pin port on the HDD (or SSD) will be clearly labeled or identified in the device’s documentation.
On the Device/Enclosure: Find the corresponding 22-pin port on the external hard drive enclosure or adapter that you are using.
3. Connect the SATA 22-Pin Cable to the HDD
Align the Connector: Position the SATA 22-pin cable’s connector with the port on the HDD. The connector should align with the port and will only fit one way due to its design.
Insert the Cable: Gently but firmly insert the 22-pin connector into the SATA port on the HDD. Ensure that it is fully seated in the port.
4. Connect the SATA 22-Pin Cable to the Enclosure or Adapter
Locate the Port: Find the SATA 22-pin port on the external enclosure or adapter where the cable needs to be connected.
Insert the Cable: Align the other end of the SATA 22-pin cable with the port on the enclosure or adapter. Insert the connector into the port, making sure it is securely seated.
5. Power On and Test
Power On the Device: If you're using an external enclosure, plug it into a power source if required and connect it to your computer via the appropriate interface (e.g., USB).
Verify Connection: Check that the HDD is recognized by your computer. You can do this by opening Disk Management (on Windows) or Disk Utility (on macOS) to see if the drive appears.
Additional Considerations
1. Compatibility: Ensure that your HDD, SATA 22-pin cable, and enclosure/adapter are compatible with each other. SATA 22-pin connectors are not as common as standard SATA connectors, so this setup is typically used in specific situations like certain external enclosures.
2. Documentation: Refer to the documentation of your HDD, enclosure, or adapter for any specific instructions or compatibility notes related to the SATA 22-pin connection.
In summary, connecting an HDD using a SATA 22-pin cable involves ensuring that both ends of the cable are properly connected to the HDD and the enclosure/adapter, respectively. This integration of data and power into a single connector simplifies the connection process in compact or specialized setups.
