New Delivery for USB 3.0 Male to Female Flush Mount Cable

New Delivery for USB 3.0 Male to Female Flush Mount Cable

Applications:

  • 1*USB 3.0 Type A Male
  • 1*USB 3.0 Type A Female
  • Colour: Black
  • Extension Cable with Screw Panel Mount
  • 28AWG+24AWG gauge
  • USB 3.0 Backwards compatible
  • High Performance, Shielding Function, Aluminum foil


Product Detail

Product Tags

Our corporation insists all along the quality policy of "product top quality is base of organization survival; purchaser pleasure will be the staring point and ending of an company; persistent improvement is eternal pursuit of staff" plus the consistent purpose of "reputation very first, purchaser first" for New Delivery for USB 3.0 Male to Female Flush Mount Cable, Living by good quality, enhancement by credit score is our everlasting pursuit, We firmly think that immediately after your stop by we are going to become long-term companions.
Our corporation insists all along the quality policy of "product top quality is base of organization survival; purchaser pleasure will be the staring point and ending of an company; persistent improvement is eternal pursuit of staff" plus the consistent purpose of "reputation very first, purchaser first" for Round Panel Mount Cables, Our company has already had a lot of top factories and experienced technology teams in China, offering the best goods, techniques and services to worldwide customers. Honesty is our principle, specialist operation is our work, service is our goal, and customers' satisfaction is our future!

Technical Specifications
Warranty Information
Part number                                                               STC-H3008

Warranty                                                                     3 Years

Hardware
Cable Jacket Type                                                      PVC - Polyvinyl Chloride

Cable Shield Type                                                      Aluminum-Mylar Foil with Braid

Connector Plating                                                       Nickel

Number of Conductors                                               9

Performance
Type and Rate                                                            USB 3.0 - 5 Gbit/s
Connector(s)
Connector A                                                               1 - USB Type-A (9 pin) USB 3.0 Female

Connector B                                                               1 - USB Type-A (9 pin) USB 3.0 Male

Physical Characteristics
Cable Length                                                             30cm 60cm 100cm 150cm 180cm 3m or Customized

Color                                                                          Blue/Black

Connector Style                                                         Straight to Straight

Product Weight                                                          2.5 oz [70 g]

Wire Gauge                                                               28/30 AWG

Packaging Information
Package Quantity                                                      1Shipping (Package)

Weight                                                                       0.2 lb [0.1 kg]

What's in the Box

USB 3.0 Extension Cable With Screw Panel Mount

Overview

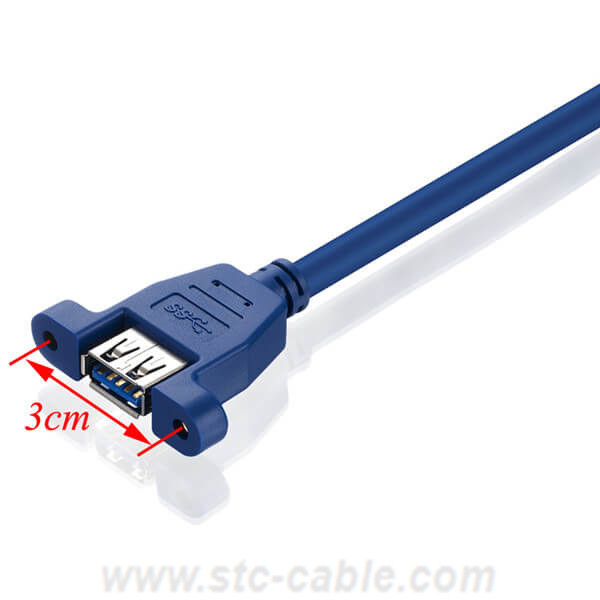

USB 3.0 Cable With Screw Panel Mount

The STC-H008 USB3.0 Extension Cable With Screw Panel Mount features two USB 3.0 Type-A male connector on one end, breaking off into two separate USB 3.0-A (female) ports on the other end of the cable. The USB 3.0-panel mount cable offers a convenient solution for connecting bootable thumb drives or authentication fobs etc. Foil and braid shielding reduces EMI/RFI interference and twisted-pair construction helps reduce crosstalk thus ensuring high-speed, error-free data transfer.

 https://www.stc-cable.com/usb-3-0-extension-cable-with-screw-panel-mount.html

The Stccabe.com Advantage



  • USB A Extension Cable, Panel Mount
    This is a panel-mount USB 3 extension cable, which gives you an easy way to add an external USB 3.0 port to your device. High quality materials, sturdy connectors and flexible cable material, as well as thorough double shielding are our cable trademarks.
  • Engineering
    Don't let your engineering skills come into question because of the cheap products used to make it. Use cables that are guaranteed to work and tested before they're sent from the production line. Our cables offer years of good connectivity quality. These feature a 30-micron gold plating on the contacts. This helps to make inferior cables work well, which makes your product stand out from the crowd.
  • Fits like a glove
    This USB 3.0 A Male to Female is mostly used in new product development, when you want to add this inside of your product, such as a printer, robot, or another USB device. The panel mounts on the A Female side give a nice, streamlined, tight fit. It's also backward compatible with previous USB 2 and USB 1.
