Molex KK Pitch 5.08mm Wire To Board Connector wire harness
Applications:
- Cable Length & Termination customized
- Pitch: 5.08mm
- pins: 2 to 20 positions
- Material: PA66 UL94V-2
- Contact: Brass or Phosphor Bronze
- Contact Area: Tin 50u “over 100u” nickel
- Solder Tail Area: Matte tin/Underplating: Nickel
- Current rating: 5A (AWG #18 to #24)
- Voltage rating: 250V AC, DC
Product Detail
Product Tags
| Technical Specifications |
| Specifications |
| Series: STC-005080001 Series
Contact Pitch: 5.08mm No. of Contacts: 2 to 20 positions Current: 5A (AWG #18 to #24) Compatible: Cross Molex 5058/5279 Connector Series |

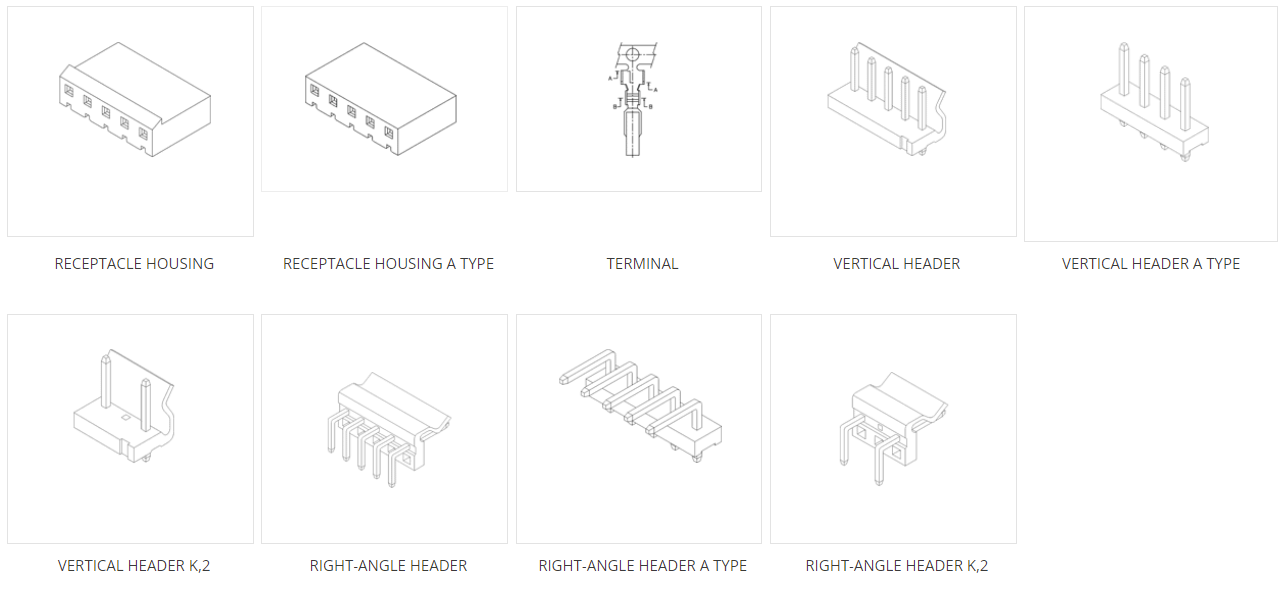

| Select Components |
 |

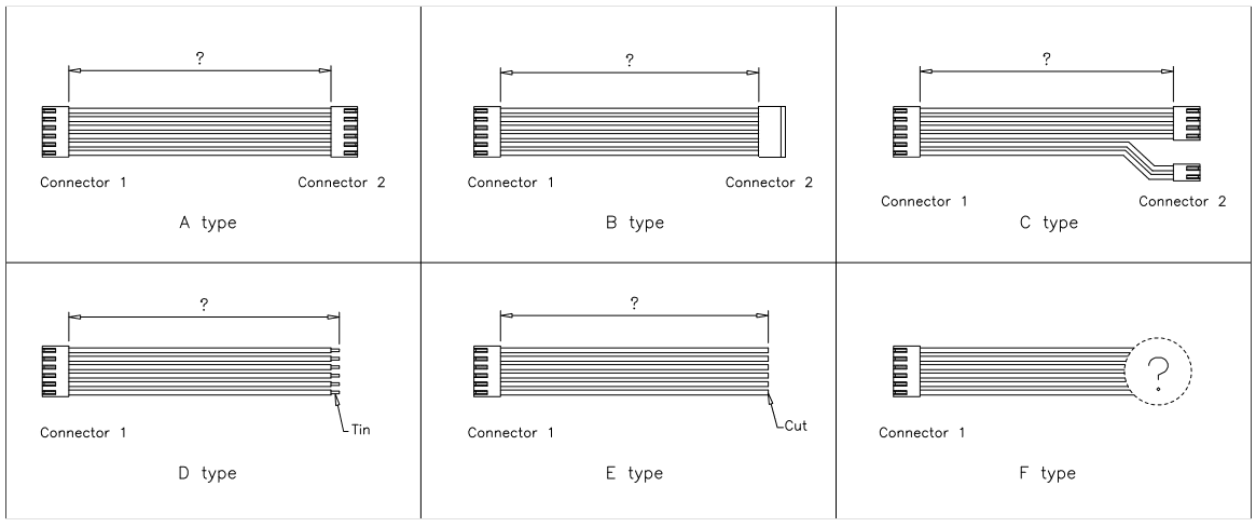

| Cable Assemblies Refer |
 |
| General Specification |
| Current Rating: 5A
Voltage Rating: 250V Temperature Range: -20°C~+85°C Contact Resistance: 0.02 Ohm max Insulation Resistance: 1000M Omega Min Withstanding Voltage: 1500V AC/minute |
| Overview |
Pitch 5.08mm Molex5058/5279 Wire To Board Connector wire harness cableIn Europe, connectors used in home appliances need to pass Glow Wire testing. KK 508 Connector System has passed VDE Glow Wire testing, making it suitable for European home appliances. OEMs can cut costs by streamlining procurement processes and reducing the number of vendors they work with. Molex offers a wide range of electronic components and capabilities, enabling OEMs to procure many of their electronic needs from 1 source.
|
| Features |
|
Polarized mating geometry Ensures header and receptacle cannot be mis-matedBifurcated terminal available Enhances electrical reliability with 2 independent contact beams Anti-snag terminals offered to Prevent terminal damage during the cable assembly process Top-entry, right-angle, and bottom-entry PCB receptacles are available Provide design flexibility Available in UL 94V-2 and/or Glow Wire capable materials suitable for global applications that must meet regional safety standards terminals Create a reliable electrical connection Industry-standard 5.08mm pitch Enables use in a variety of power applications
|
| Advantages |
KK 508 Connector System
Delivering up to 7.0A per circuit in wire-to-board and 5.0A per circuit in board-to-board configurations, the KK 508 Connector System, with Glow Wire capability, is ideal for low- to mid-range power applications
|
| Application |
ConsumerHVAC Home Appliance Data/ComputingOffice equipment IndustrialAutomation equipment industrial networks
|
