Mini SAS SFF-8087 left angle to SFF-8643 cable
Applications:
- Left angle internal Mini SAS SFF-8087 to SFF-8643 is a high-speed data storage interface designed for high-throughput and fast data access
- Mini SAS 36-pin port compatible with Raid Cards like Dell R710, Dell R720, Dell T610 server, H200 controller, PERC H700, H310, PE T710, NORCO RPC-4220 , Norco RPC-4224
- With SFF-8643 to SFF-8643 connector, mini SAS line interface, fast and stable connection. Compact design, the cable doesn’t take up much space, which promotes efficient office work. Treated by injection molding, this cable looks great and is durable in use
Product Detail
Product Tags
| Technical Specifications |
| Warranty Information |
| Part number STC-T030
Warranty 3 Years |
| Hardware |
| Cable Jacket Type PVC - Polyvinyl Chloride |
| Performance |
| Type and Rate 12Gbps |
| Connector(s) |
| Connector A 1 - Mini SAS SFF-8087
Connector B 1 - Mini SAS HD SFF-8643 |
| Physical Characteristics |
| Cable Length 0.5/1m

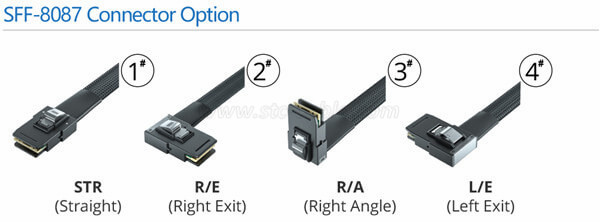

Color Blue wire+ black nylon Connector Style Left angle to Straight Product Weight 0.1 lb [0.1 kg] Wire Gauge 30 AWG |
| Packaging Information |
| Package Quantity 1Shipping (Package)
Weight 0.1 lb [0.1 kg] |
| What's in the Box |
Mini SAS SFF-8643 to left Mini SAS 36Pin SFF-8087 Cable
|
| Overview |
|
This internal mini-SAS cable provides a cost-saving solution for connecting an SAS or SATA adapter to an SAS or SATA backplane that has an SFF-8087 connection. 1> Impedance = 100 Ohms, Up to 12Gbps data rates 2> Thin, Fold-able, High-bandwidth, Low-skew cable 3> Internal SAS HD SFF-8643 to Internal SAS SFF-8087 Cable, 0.5-Meter(1.6ft),1-Meter(3.3ft) 4> 3M Technology Twin Axial Cable, Fold-able, High-bandwidth, Low-skew cable 5> STC adopts 3M twin axial cable technology to offer flexible design of benefits for the high-quality demands of customers. The core cable technology allows cable assemblies to provide system designers with an extensive selection of interconnect solutions across a wide range of industries and applications. STC cables are ideal for data center design to meet high-performance cable needs or to allow for improved airflow for cooling with its thin, fold-able cable design.
Product Description
SFF-8643 to Left SFF-8087 internal SAS cable (with sideband) STC's High Density (HD) Mini SAS SFF-8643 to Mini SAS SFF-8087 Internal cable assemblies are available for SAS 2.1, 6Gb/s and SAS 3.0, 12Gb/s specifications. Like the external HD Mini SAS, this new connector uses less PCB real estate and allows higher port density for internal hosts and devices. Hybrid versions of these new cables will allow for a smooth transition from 6Gb. Features: Length =Available from 0.5~1 meter Wire Size (AWG) = 30 Connector A = Internal Mini SAS HD (SFF-8643) Connector B = Internal Mini SAS (SFF-8087) Impedance = 100 Ohms Data Rate = 12Gb/s Applications: Fiber Channel InfiniBand SAS 2.1 (Serial Attached SCSI) compliant RoHS Compliant
|
