MDR SCSI 26 Pin Male Connector With Metal Hood for Cable

MDR SCSI 26 Pin Male Connector With Metal Hood for Cable

Applications:

  • 26-Pin Male MDR Connector.
  • Connector With Metal Hood
  • Solder Cable Termination.
  • 30V DC Voltage Rating.
  • 2A Current Rating.
  • Cable Clamp in Backshell.


Product Detail

Product Tags

Technical Specifications
Warranty Information
Part number                                                                 STC-MDR-26SMM

Warranty                                                                       3-year

Hardware
Connector Type                                                            Solder

Connector Plating                                                         Gold

Performance
Power Delivery                                                             30V/2A
Application
Industrial Equipment
Environmental standards
RoHS Compliant

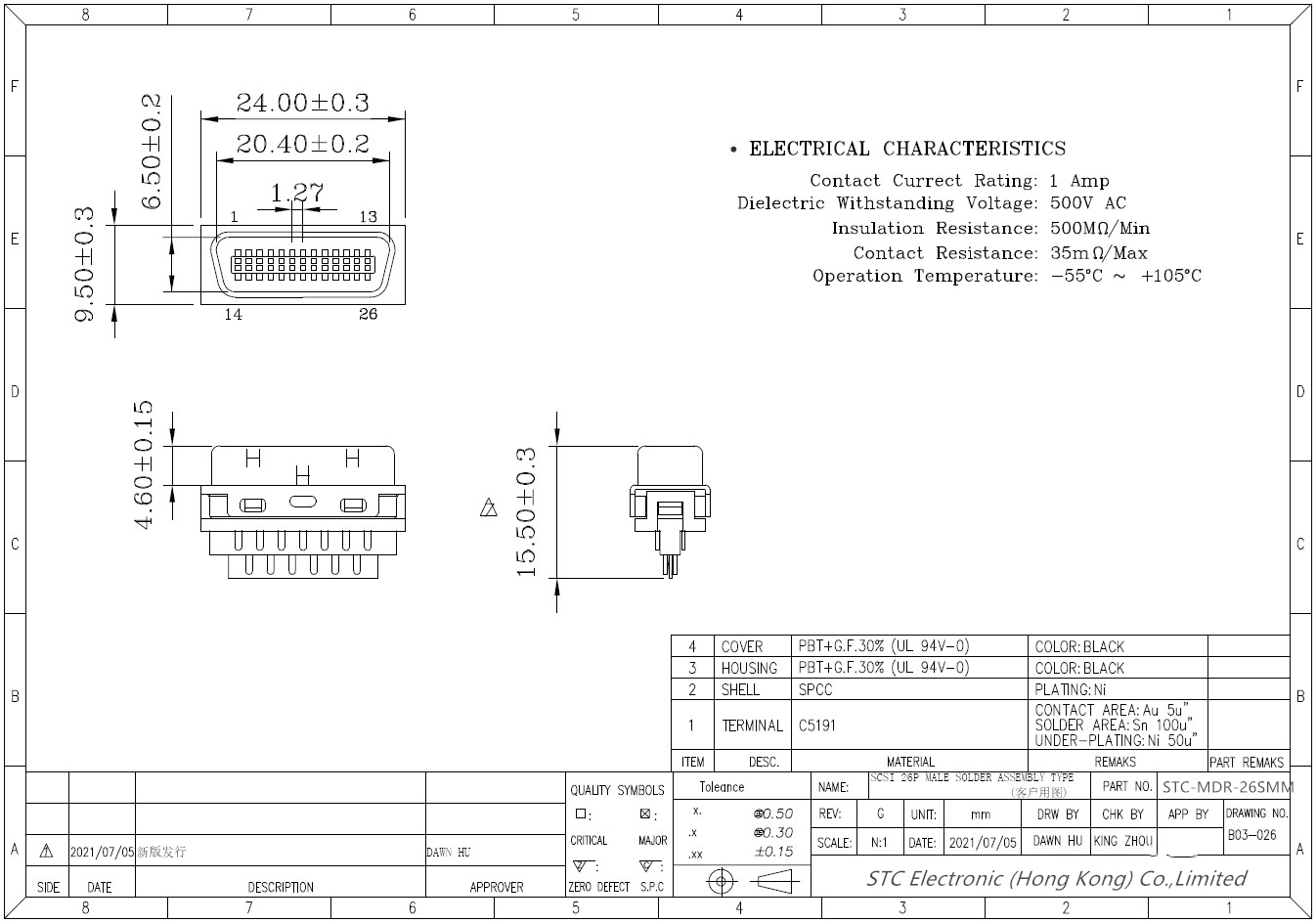

Specification Detail
Terminal                                                                        Copper alloy, Contact area plated 1u"

Shell                                                                              SPCC, Plated Ni

Housing                                                                         PBT +30% G/F

Cover                                                                             LCP + 30% G/F

HOOD                                                                            Zinc Metal

Color                                                                              Black

Electrical Characteristics
a)  Contact Current Rating: 0.3 Amp

b)  Dielectric WithstandingVoltage: 500V AC

c)  Insulation Resistance: 500MΩ/Min

d)  Contact Resistance: 35mΩ/Max

e)  Operaion Temperature: -20℃~+85℃

What's in the Box

SCSI MDR 26 Pin HPCN SCSI 26 Pin male cable connector With Metal Hood solder Type, SCSI 26 pin connector With Metal Hood for cable

Overview

MDR 26 Pin Male connector pitch=1.27mm Solder Type With Metal Hood, MDR male 26 pin solder connection



Description



This shielded MDR (Mini D Ribbon) male with soldering connection by STC can be used for cable mounting and I/O applications.

Protection by enclosure
The plastic housing protects the male connector from dirt and damage.

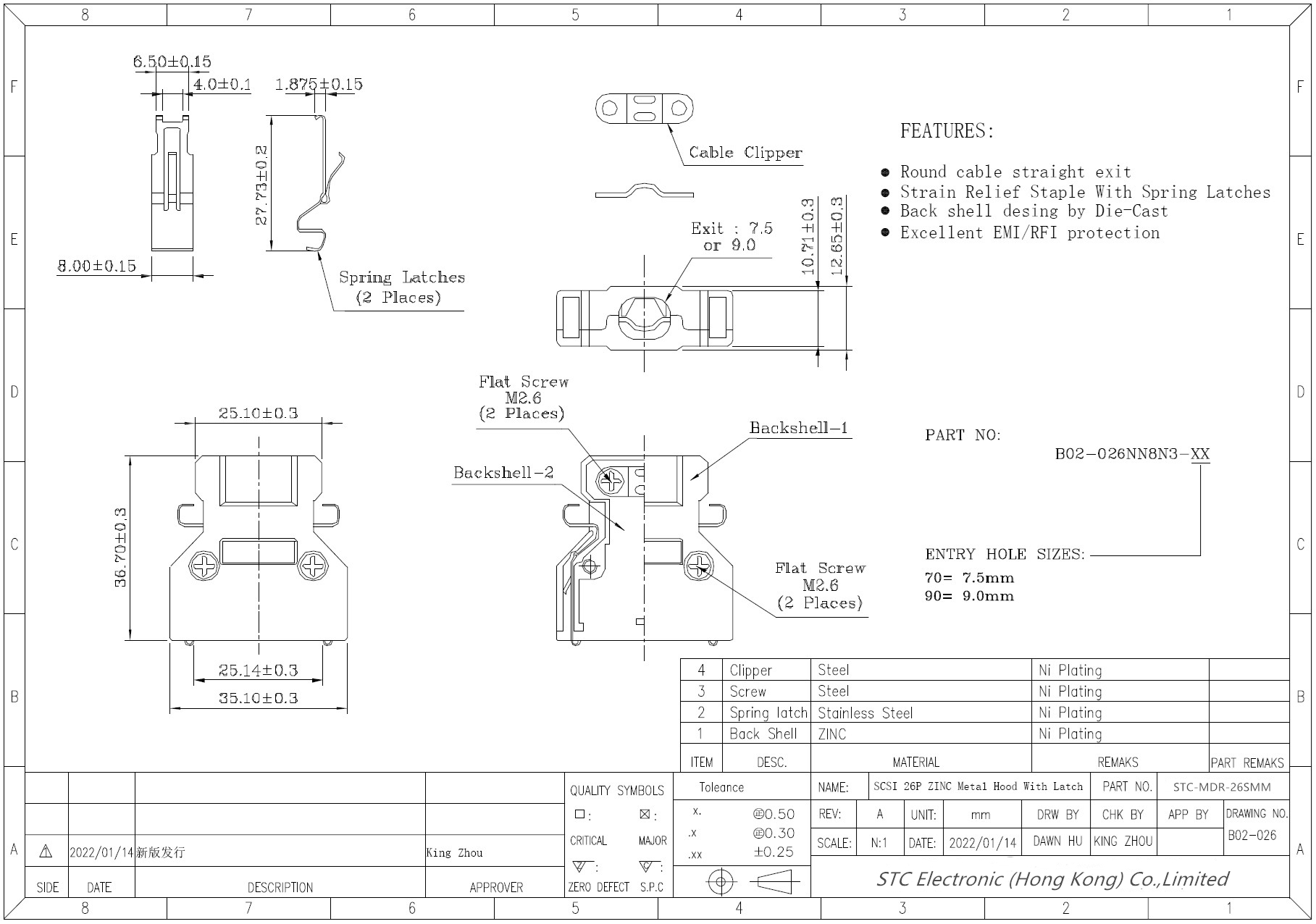

Strain relief
The clip-on strain relief fixes the cable in the enclosure.
