Warranty                                                                       3-year

Connector Plating                                                         Gold

Shell                                                                              SPCC, Plated Ni

Housing                                                                         PBT +30% G/F

Cover                                                                             LCP + 30% G/F

HOOD                                                                            ABS

Color                                                                              Black/Begi

b)  Dielectric WithstandingVoltage: 500V AC

c)  Insulation Resistance: 500MΩ/Min

d)  Contact Resistance: 35mΩ/Max

e)  Operaion Temperature: -20℃～+85℃

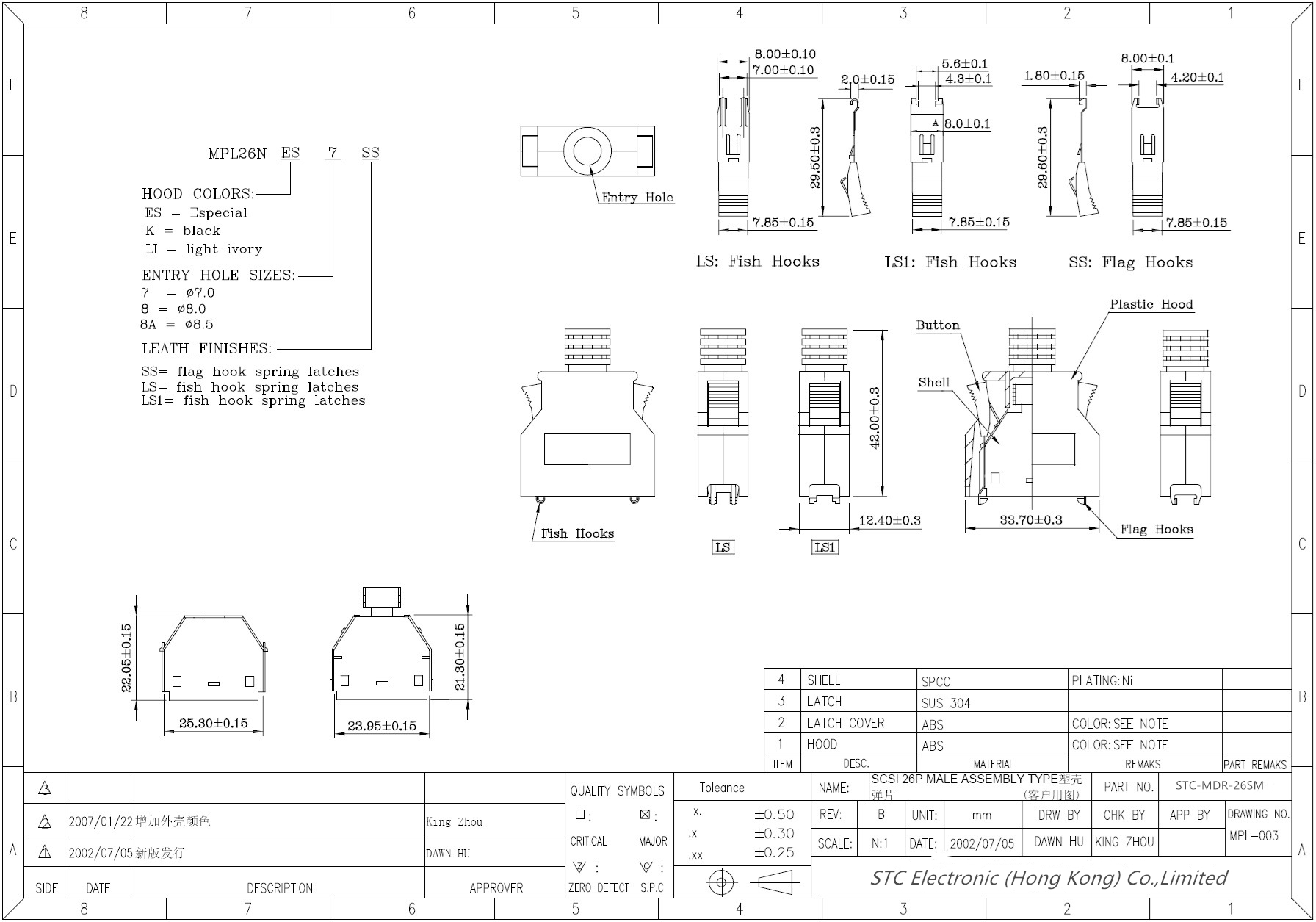

SCSI MDR 26 Pin HPCN SCSI 26 Pin male cable connector With ABS Hood solder Type SCSI 26 pin connector for cable

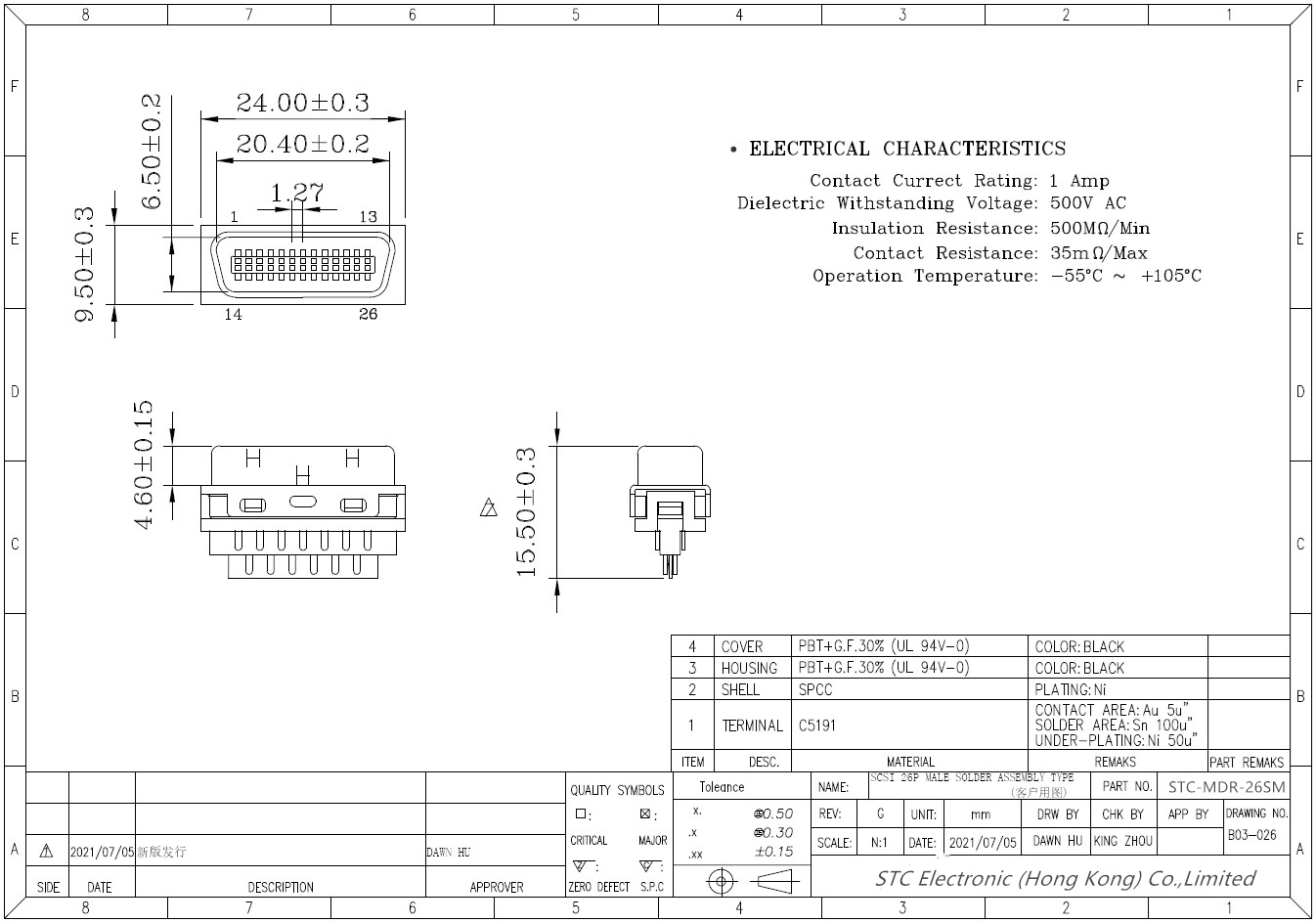

MDR 26 Pin Male connector with ABS Hood pitch=1.27mm Solder Type, MDR male 26 pin solder connection

Description

This shielded MDR (Mini D Ribbon) male with soldering connection by STC can be used for cable mounting and I/O applications.

Protection by enclosure
The plastic housing protects the male connector from dirt and damage.

Strain relief
The clip-on strain relief fixes the cable in the enclosure.
