Warranty                                                                       3-year

Connector Plating                                                         Gold

Shell                                                                              SPCC, Plated Ni

Housing                                                                         PBT +30% G/F

Cover                                                                             LCP + 30% G/F

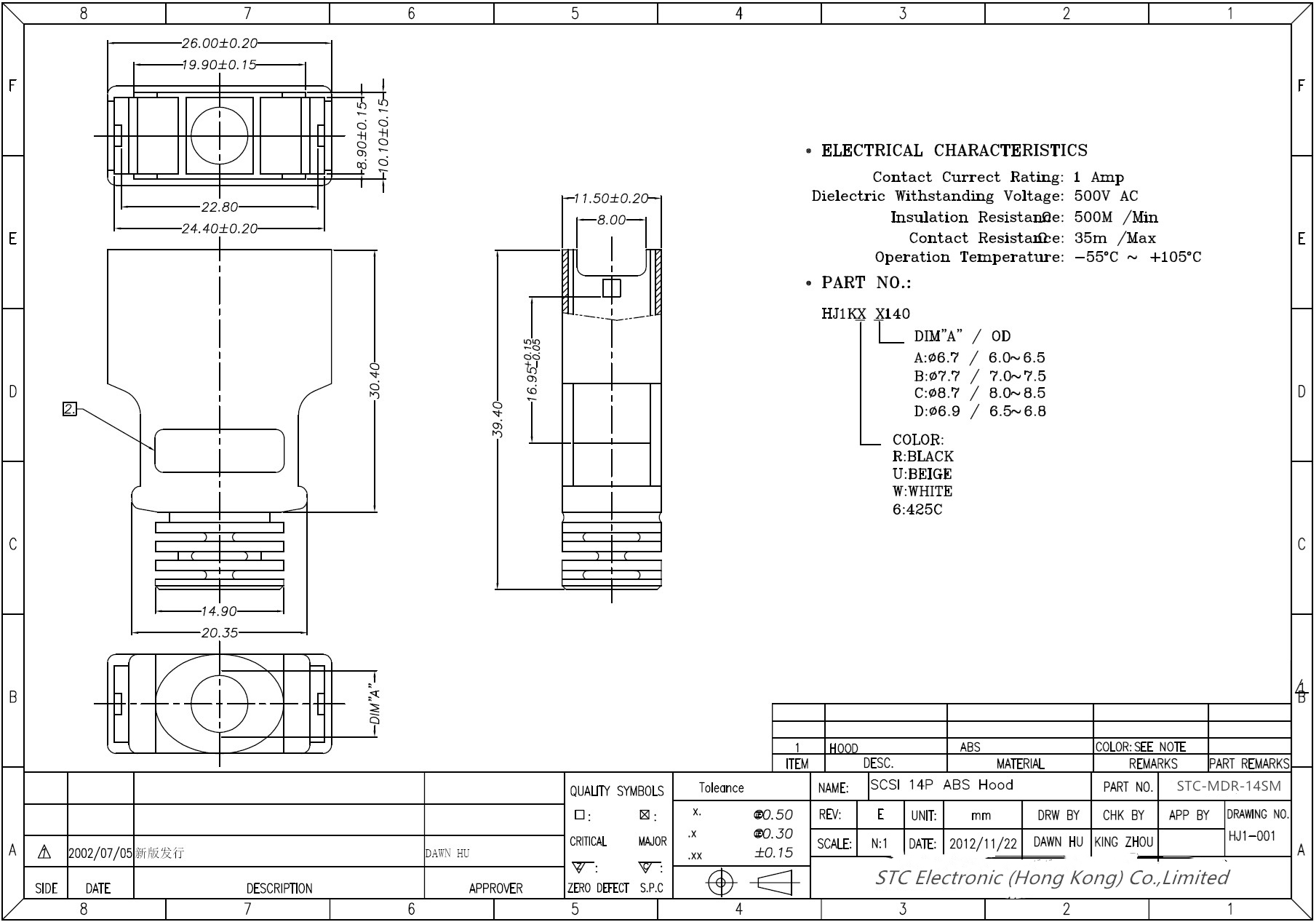

HOOD                                                                            ABS

Color                                                                              Black/Begi

b)  Dielectric WithstandingVoltage: 500V AC

c)  Insulation Resistance: 500MΩ/Min

d)  Contact Resistance: 35mΩ/Max

e)  Operaion Temperature: -20℃～+85℃

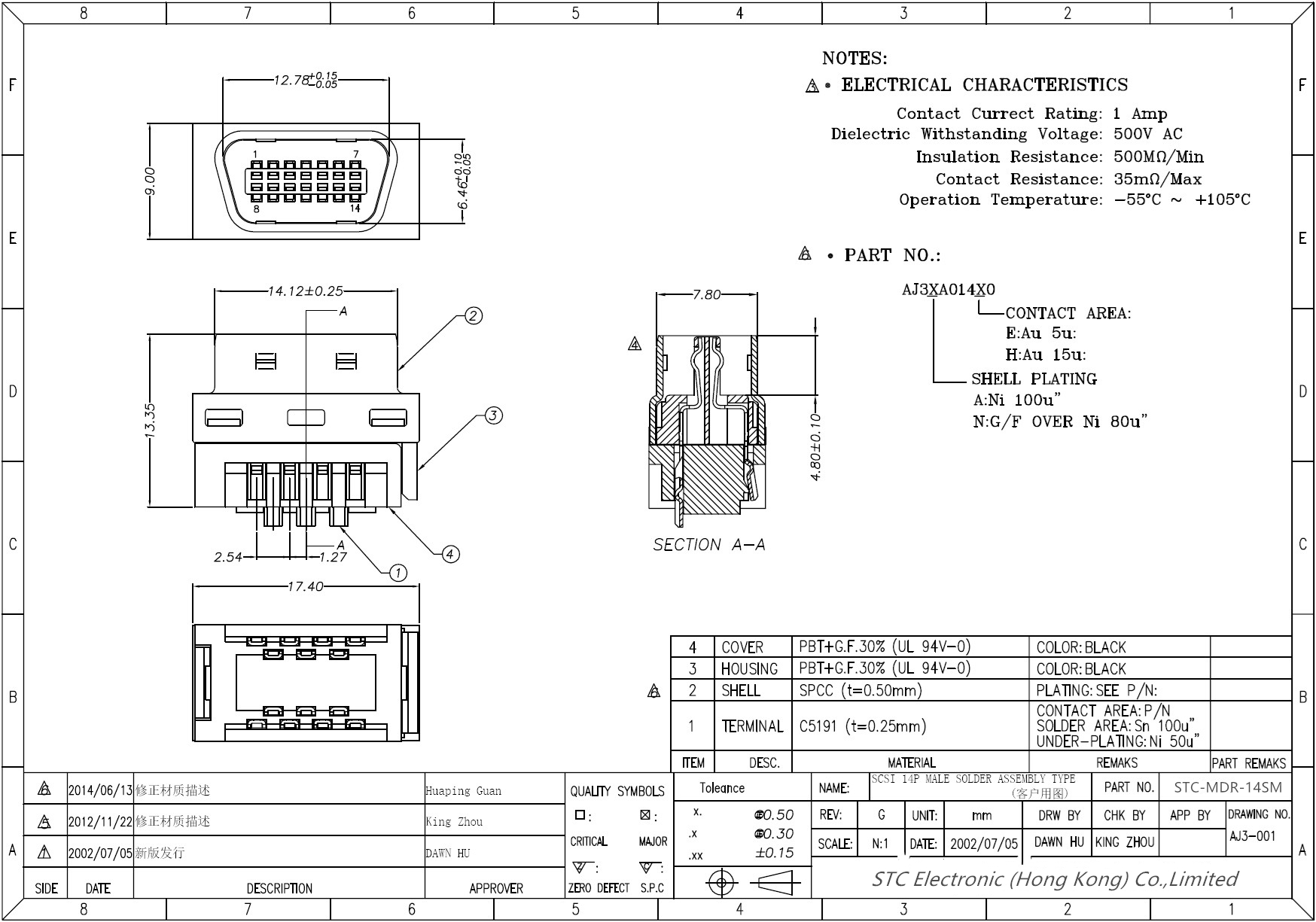

SCSI 14Pin Male Connector SCSI MDR 14 Pin SCSI 14Pin male cable connector With Metal Hood solder Type

MDR 14Pin Male connector pitch=1.27mm Solder Type, MDR male 14 pin solder connection

Description

This shielded MDR (Mini D Ribbon) male with soldering connection by STC can be used for cable mounting and I/O applications.

Protection by enclosure
The plastic housing protects the male connector from dirt and damage.

Strain relief
The clip-on strain relief fixes the cable in the enclosure.
