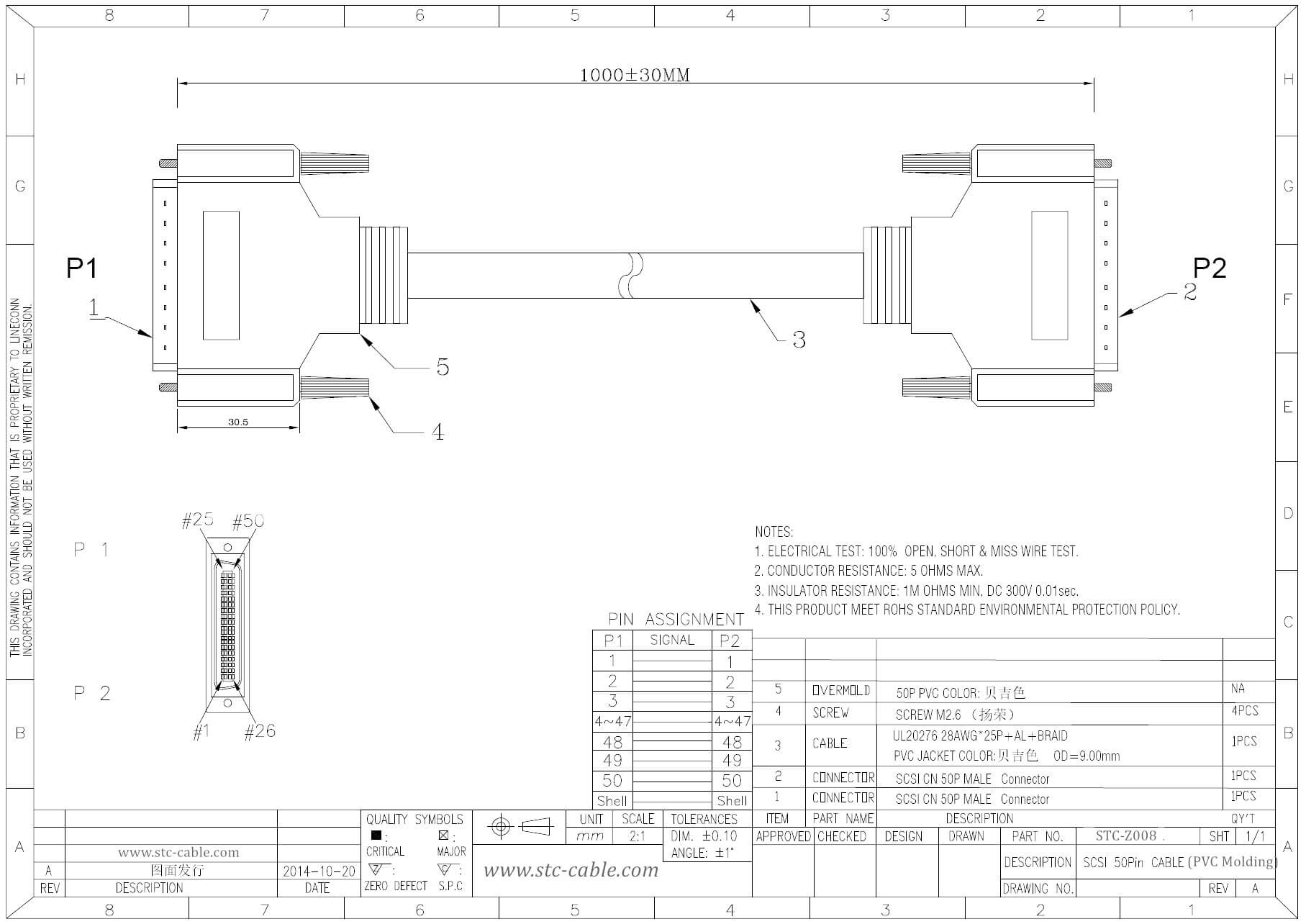

SCSI 50 Pin MDR Male HPCN Solder Plug Connector cable with PVC Molding and screws assembly.

Durable SCSI cable 50 pin male cable with PVC Molding and screws for Workstation, SCSI cables are the standard for small computer system interface and mainly use for high-speed bus connections between small computers and intelligent peripherals such as printers, hard disks, and CD ROM drives, Transmits high speed and mission-critical data integrity associated with SCSI applications.

1> Wired straight through for extending serial devices/peripherals.

2> Gold-plated contacts provide reliable connections with repeated mating cycles.

3> We could according to the customers' design specs make wire harnesses.

Advantage

1> Premium Cable for reliable and durable system performance.

2> Excellent shielding interference effect.

3> The connector minimizes induced signal noise.

4> Flexible yet has a single-end impedance of 90 ohms.

5> Used in testing devices for FCC and CE Acceptance

MDR Connector Details

The Mini Delta Ribbon (MDR) series of connectors provides a compact arrangement of durable sliding 'ribbon' contacts. The high contact density and good performance at high speeds have yielded many applications for this connector type. These are 'half-pitch' connectors, meaning that the contact spacing is tighter than full-size Centronics connectors, such as those used on our BRKDC36F or BRKDC50F breakout boards. The 'half-pitch' connectors utilize contacts on 0.05" centers.

General Description

Use these cables to interconnect equipment that utilizes 50-pin MDR (Mini Delta Ribbon) connectors. These attractive cables feature 50-pin MDR Male connectors on each end, over-molded ends, twisted pair wiring, and a shielded cable jacket. Latches secure the cable to the mating connector. Two cable lengths (3 feet and 6 feet) are available. These cables are general purpose and are compatible with 50-pin Mini D-Ribbon breakout boards.
