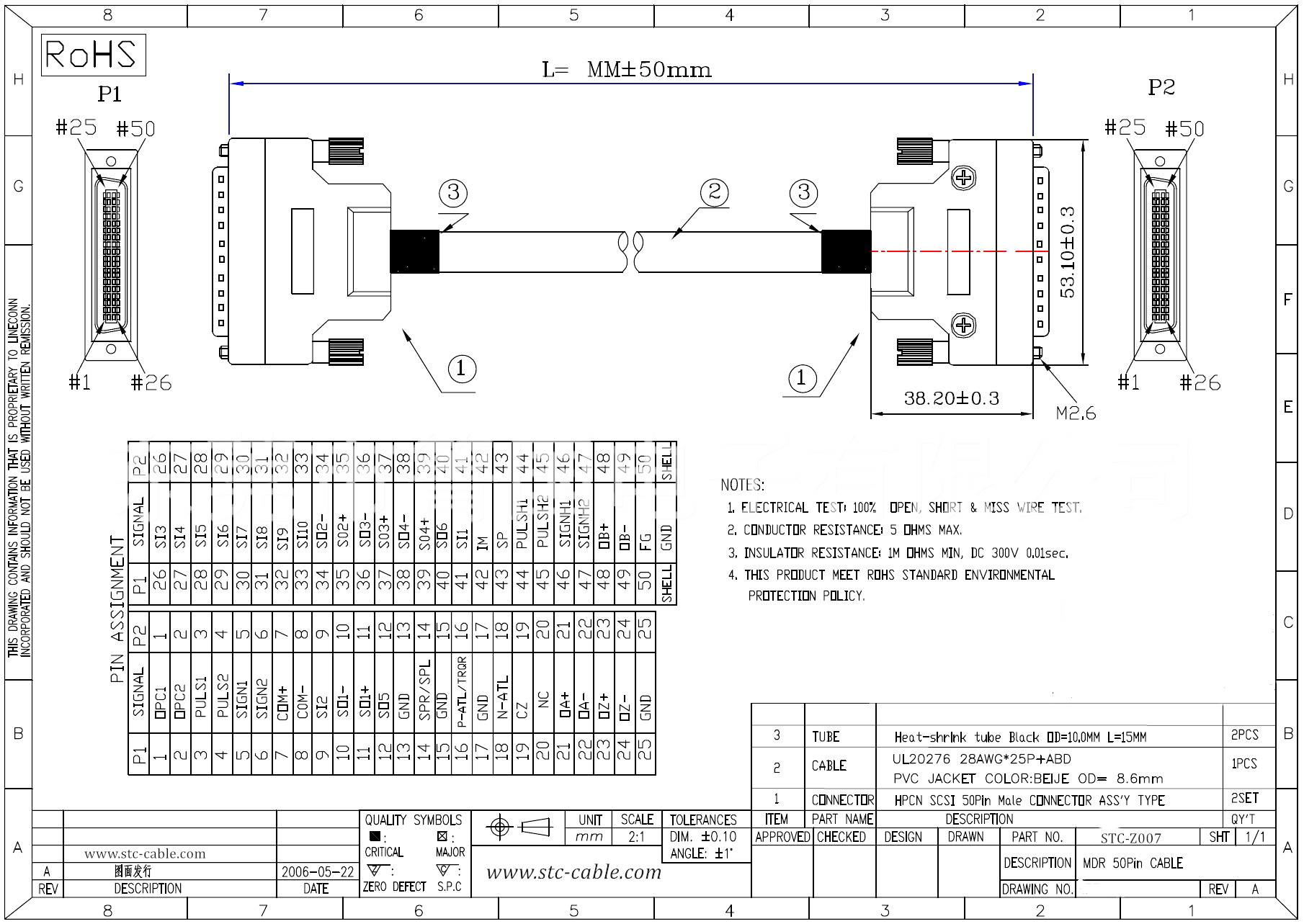

SCSI 50 Pin MDR Male HPCN Solder Plug Connector cable with metal shell and screw assembly.

Durable SCSI cable 50 pin male cable with metal shell and screws for Workstation, SCSI cables are the standard for small computer system interface and mainly use for high-speed bus connections between small computers and intelligent peripherals such as printers, hard disks and CD ROM drives, Transmits high speed and mission-critical data integrity associated with SCSI applications.

1> Wired straight through for extending serial devices/peripherals.

2> 360 degree fully shielded for protection against EMI/RFI.

3> Gold-plated contacts provide reliable connections with repeated mating cycles.

4> We could according to the customers' design specs make wire harnesses.

Advantage

1> Premium Cable for reliable and durable system performance.

2> Excellent shielding interference effect.

3> The connector minimizes induced signal noise.

4> Flexible yet has a single-end impedance of 90 ohms.

5> Used in testing devices for FCC and CE Acceptance

MDR Connector Details

The Mini Delta Ribbon (MDR) series of connectors provides a compact arrangement of durable sliding 'ribbon' contacts. The high contact density and good performance at high speeds have yielded many applications for this connector type. These are 'half-pitch' connectors, meaning that the contact spacing is tighter than full-size Centronics connectors, such as those used on our BRKDC36F or BRKDC50F breakout boards. The 'half-pitch' connectors utilize contacts on 0.05" centers.
