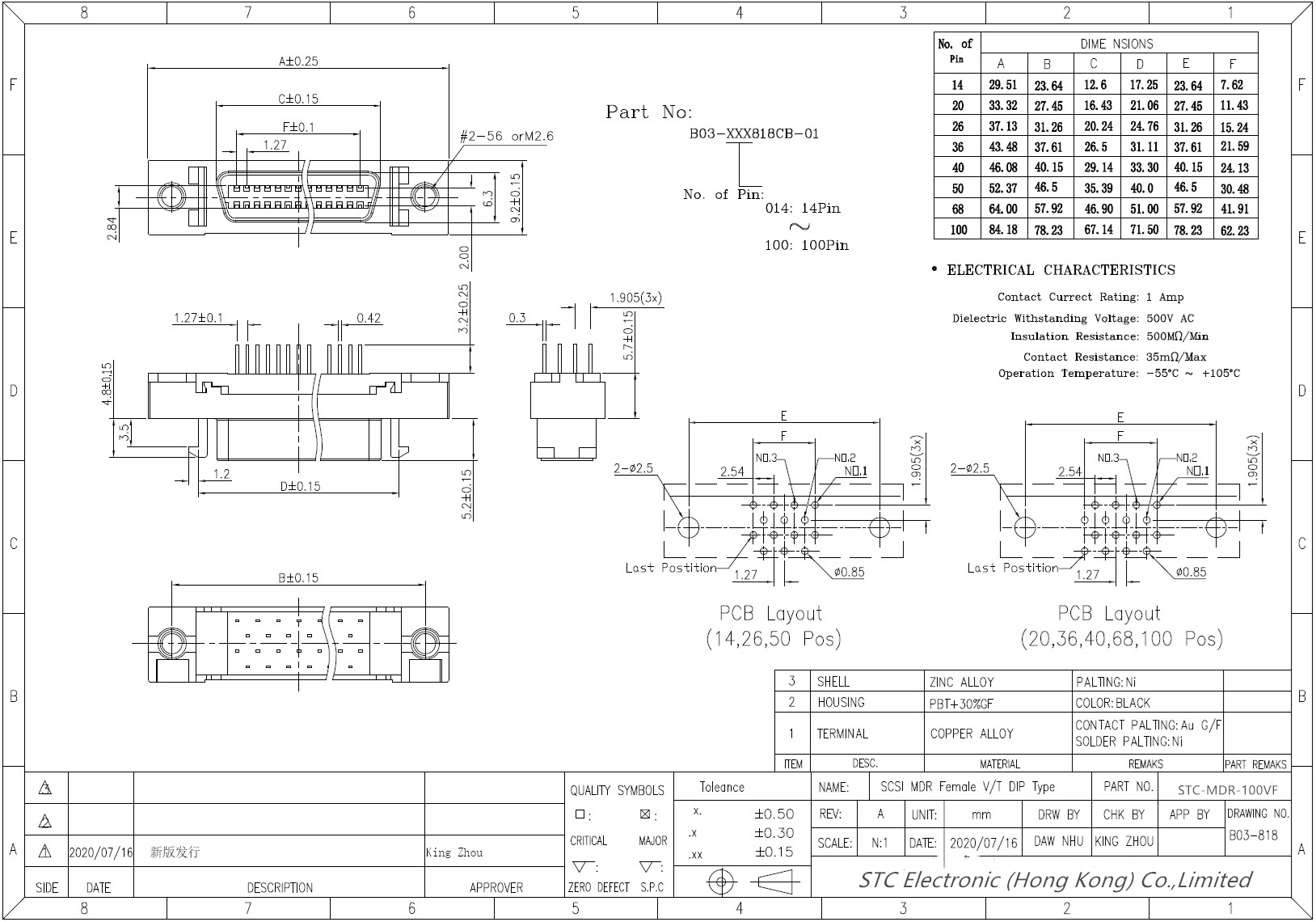

MDR 100 Pin Female Vertical DIP Type Connector
Applications:
- MDR 100-Pin Female HPCN 180-degree DIP Connector.
- DIP PCB Termination.
- 30VDC Voltage Rating.
- 2A Current Rating
Product Detail
Product Tags
| Technical Specifications |
| Warranty Information |
| Part number STC-MDR-100VF
Warranty 3-year |
| Hardware |
| Connector Type DIP
Connector Plating Gold |
| Performance |
| Power Delivery 30V/2A |
| Application |
| Industrial Equipment |
| Environmental standards |
| RoHS Compliant |
| Specification Detail |
| Terminal Copper alloy, Contact area plated 1u"
Shell SPCC, Plated Ni Housing PBT +30% G/F Black Cover LCP + 30% G/F NUT Copper Color Black |
| Electrical Characteristics |
| a) Contact Current Rating: 0.3 Amp
b) Dielectric Withstanding Voltage: 500V AC c) Insulation Resistance: 500MΩ/Min d) Contact Resistance: 35mΩ/Max e) Operaion Temperature: -20℃～+85℃ |
| What's in the Box |
MDR 100 Pin Female Connector HPCN SCSI 100 Pin Pitch 1.27mm Female SCSI 100 pin Socket Vertical DIP Type.
|
| Overview |
HPCN 100 Pin Female DIP Type Connector, HPCN SCSI 100 Pin female connector, MDR 100 Pin Female Vertical DIP Type Connector, MDR 100 Pin female connector Dip for PCB.
|
