Manufacturing Companies for USB 3.1 Type C to SATA 7+15pin Cable Adapter HDD Enclosure

Manufacturing Companies for USB 3.1 Type C to SATA 7+15pin Cable Adapter HDD Enclosure

Applications:

  • Support UASP;
  • Easy and quick access to external storage;
  • Fully compatible with USB 3.0 and backwards compatible with USB 2.0/1.1;
  • Supports a large drive capacity of up to 12TB
  • plug and play,hot-swapping;
  • No extra power required for 2.5″HDD/SDD;
  • 12V power adapter included for 3.5″ HDD/SSD;
  • Support Windows 98/2000/XP/Vista/7/8, Mac OS X.


Product Detail

Product Tags

With this motto in mind, we have now grow to be one among quite possibly the most technologically innovative, cost-efficient, and price-competitive manufacturers for Manufacturing Companies for USB 3.1 Type C to SATA 7+15pin Cable Adapter HDD Enclosure, Welcome friends from all over the world come to visit, guide and negotiate.
With this motto in mind, we have now grow to be one among quite possibly the most technologically innovative, cost-efficient, and price-competitive manufacturers for China Adapter and SATA Adapter price, With the spirit of "credit first, development through innovation, sincere cooperation and joint growth", our company is striving to create a brilliant future with you, so as to become a most valuable platform for exporting our merchandise in China!

Technical Specifications
Warranty Information
Part number                                                                STC-BB025

Warranty                                                                     2-Years

Hardware
Bus Type                                                                     USB 3.0

Chipset ID                                                                   ASMedia - ASM1153E

Compatible Drive Types                                              SATA

Drive Size                                                                    2.5in

Fan(s)                                                                          No

Interface                                                                      USB 3.0

Number of Drives                                                        1

Performance
Type and Rate                                                             USB 3.0 - 5 Gbit/sSATA III (6 Gbps)

General Specifications                                                Max power of the attached drive is 900 mA

Max Drive Capacity                                                     Currently tested with up to 2TB 5900 RPM hard drives

UASP Support                                                             Yes

Connector(s)
Connector A                                                                1 -SATA Data & Power Combo (7+15 pin) Receptacle

Connector B                                                                1 -USB Type-A (9 pin) USB 3.0 Male

Software
OS Compatibility                                                          OS independent; No software or drivers required
Special Notes / Requirements

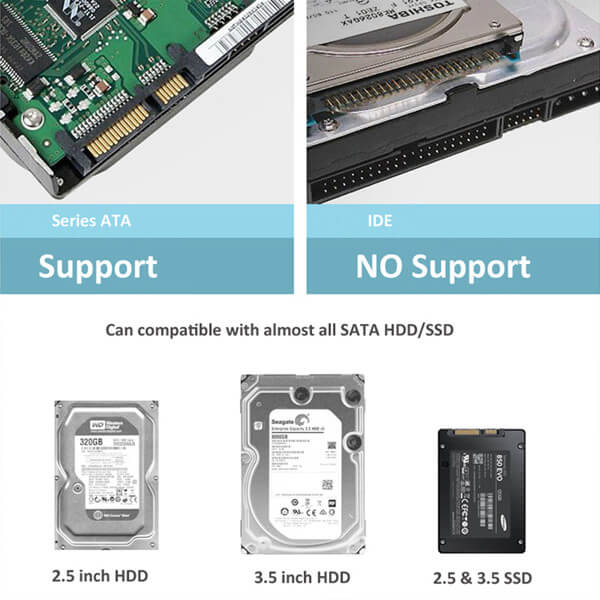

Cable will work only with 2.5″ / 3.5"SATA drives,5.25″ drives are not supported
Power
Power Source                                                              USB-Powered
Environmental
Humidity                                                                       40%-85%RH

Operating Temperature                                                0°C to 60°C (32°F to 140°F)

Storage Temperature                                                  -10°C to 70°C (14°F to 158°F)

Physical Characteristics
Cable Length                                                               9.7 in [500 mm]

Color                                                                            Black

Connector Style                                                           Straight to Straight

Product Weight                                                            1.4 oz [41 g]

Wire Gauge                                                                  28 AWG

Packaging Information
Package Quantity                                                        1Shipping (Package)

Weight                                                                          2.2 oz [61 g]

What’s in the Box

USB 3.0 to Sata Converter

Overview



USB 3.0 to Sata Adapter

The STC-BB025 USB 3.0 to Sata Converter lets you connects any standard 2.5 inch SATA Hard Drive or Solid State Drive (SSD), or any 3.5 inch SATA hard drive to a computer through USB 3.0 ports.It's a ideal for you to backup files or upgrade your notebook hard driver.



https://www.stc-cable.com/sata-to-usb-cable-adapter-with-uasp-usb-3-0-to-sata-converter-for-samsung-wd-2-5-3-5-hdd-ssd-hard-disk-usb-sata-adapter.html



For 3.5 inch hard disk, you need to select our with 12V power adapter one.
https://www.stc-cable.com/sata-to-usb-cable-adapter-with-uasp-usb-3-0-to-sata-converter-for-samsung-wd-2-5-3-5-hdd-ssd-hard-disk-usb-sata-adapter.html
.

The STC-BB025 is backed by a Stccable.com 2-year warranty and free lifetime technical support.





https://www.stc-cable.com/sata-to-usb-cable-adapter-with-uasp-usb-3-0-to-sata-converter-for-samsung-wd-2-5-3-5-hdd-ssd-hard-disk-usb-sata-adapter.html



Note:
you can select with or without a power adapter.
for 2.5 inches hard disk, no need power adapter.
but 3.5-inch hard disk must use extra power adapter together.
The Stccabe.com Advantage



  • Maximum portability with cable-style adapter, and no external power adapter required

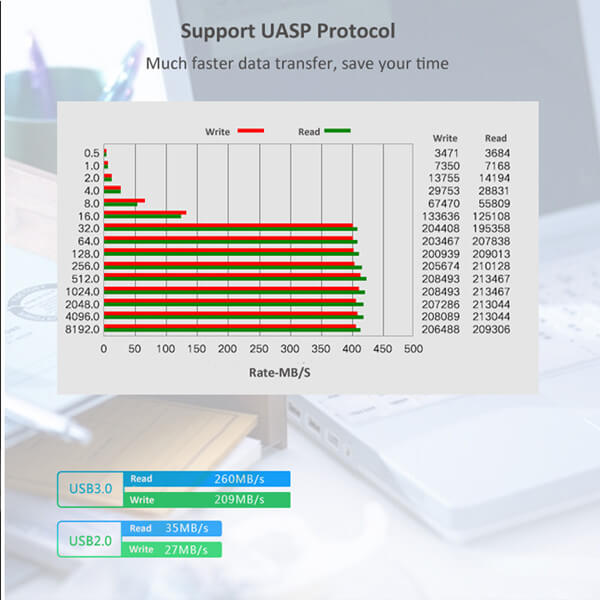

  • Take advantage of USB 3.0-enabled laptops or desktops with UASP for faster transfer speeds
  • Create an external storage solution on the go, for desktops, laptops or Ultrabook computers
  • Access any 2.5″ or 3.5" hard drive or solid state drive from any USB enabled computer, for data migration or drive cloning
  • Back up important data to an external storage device
  • Retrieve data from an old SATA drive
  • Use with an SSD drive to externally upgrade your laptop hard drive via USB 3.0
