Connector Plating                                                         Gold

Shell                                                                              SPCC, Plated Ni

Housing                                                                         PBT +30% G/F, Color: Black / White / Blue

HOOD                                                                            NA

NUT                                                                               Steel (If have)

b)  Dielectric Withstanding Voltage: 1000V AC

c)  Insulation Resistance: 1000MΩ/Min

d)  Contact Resistance: 30mΩ/Max

e)  Operaion Temperature: -20℃～+85℃

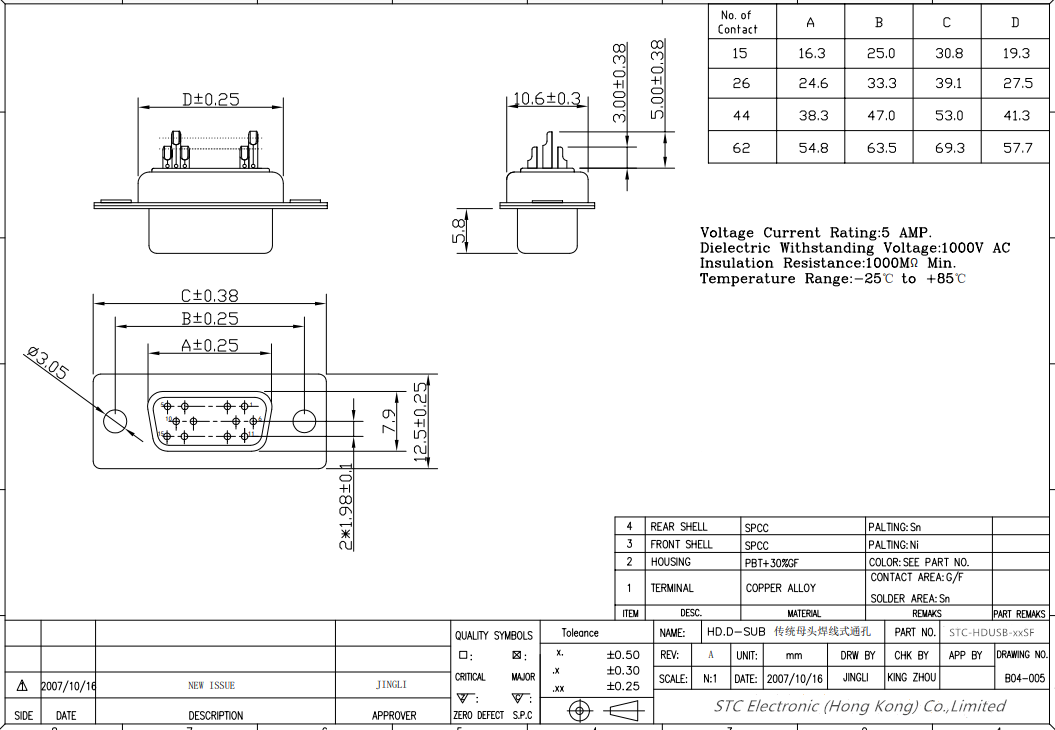

HD-SUB HDB 15 Pin 26 Pin 44 Pin 62 Pin female Connector Solder Type For cable assembly.

HDB15 HD-SUB connector with Solder Contacts, the solder contacts have a cavity into which the stripped and tinned wire is inserted and then soldered.

Description

This HDB 15/26/44/62 Female connector can be used for termination to control cables. It offers an easy solder type connection and can be used for custom pinout.They offer a permanent connection for a variety of applicatons.

HD-sub, rectangular D-shaped, HD-sub connectors deliver one of the most commonly used and reliable connectivity solutions for the transmission of data.

An HD-sub female connector is a socket-type D-sub connector with high density capabilities. D-sub connectors are used to connect devices in a variety of applications, including computer monitors, printers, and networking equipment. They are known for being reliable and standardized.
