FTDI USB RS232 cable
Applications:
- Connect Serial DB9 (9 PIN) Devices such as a modem to a USB port on your computer. Installed as a standard Windows COM port, Full RS-232 modem control signals, RS-232 data signals; TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, GND.
- Built with the industry-leading FTDI Chipset.supports Windows 10/ Windows 8.1/ Windows 8/ Windows 7/ Windows Vista/ Windows XP/ Windows 2000 / Linux 2.4 or above /Mac OS X 10.6 and above, OpenBSD 2.9 and later & FreeBSD 4.7 and above. Simple installation, plug and play.
- Wide Compatibility: USB to RS232 adapter works with modems, ISDN Terminal Adapters, digital cameras, label writers, palm PCs, PDAs, cashier registers, CNC, PLC controllers, tax printers, POS, bar code scanners, label printers, and devices with DB9 SERIAL ports. Support almost all serial COM ports.
Product Detail
Product Tags
| Technical Specifications |
| Warranty Information |
| Part number STC-PP008
Warranty 3-year |
| Hardware |
| Connector Plating Nickel |
| Connectors |
| Connector A 1 - USB Type A (4 pin) male
Connector B 1 - D-SUB (9 pin) male |
| Physical Characteristics |
| Cable Length 3 ft
Connector Style Straight Product Weight 0.4 lb [0.2 kg] |
| Packaging Information |
| Package Quantity 1Shipping (Package)
Weight 0.4 lb [0.2 kg] |
| What's in the Box |
FTDI USB RS232 cable
|
| Overview |
3ft USB 2.0 to RS-232 Male DB9 Serial Converter Cable
Compatible RS232 DevicesUSB to RS232 adapter works with modems, ISDN Terminal Adapters, digital cameras, label writers, palm PCs, PDAs, cashier registers, CNC, PLC controllers, tax printers, POS, bar code scanners, label printers, etc.
Compatible Operating SystemWindows 10, Windows 8, Windows 7, Vista, XP, and Windows 2000 (Windows 7,8,10 should auto-detect and install the drivers). Driver free for Windows 7/ 8/ 8.1/ 10 system, when the PC connects to the Internet, it should auto-detect and install the driver. you should download the drivers from our STC official site for other systems. MacOS X 10.6 and above (both computer and device must support macOS). Linux kernels 2.4.31 and later.

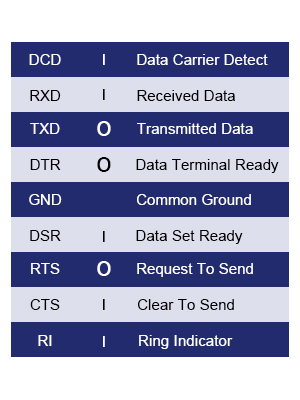

USB to RS232 DB9 Serial Converter Adapter Cable1. Before buying this cable, please check the pinouts in the picture to see if your RS-232 devices' are the same as ours. 2. USB 2.0 to RS-232 - Installed as a standard Windows COM port, Full RS-232 modem control signals, RS-232 data signals; TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, GND. 3. Install the provided CD-ROM driver to your PC or laptop to enable this adapter (you can also find the driver at our STC official site). |
