Connector Plating                                                         Gold

Shell                                                                              SPCC, Plated Ni

Housing                                                                         PBT +30% G/F, Color: Black / White / Blue

HOOD                                                                            NA

NUT                                                                               Steel (If have)

b)  Dielectric WithstandingVoltage: 1000V AC

c)  Insulation Resistance: 1000MΩ/Min

d)  Contact Resistance: 30mΩ/Max

e)  Operaion Temperature: -20℃～+85℃

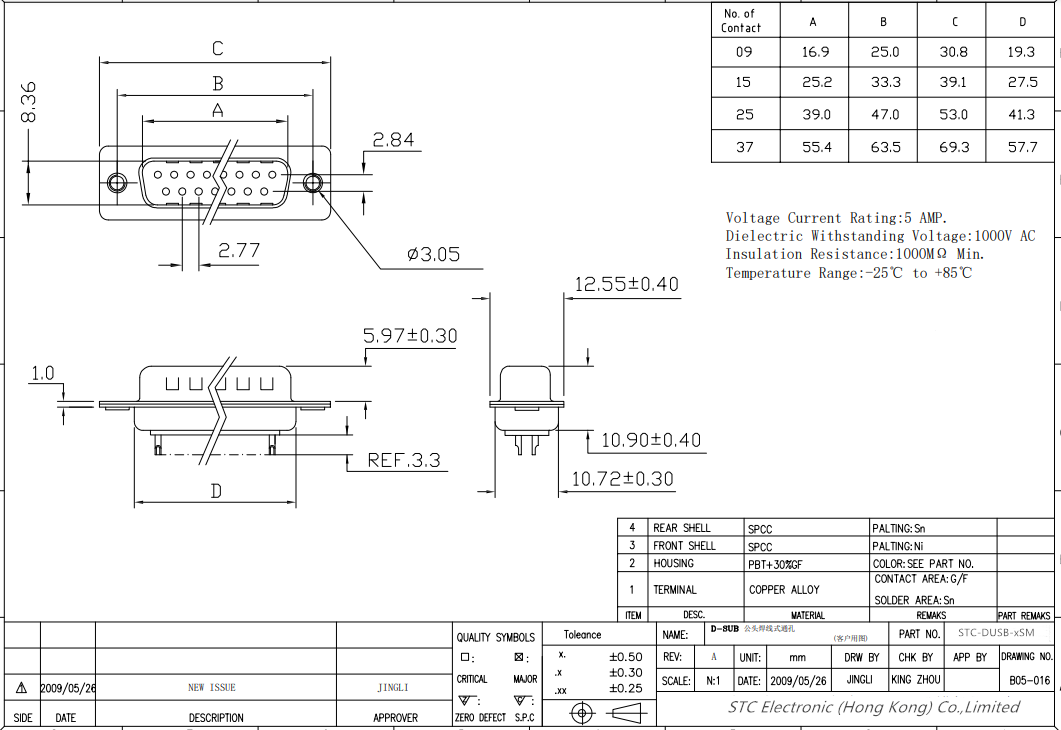

D-SUB DB 9 Pin 15 Pin 25 Pin 37 Pin male Connector Solder Type For cable assembly.

DB9 D-SUB Male connector with Solder Contacts, the solder contacts have a cavity into which the stripped and tinned wire is inserted and then soldered.

Description

This DB 9/15/25/37 male connector can be used for termination to control cables. It offers an easy solder type connection and can be used for custom pinout.They offer a permanent connection for a variety of applicatons.

D-sub, rectangular D-shaped, d-sub connectors deliver one of the most commonly used and reliable connectivity solutions for the transmission of data.

DB 9/15/25/37 pin connectors have been a common serial port connection for decades. Nine positions are available for data transfer and the shell automatically grounds to the chassis. These 9/15/25/37 pin connectors come in vertical or right-angle orientations for top or side entry of cables. D-subs are available in a wide range of plating options to meet application cycles plus a wide range of mounting options for very secure connections.
