Warranty                                                                       3- Years

Connector B                                                                  1 - DB-HD62 (62 pins, D-Sub) Female

Color                                                                             Black/Gray

Connector Style                                                            Straight

Product Weight                                                             0.15kg

Wire Gauge                                                                  UL2464 28AWG*62C, OD=10.00mm

Weight                                                                          0.16kg

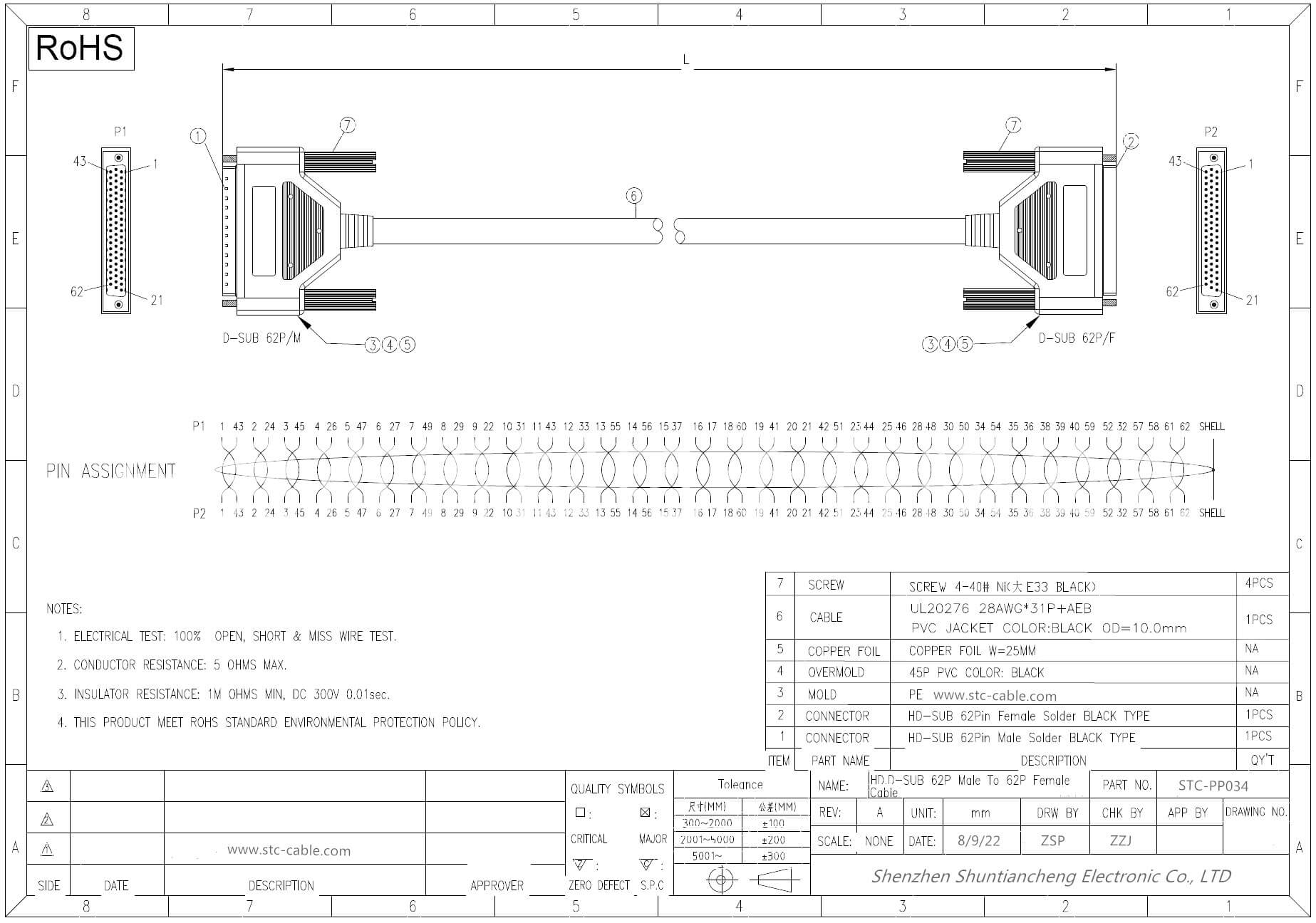

62 Pin extension cable, D-sub 62 Pin male to female cable HDB 62P d-sub 62Pin cable 1M 3FT for PMAC.

D-sub Connector DB62 male to Female cable

1> DB62 male to female connectors; lengths range from 1.0 ft to 50 ft; color is light gray or Black

2> Gold-plated contacts provide reliable connections with repeated mating cycles.

3> Double shielded for protection against EMI/RFI.

4> Hex nuts on female connectors are removable to expose 4-40 thumb screws.

5> Wired straight through for extending serial devices/peripherals.

6> This cable is a straight-through patch cable that features 62-pin D Sub DB62 connectors.

7> Available in multiple cable lengths to meet your specific requirements.

8> Cables can be easily cut in half and custom-terminated for prototyping.

9> RoHS compliant

STC high-density D-sub cable assemblies offer solid performance at economical prices. Double-shielded cable (copper braid plus aluminum mylar foil) provides maximum protection against data corrupting EMI/RFI. Molded backshells provide superior strain relief while 28 AWG conductors are wired straight through for ease of compatibility. Metal thumbscrews ensure fast and easy connections. Custom lengths and pinouts are available with modest minimum requirements.

General Description

These are extender cables for devices that use a DB-62HD (high-density) connector. All 62 pins are extended, and the wiring is straight-through (pin 1 to pin 1, 2 to 2, ...) including a foil shield around the cable and connecting the shells. The wire gauge is 28AWG. These cables are beige/grey. These cables have 3-row high-density connectors.

Cables with "V2" in the part number are constructed with internal pair twisting, in which pins 1&2 are twisted, pins 3&4 are twisted, etc, up through pins 61&62, all surrounded by foil and braid shielding and PVC jacket.

Technically, the correct term for a DB62HD connector is DC62, but that term is not commonly used.

Product Details

1> Available in Male-Female, Male-Male

2> All pins wired 1:1 (e.g. pin 1 to pin 1, pin 2 to pin 2, etc.)

3> 28 AWG conductors

4> Foil shielded
