Warranty                                                                       3- Years

Connector B                                                                  1 - DB-HD62 (62 pins, D-Sub) Male

Color                                                                             Black/Gray

Connector Style                                                            Straight

Product Weight                                                             0.15kg

Wire Gauge                                                                  UL2464 28AWG*62C, OD=10.00mm

Weight                                                                          0.16kg

D-sub 62 Pin male cable, D-sub 62Pin cable DB 62P Male Cable 1m D-SUB 62Pin cable for Motion control card.

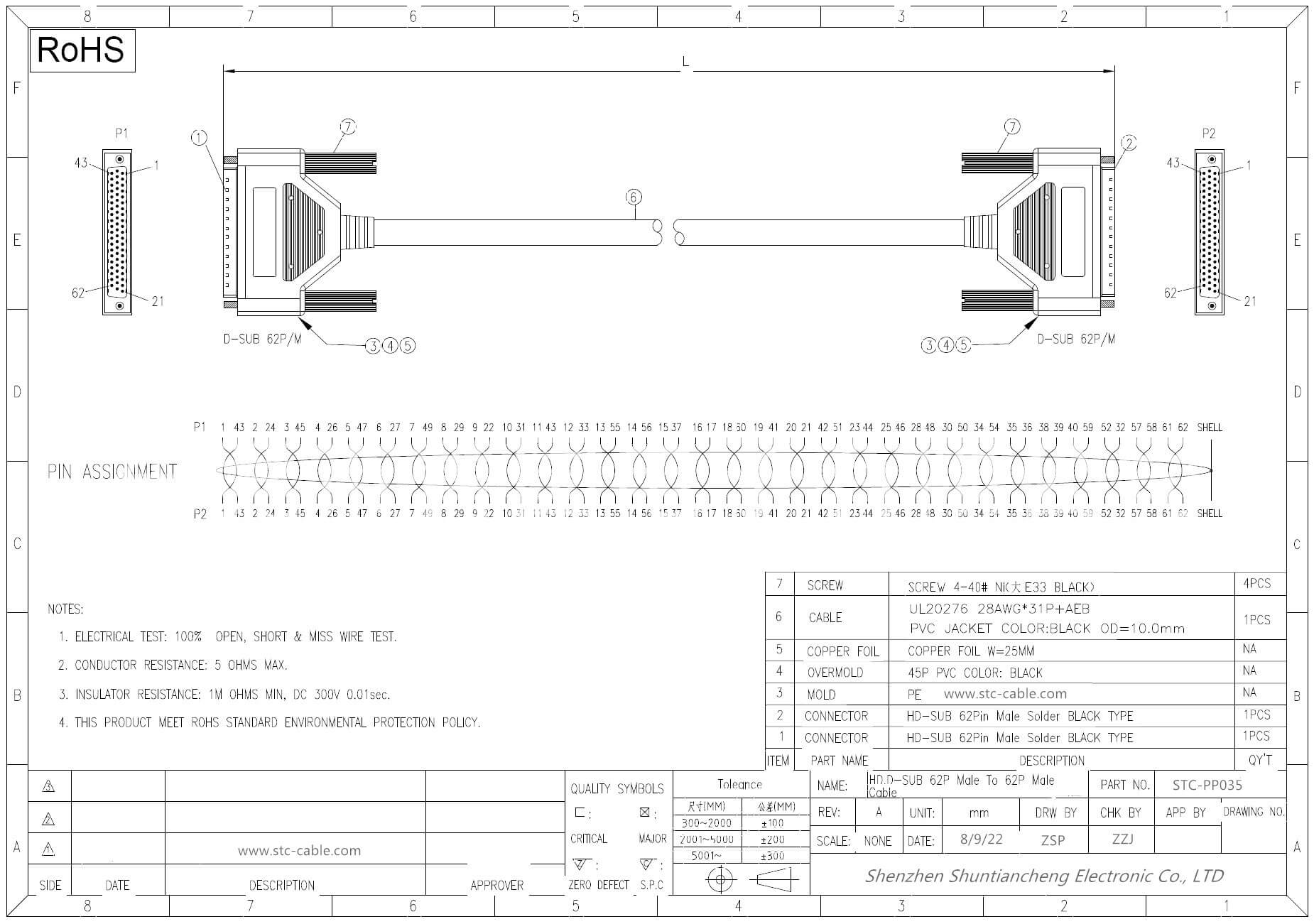

D-sub Connector DB62 male-to-male cable

1> DB62 male to male connectors; lengths range from 1.0 ft to 50 ft; color is light gray or Black

2> Gold-plated contacts provide reliable connections with repeated mating cycles.

3> Double shielded for protection against EMI/RFI.

4> Hex nuts on female connectors are removable to expose 4-40 thumb screws.

5> Wired straight through for extending serial devices/peripherals.

6> This cable is a straight-through patch cable that features 62-pin D Sub DB62 connectors.

7> Available in multiple cable lengths to meet your specific requirements.

8> Cables can be easily cut in half and custom-terminated for prototyping.

9> RoHS compliant

62-Pin High-Density D-Sub cable assemblies by STC provide the perfect I/O solution for your HD62 (DB62HD) d-sub-equipped devices. All of our 62-pin HD d sub cables come fully populated with gold-plated contacts and molded HD62 connectors and offer double shielding for excellent EMI suppression.

62-pin (HD62) Copper Shielded High-Density Male/Male D-Sub Cables by STC provide exceptional performance in commercial, industrial, or enterprise applications where longevity and repeated disconnects are required. Our fully assembled Deluxe HD D-Sub Cable integrates copper tape + aluminum mylar shielded 28 AWG data-grade wire with pre-terminated HD62 ( DB62HD) male d-sub connectors. Perfect for RS232 serial data, prototype, control, and low-voltage applications using the 62-pin HD62 interface. Note: Other cable lengths from this same part number series, if available, will also be displayed with their corresponding list prices. OEM-customized length, color, and label options are available by request.

General Description

These are extender cables for devices that use a DB-62HD (high-density) connector. All 62 pins are extended, and the wiring is straight-through (pin 1 to pin 1, 2 to 2, ...) including a foil shield around the cable and connecting the shells. The wire gauge is 28AWG. These cables are beige/grey. These cables have 3-row high-density connectors.

Cables with "V2" in the part number are constructed with internal pair twisting, in which pins 1&2 are twisted, pins 3&4 are twisted, etc, up through pins 61&62, all surrounded by foil and braid shielding and PVC jacket.

Technically, the correct term for a DB62HD connector is DC62, but that term is not commonly used.

Product Details

1> Available in Male-Female, Male-Male

2> All pins wired 1:1 (e.g. pin 1 to pin 1, pin 2 to pin 2, etc.)

3> 28 AWG conductors

4> Foil shielded
