Warranty                                                                       3- Years

Connector B                                                                  1 - DB-37 (37 pins, D-Sub) Male

Color                                                                             Black/Gray

Connector Style                                                            Straight

Product Weight                                                             0.12kg

Wire Gauge                                                                  UL2464 28AWG*37C, OD=8.0mm

Weight                                                                          0.13kg

D-sub 37Pin Male to Male cable DB 37pin cable 1M For Scanner/ Modem/ Printer/Plotter/Camera D-SUB 37Pin cable.

DB37 Male-to-Male Serial Extension Cable

1> DB 37-pin male-to-male cable, is a serial parallel printer connection cable, suitable for engineering wiring, and computer connection cable, this serial extension cable can be used for any device that uses a DB37 connector.

2> DB37 37Pin Each cable is shielded and designed with fully molded thumbscrew connectors for quick and easy connections every time, it features a sturdy design and strict quality standards.

3> All 37 wires are directly connected through pin pins for easy compatibility and to expand your existing cables, it uses pure copper gold-plated pins for maximum connectivity and signal transmission.

4> 120% coverage of aluminum foil shielding layer, each connector has 37 1-to-1 matching conductors, which enhances the anti-interference effect of the cable and ensures stable signal transmission.

5> High-quality PVC outer quilt material, can withstand the high temperature of 80 degrees, and withstand voltage of 300 volts. The connector adopts pure copper pins, which are not oxidized and have no attenuation in transmission, which is more durable.

General Description

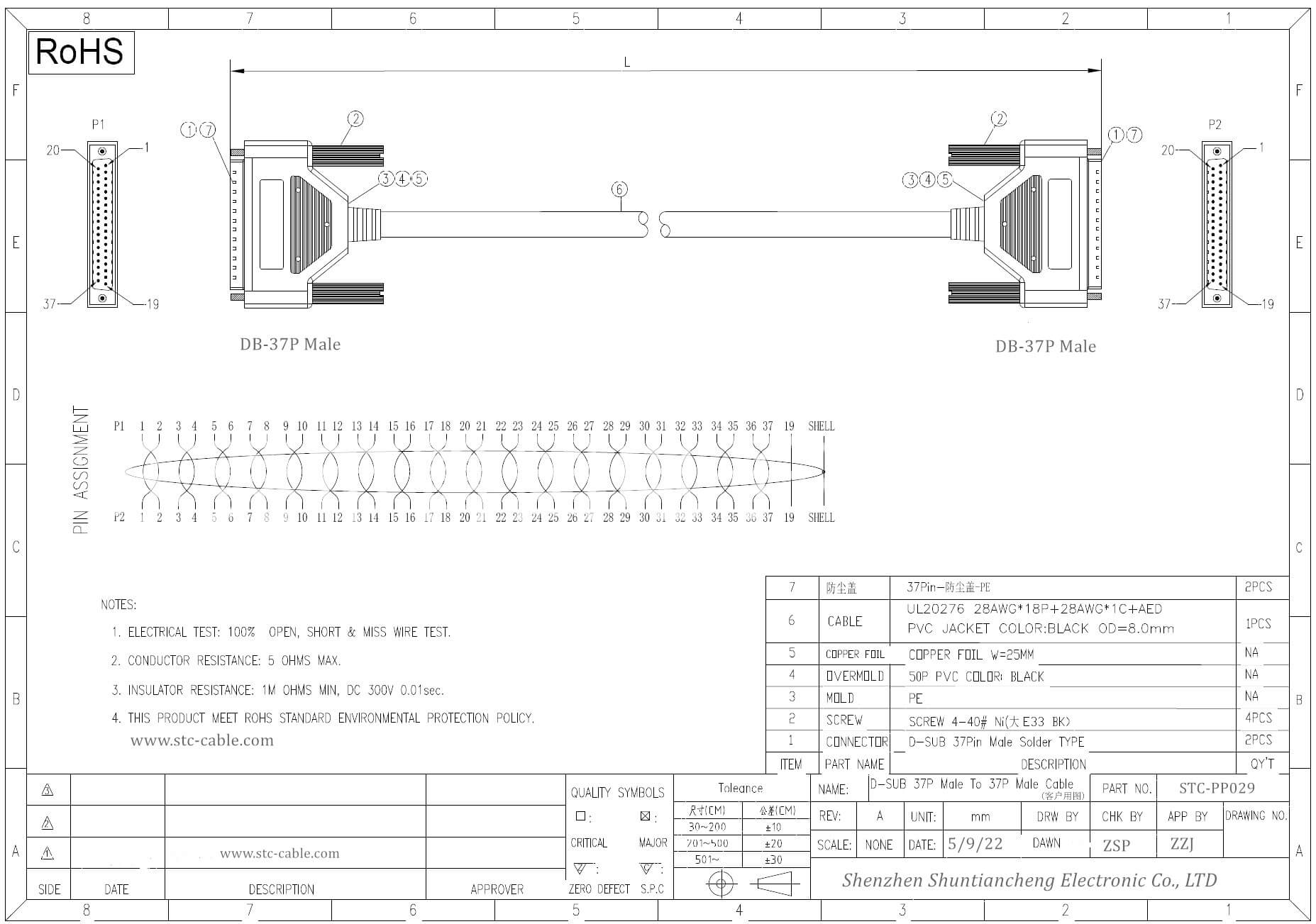

These are extender cables for any device that uses a DB-37 connector. All 37 pins are extended, and the wiring is straight-through (pin 1 to pin 1, 2 to 2, ...) including a foil shield around the cable and connecting the shells. The wire gauge is 28AWG.

Cables are available with the following end connectors:

Product Details

1> Available in Male-Female, Male-Male

2> All pins wired 1:1 (e.g. pin 1 to pin 1, pin 2 to pin 2, etc.)

3> 28 AWG conductors

4> Foil shielded
