D-SUB 37Pin Male to Female cable DB 37pin cable

D-SUB 37Pin Male to Female cable DB 37pin cable

Applications:

  • Connectors: 1x DB37 male, 1x DB37 female.
  • Fully shielded w/AL-Foil against outside EMI/RFI interference.
  • Gold plating contacts, fully molded ends with thumbscrews.
  • Straight-through design: Pin-Out: 1-1 2-2 3-3,……, 8-8 37-37 G-G.
  • Fully molded connectors with thumbscrew provide you with a quick and easy connection.
  • Gauge: 28 AWG
  • Length: 1/1.5/3/5 Meters or Customized


Product Detail

Product Tags

Technical Specifications
Warranty Information
Part number                                                                  STC-PP028

Warranty                                                                       3- Years

Hardware
Connector Plating                                                         Nickel/Gold
Connectors
Connector A                                                                  1 - DB-37 (37 pins, D-Sub) Female

Connector B                                                                  1 - DB-37 (37 pins, D-Sub) Male

Physical Characteristics
Cable Length                                                                1/1.5/3/5m or Customized

Color                                                                             Black/Gray

Connector Style                                                            Straight

Product Weight                                                             0.12kg

Wire Gauge                                                                  UL2464 28AWG*37C, OD=8.0mm

Packaging Information
Package Quantity                                                         1Shipping (Package)

Weight                                                                          0.13kg

What's in the Box

D-sub 37Pin Male to Female cable DB 37pin cable 1M For Scanner/ Modem/ Printer/Plotter/Camera D-SUB 37Pin cable.

Overview

DB37 Male to Female Serial Extension Cable



1> Make sure to back up your files regularly. Extend your cable connection for your tape backup for reliable data storage.

2> Wired straight through for extending serial devices/peripherals.

3> 360 degree fully shielded for protection against EMI/RFI

4> Gold-plated contacts provide reliable connections with repeated mating cycles

5> We could according to customers' design specs make wire harness

6> DB 37-pin extension cable is a serial parallel printer connection cable, suitable for engineering wiring, and computer connection cable, this serial extension cable can be used for any device that uses a DB37 connector.

7> DB37 37Pin Each cable is shielded and designed with fully molded thumbscrew connectors for quick and easy connections every time, it features a sturdy design and strict quality standards.

8> All 37 wires are directly connected through pin pins for easy compatibility and to expand your existing cables, it uses pure copper gold-plated pins for maximum connectivity and signal transmission.

9> 120% coverage of aluminum foil shielding layer, each connector has 37 1-to-1 matching conductors, which enhances the anti-interference effect of the cable and ensures stable signal transmission.

10> High-quality PVC outer quilt material, can withstand high temperatures of 80 degrees, and withstand a voltage of 300 volts. The connector adopts pure copper pins, which are not oxidized and have no attenuation in transmission, which is more durable.



https://www.stc-cable.com/d-sub-37pin-male-to-female-cable-db-37pin-cable.html



General Description

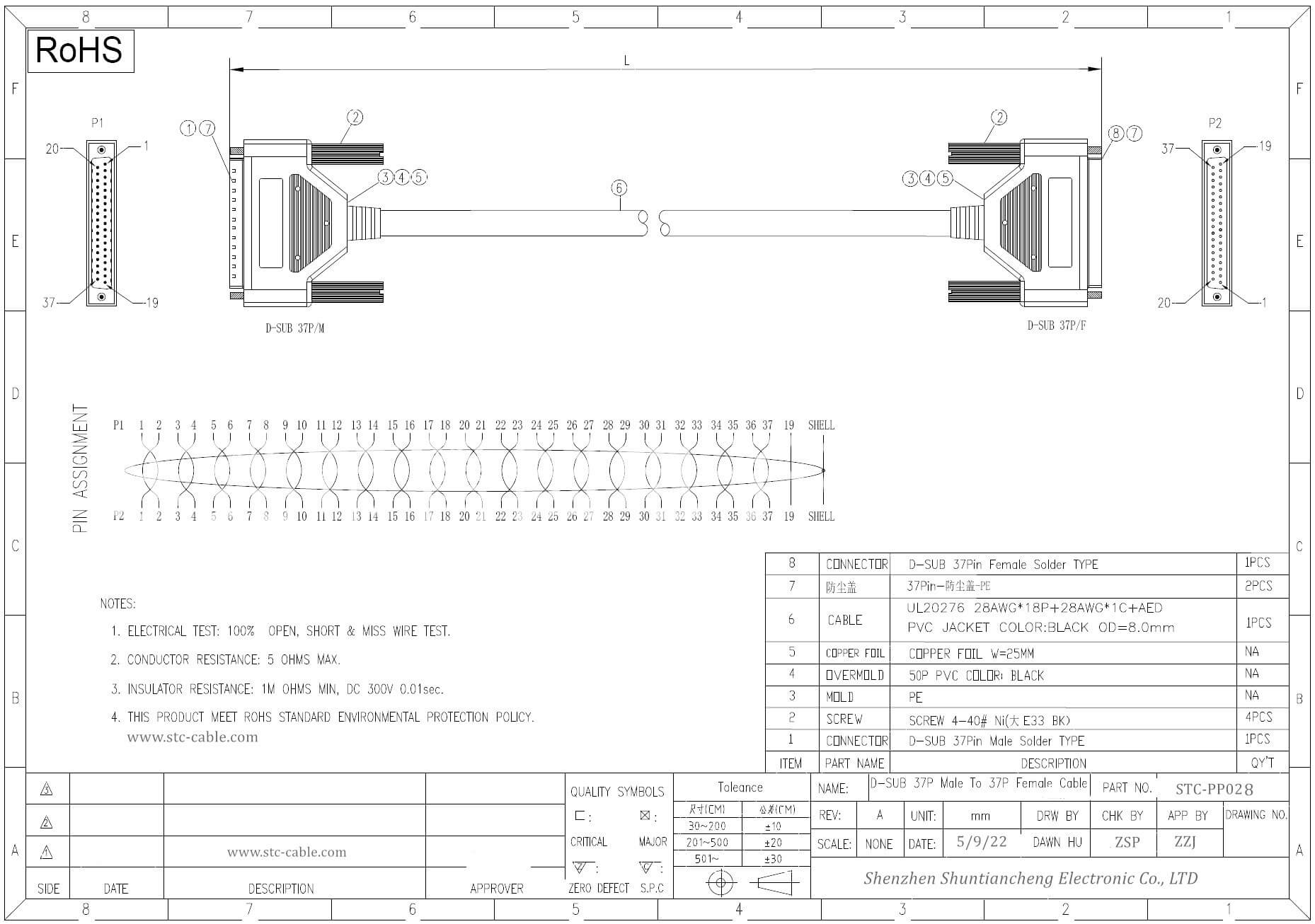

These are extender cables for any device that uses a DB-37 connector. All 37 pins are extended, and the wiring is straight-through (pin 1 to pin 1, 2 to 2, ...) including a foil shield around the cable and connecting the shells. The wire gauge is 28AWG.



Cables are available with the following end connectors:





Product Details

1> Available in Male-Female, Male-Male

2> All pins wired 1:1 (e.g. pin 1 to pin 1, pin 2 to pin 2, etc.)

3> 28 AWG conductors

4> Foil shielded
