Warranty                                                                       3- Years

Connector B                                                                  1 - DB-25 (25 pins, D-Sub) Female

Color                                                                             Black/Gray

Connector Style                                                            Straight

Product Weight                                                             0.11kg

Wire Gauge                                                                  UL2464 28AWG*26C, OD=7.5mm

Weight                                                                          0.12kg

DB25 Female to Female cable is ideal for extending your existing parallel cables to connect to a modem or a switch box.

DB25 F/F Extension Straight Thru Molded Cable

1> Designed for RS-232 serial or parallel applications. Easily connect your printer, modem, or other DB25 device to a switch box.

2> DB25 Female-to-Free cables are designed for RS-232 serial or parallel extension applications.

3> Connect your printer, modem, or other DB25 serial/parallel devices to a switch box.

4> Each cable is constructed with molded connectors and foil shielding for EMI/RFI protection.

5> Fully molded connectors with thumbscrew provide you with a quick and easy connection.

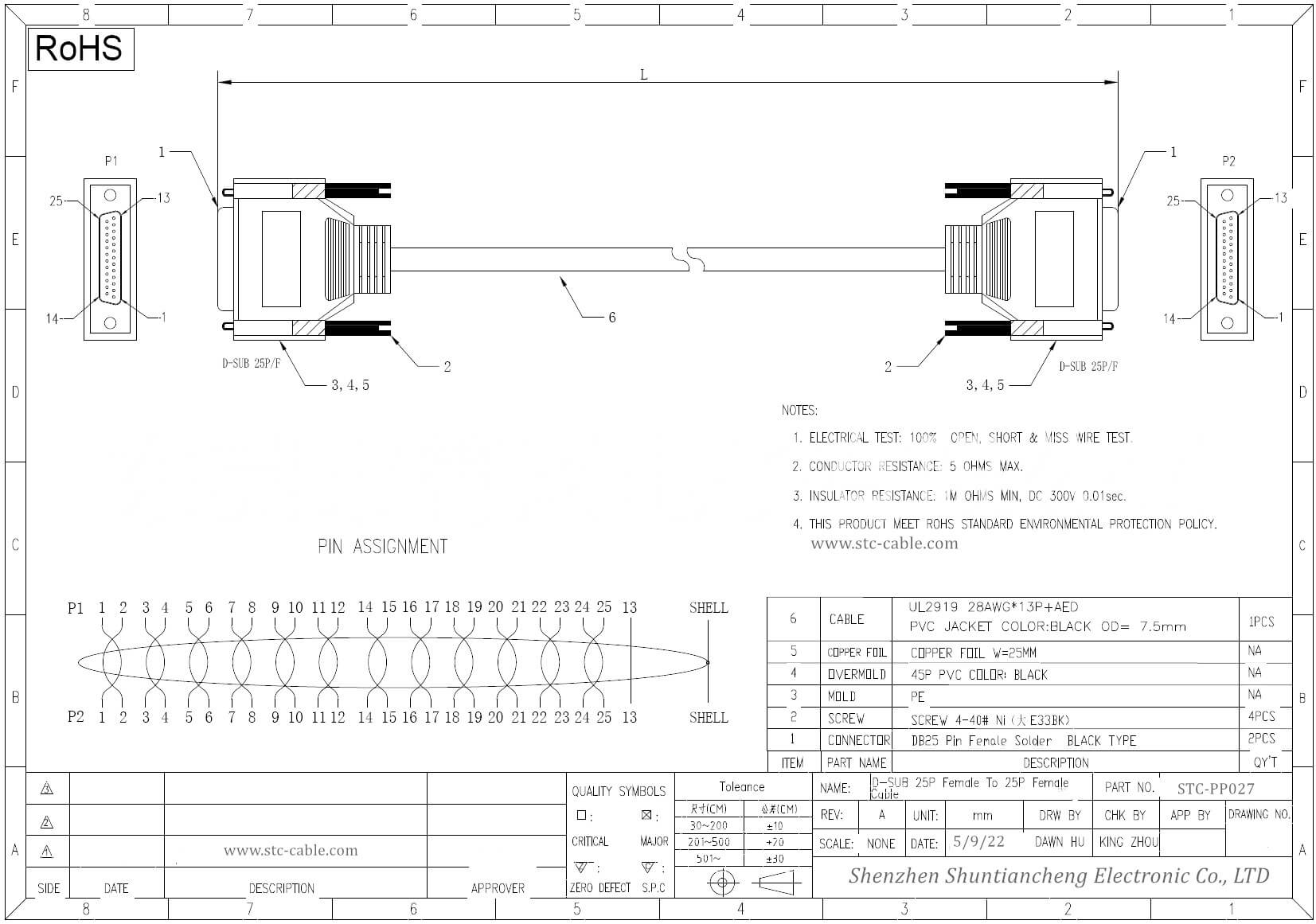

6> Wiring straight through pin-to-pin.

7> Connectors: DB25 Female to DB25 Female

General Description

These are extender cables for any device that uses a DB-25 connector. They are available in a variety of lengths and combinations. All 25 pins are extended, and the wiring is straight-through (pin 1 to pin 1, 2 to 2, ...); they include a foil shield around the cable and connecting the shells. The wire gauge is 28AWG.

Product Details

1> Available in Male-Female, Male-Male, and Female-Female

2> All pins wired 1:1 (e.g. pin 1 to pin 1, pin 2 to pin 2, etc.)

3> 28 AWG conductors

4> Foil shielded
