Big Discount 1080 P HDMI Adapter of 360 Degree Rotation

Big Discount 1080 P HDMI Adapter of 360 Degree Rotation

Applications:

  • Support operating system: Windows 7 (32/64 bit) Windows 8 8.1, Windows10
  • VGA output resolution support: 800*600 1280*720 1360*768 1600*1200 1920*1080
  • No external power need USB power supply. VGA resolution: Maximum: 1920x1080p/60hz
  • Supports extend, duplicate, primary and secondary screen switching and rotating four kinds of display modes
  • Note: This product needs original USB3.0 computer interface in order to achieve a resolution of 1920 * 1080, if using USB2.0 or HUB USB3.0 interface, the resolution can only reach 800 * 600


Product Detail

Product Tags

We insist within the theory of development of 'High top quality, Performance, Sincerity and Down-to-earth working approach' to provide you with exceptional provider of processing for Big Discount 1080 P HDMI Adapter of 360 Degree Rotation, With advantage of industry management, the company has generally been committed to supporting customers to become the market place leader in their respective industries.
We insist within the theory of development of 'High top quality, Performance, Sincerity and Down-to-earth working approach' to provide you with exceptional provider of processing for China Adapter and HDMI Adapter price, For more than ten years experience in this filed, our company has gained high reputation from home and abroad. So we welcome friends from all over the world to come and contact us, not only for business, but also for friendship.

Technical Specifications
Warranty Information
Part number                                                                  STC-LL013

Warranty                                                                       2-Years

Hardware
Output Signal                                                                VGA

Industry Standards                                                       USB 3.0 Compliant

USB Pass-Through                                                       No

Performance
Supported ResolutionsWidescreen(16/32 bit):
1920×1200, 1920×1080, 1680×1050, 1600×900, 1440×900,1360×768, 1280×800, 1280×768, 1280×720Standard(16/32 bit):
1600×1200, 1400×1050, 1280×1024, 1280×960, 1152×864, 1024×768, 800×600

Wide Screen Supported                                                Yes

Connectors
Connector A                                                                  1 -USB Type-A (9 pin) USB 3.0 Male Input

Connector B                                                                  1 -VGA (15 pin, High Density D-Sub) Female Output

Software
OS Compatibility :Windows® 10 (32/64)
Windows 8 / 8.1 (32/64)
Windows 7(32/64)
Windows Vista (32/64)
Windows XP (32/64)
Special Notes / Requirements
Note:    One available USB 3.0 port
Power
Power Source                                                                USB-Powered
Environmental
Humidity                                                                        < 85% non-condensing

Operating Temperature                                                 0°C to 50°C (32°F to 122°F)

Storage Temperature                                                   -10°C to 75°C (14°F to 167°F)

Physical Characteristics
Products Length                                                            19.7 in [500 mm]

Color                                                                              Black

Enclosure Type                                                              Plastic

Product Weight                                                              3.4 oz [96 g]

Packaging Information
Package Quantity                                                          1Shipping (Package)

Weight                                                                            0.6 lb [0.3 kg]

What’s in the Box

USB to VGA Adapter

Overview

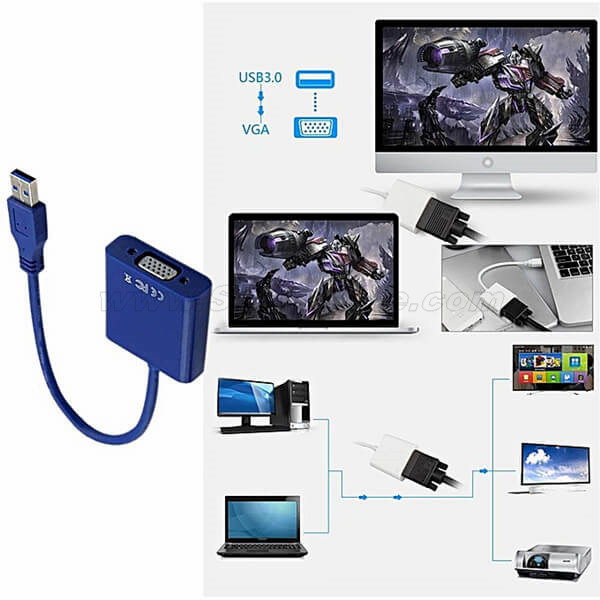

USB 3.0 To VGA converter

The STC-LL013 USB 3.0 To VGA External Graphic Card Video Converter Adapter lets you add a high-resolution (1920×1200) external VGA output to your desktop or laptop computer, using an available USB 3.0 port.

USB 3.0 to VGA Adapter is TAA compliant and turns a USB 3.0 port into a VGA output port with 1920x1200 (WUXGA) video support. The adapter features built-in USB 3.0 pass-through, which offers a connection port in place of the USB port used for connecting the VGA adapter - an ideal workaround for Ultrabook or laptop users where only a limited number of USB ports are available.

Functioning as an external graphics card, this  USB to VGA adapter provides a convenient way to add multi-monitor capability to a USB 3.0-enabled desktop or laptop computer (optimal performance from USB 3.0, backward compatible with USB 2.0).

Leveraging the high-bandwidth (5 Gbps) SuperSpeed USB 3.0 interface, the adapter delivers smooth, high-definition content to your VGA display / projector. The adapter can be used to mirror your primary desktop, showing the same image on each display, or to extend your desktop to double your workspace and increase your productivity.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Recommended System Requirements:
CPU: Quad Core 2.4GHz or Higher (i5 recommended)
RAM: 4GB or higher

From the Manufacturer

USB 3.0 to VGA Adapter with 1-Port USB Hub - 1920x1200 External Video Card / Multi-Monitor Adapter

Connect a VGA-equipped display through USB 3.0, without losing access to a USB port on a laptop or ultrabook

Connect a VGA Display through an available USB 3.0 port to enjoy multiple monitor efficiency. The adapter features a Built-in USB 3.0 pass-through hub that replaces the USB 3.0 port used to connect the adapter - an ideal workaround for Ultrabook or laptop users with a limited number of USB ports.



1. External USB-to-VGA video card solution - for use with monitors that support 1920x1200 resolutions
  • Add extra VGA monitors to your desktop computer without having to open the computer case and risk to void manufacturer warranty
  • The only way to quickly expand your desktop over several monitors for laptop users
  • Cost effective solution to expand your computers display capabilities
2. Keep a USB 3.0 port available on your Ultrabook or slim laptop, while USB32VGAEH is in use
  • Add VGA video and retain the USB 3.0 port on computers where ports are limited
  • Connect an additional external USB 3.0 device using the same USB port
  • Add multiple USB display adapters (up to 5) without losing a single USB 3.0 port
3. Connect an extra VGA monitor in minutes
  • Insert the Driver CD or download the latest drivers from Startech.com, follow the on-screen instructions.
  • While your computer re-starts connect the VGA cable from your secondary monitor to the USB-to-VGA adapter
  • Once windows has fully re-loaded plug the USB video adapter and follow the on-screen instructions and enjoy your new desktop real estate
4. Add workspace for a wide range of applications including web browsing, multi-media presentations and video playback
  • Ideal for a wide range of applications including web browsing, multi-media presentations and video playback
  • Leave your primary display for the performance demanding applications i.e 3D gaming or video editing
  • Up to 5 displays can be added (5 USB32VGAEH adapters needed)
5. Increase productivity with multiple monitors
  • Multiple monitors have consistently proven to increase productivity and efficiency
  • Run multiple applications on different screens
  • Can be used on VGA monitors and/or VGA projectors

https://www.stc-cable.com/usb-3-0-to-vga-external-graphic-card-video-converter-adapter.html

Customer Feedback:

"Obligated to leave a review here - there is absolutely no driver on the StarTech support site, and what I received says it is windows compatible only. This is NOT actually the case. If you look at the chipset, there are multiple products around that are the same chipset and Mac compatible, so you just need one of those drivers. The SIIG page has drivers for various Mac OS X versions, including 10.11.1. I'm not sure Amazon will take a link, so basically you need to go to the SIIG website and look for their JU-DV0211-S1 drivers, or just buy that product instead. The chipset on this particular product is the Trigger 2 T2-285A chipset from Magic Control Technology corp and you can also go to their website and look for the latest drivers for their UV-A8301 product. The magic word is this is the "Trigger 2" driver that you need. When the rest of the reviews say you'll need to hunt it down, better believe it! Installation and restart required, and you'll have to bypass the driver security in 10.11 by turning it off under system preferences / security".



"Just got the USB 2.0 version, works well except when I use a Dell E2211Hc flat screen LCD as the 2nd monitor, the pointer only shows up upon a "restart"....in other words, if you log out (as either an Admin or other user) and then log back in, then the pointer no longer shows up on the 2nd screen.....once you restart again, then it will show back up and work right.

EDIT 6-2-17: When I switched to an older Samsung SyncMaster 171s flat screen LCD monitor for the 2nd screen, the pointer problem mentioned above goes away. I am thinking about getting a new ASUS monitor and trying that since the SyncMaster is basically square and not wide-screen.

I searched and found the following possible solution for the pointer issues with the Dell Monitor (but it did NOT help or improve anything):
a. Remove the check from the Display Pointer Trails box.
b. Remove the check from the Enhance Pointer Precision box.
c. Click "Apply".



"I've tried this adapter on two PCs, both running the latest version of Windows 10. In both cases, Windows disabled the driver because it had problems. I used the latest driver from StarTech's Web site. I installed it per directions on their Web site. I tried a second time on each machine installing it in Windows compatibility mode. I tried removing the driver and using the driver that Windows supplied. One of the PCs was a Lenovo laptop. The other was an Asus desktop".



"This is exactly what I was looking for. I needed something that would convert my USB port on my Mac to a second video out for a stage display using ProPresenter 6 and this works great! I was quite sceptical about it at first. It comes with a DVD with Windows drivers on it but after some research I found the driver that works for Mac.

I would give it five stars if I didn't have to go hunt for the right driver and then download several to see which would work".
