3.96 Pitch 3.96mm Molex 3069 Wire To Board Connector wire harness cable
Applications:
- Cable Length & Termination customized
- Pitch: 3.96mm
- pins: 2 to 15 positions
- Material: PA66 UL94V-2
- Contact: Brass or Phosphor Bronze
- Contact Area: Tin 50u “over 100u” nickel
- Solder Tail Area: Matte tin/Underplating: Nickel
- Current rating: 5A (AWG #18 to #24)
- Voltage rating: 250V AC, DC
Product Detail
Product Tags
| Technical Specifications |
| Specifications |
| Series: STC-003960001 Series
Contact Pitch: 3.96mm No. of Contacts: 1 to 15 positions Current: 5A (AWG #18 to #24) Compatible: Cross Molex 2139/3069 Connector Series |

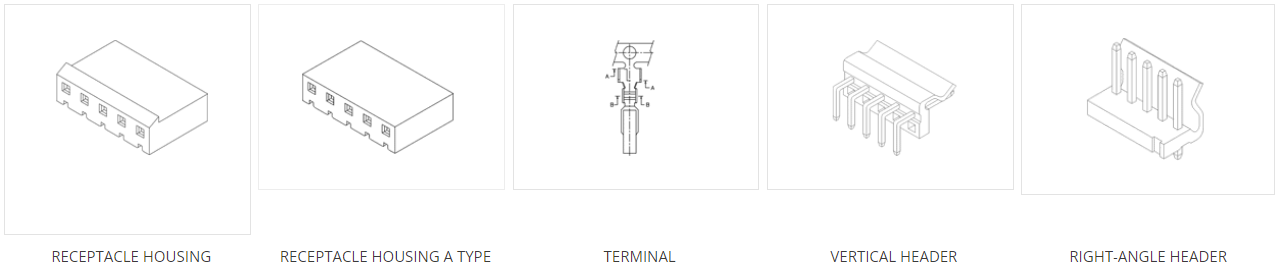

| Select Components |
 |
| Cable Assemblies Refer |
 |
| General Specification |
| Current Rating: 5A
Voltage Rating: 250V Temperature Range: -20°C~+85°C Contact Resistance: 20 Ohm max Insulation Resistance: 1000M Omega Min Withstanding Voltage: 1500V AC/minute |
| Overview |
Pitch 3.96mm Molex 3069 and 2139 Wire To Board Connector wire harness cable
|
| Features |
|
| Advantages |
|
Power application KK 396 connectors are ideal for use in industries such as automotive, medical, and consumer. Dual-cantilever terminals offer a square-post contact area that interfaces with the male pin header through a spring-like contact.
|
