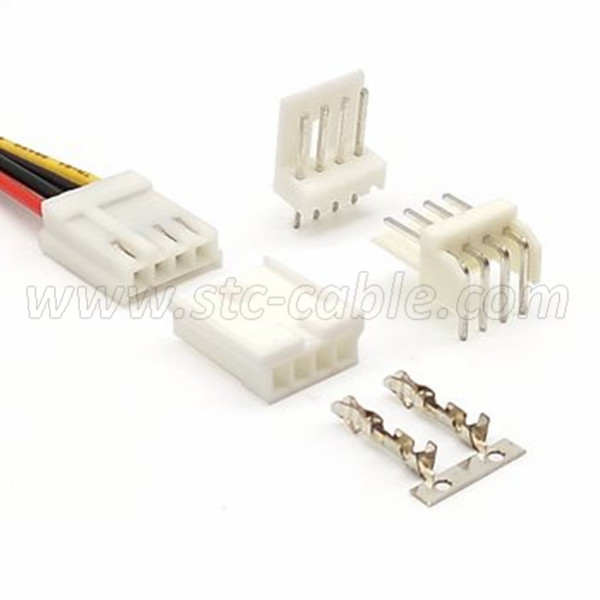

2.50mm Pitch AMP 171822 171825 Type Wire To Board wire harness
Applications:

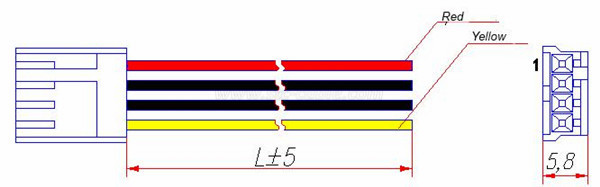

- Cable Length & Termination customized
- Pitch: 2.5mm
- pins: 2 and 4 positions
- Material: PA66 UL94V-2
- Contact: Brass or Phosphor Bronze
- Contact Area: Tin 50u “over 100u” nickel
- Solder Tail Area: Matte tin/Underplating: Nickel
- Current rating: 3A (AWG #20 to #26)
- Voltage rating: 250V AC, DC
Product Detail
Product Tags
| Technical Specifications |
| Specifications |
| Series: STC-002545001 Series
Contact Pitch: 2.5mm No. of Contacts: 2 & 4 positions Current: 3A (AWG #20 to #26) Compatible: Cross AMP 171822 Connector Series |
| Select Components |
 |
| Cable Assemblies Refer |
 |
| General Specification |
| Current Rating: 3A
Voltage Rating: 250V Temperature Range: -20°C~+85°C Contact Resistance: 20 Ohm max Insulation Resistance: 1000M Omega Min Withstanding Voltage: 1000V AC/minute |
| Overview |
Pitch 2.50mm AMP171822 Type Wire To Board Connector wire harness cable
|
| Features |
| Dual-cantilever terminal Ensure reliable electrical contact and performance with low insertion force Polarizing header back walls, polarizing ribs on receptacles, and polarizing pegs Prevent accidental mids-mating during assembly Optional kinked PC tail Maintains header positioning during soldering Friction-lock headers and receptacles Ensure secure mating and prevent accidental disengagement KK RPC headers are offered in high-temperature nylon and reflow matte-tin plating Allow for 260ºC wave and reflow solder processing Tape-and-reel packaging with pick-and-place caps available Enables highly automated termination processing and accurate PCB placement
|
| Advantages |
|
Service
|
| Application |
|
Automotive Consumer Data/Communications MedTech
|
