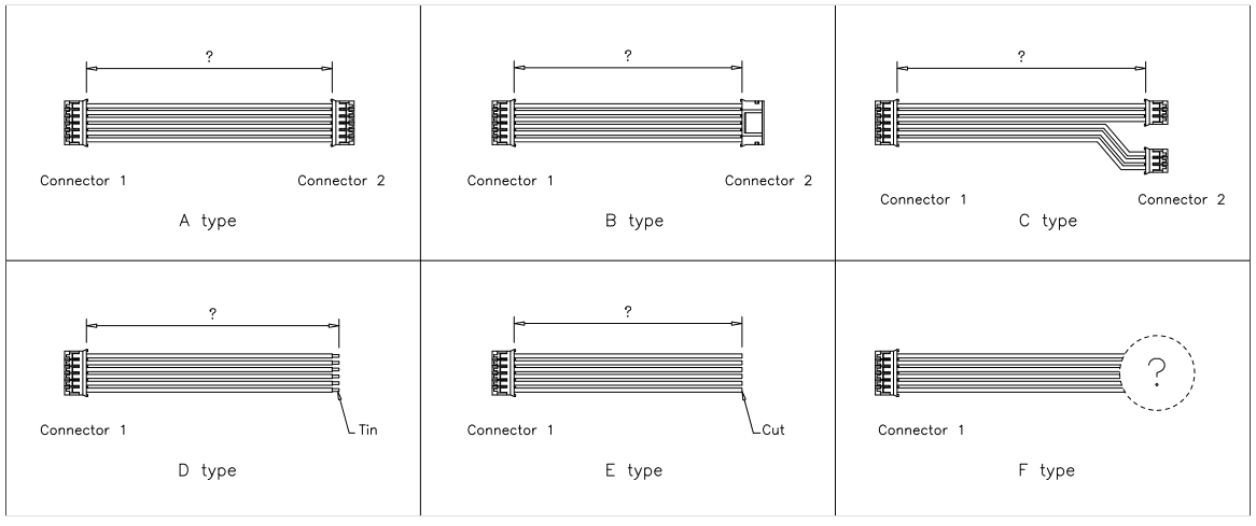

2.00 Pitch 2.00mm JST PH type Wire to Wire Wire harness

Contact Pitch:                                                               2.00mm

No. of Contacts:                                                            2-16 positions

Current:                                                                        2A (AWG #22 to #28)

Compatible:                                                                  Cross JST PH Connector Series

Voltage Rating:                                                              250V

Temperature Range:                                                      -25°C~+85°C

Contact Resistance:                                                      20m Omega Max

Insulation Resistance:                                                   1000M Omega Min

Withstanding Voltage:                                                    800V AC/minute

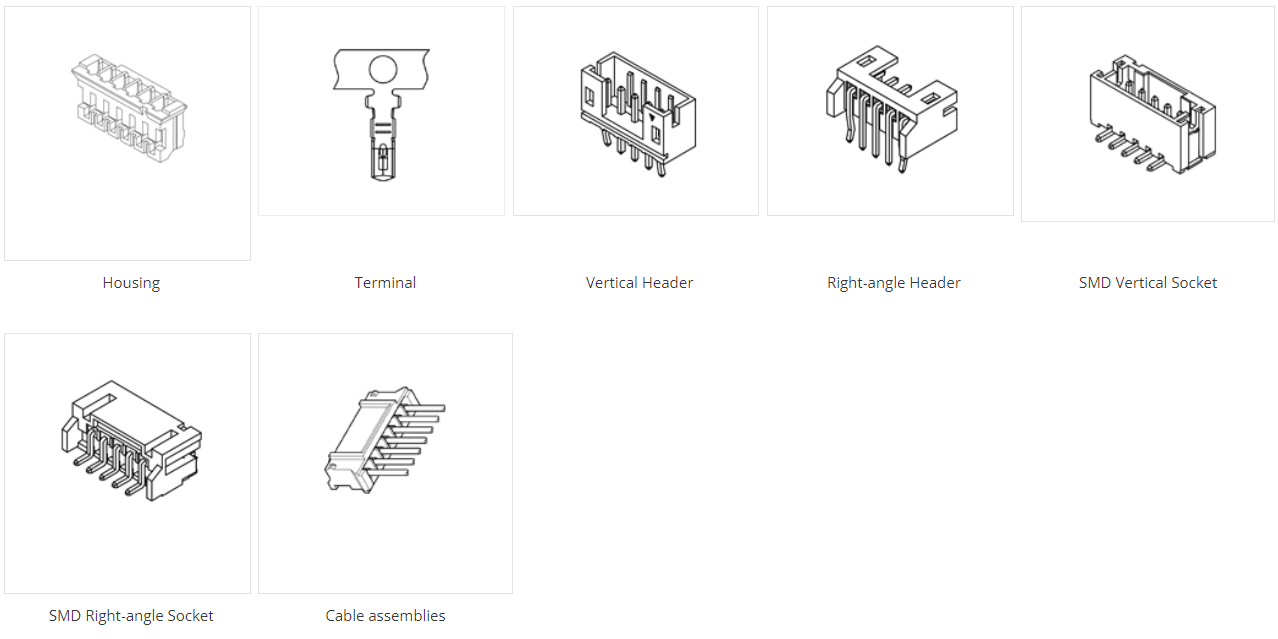

Pitch 2.00mm 2.00mm JST PH wire to board connector

1>The 2.0 mm JST PH connector is a low-profile and compact component delivering dependable service in requirements for high-density connection to printed circuit boards.

2>Designed harsh environments that are frequently subjected to heat and vibration such as in heavy equipment vehicles and batteries

3>Delivers up to a current rating of 2.0 A and 250 V, applicable for American Wire Gauge (AWG) #24, #25, #26, #27, #28, #30, #31, #32.

4>Enclosing this connector is a crimp-style lock designed by STC and a special configuration that prevents users from inverted insertion.

Offers Design Flexibility in a Variety of Configurations

This is offered in different models and various dimensions, with top or side entry configurations that might suit your specific needs.

Top entry configuration consumes a minimum of 8 mm x 4.5 mm mounting height and width, respectively; while side entry configuration consumes a minimum of 4.8 mm x 9.6 mm mounting height and width, respectively.

Over-molded Shell Feature Designed for High Density, High-Speed Harness

Manufactured with higher infill housing, the 2.0mm connector is suitable for high-density and crowded applications, withstanding higher strain and mechanical stress.

A Variety of models to choose from

In addition to the above flexibility in configurations of the 2.0 mm pitch connector, STC also offers this connector with a different number of circuits ranging from 2 to 16 which would suit your specific needs.

An Added Layer of Product Durability and Connector Reliability

No alloy was used in fastening the wires to the board but the use of a crimping method, which made it more flexible and mechanically stronger.

The crimps are well-engineered to be air-tight, preventing oxygen and moisture from reaching the metals and causing corrosion. Thus, the connector can be easily removed from the head without holding the wires.

Furthermore, it prevents the cables from being easily disconnected due to entangled routing, heavy loads, or vibration.

Robust and Ruggedized Terminal Enhancements

Reliable electrical connection, even under conditions of low current and low voltage, is guaranteed with its two-point contact design.

Surface Mount Option with Strong Solder Tabs

The two solder tabs ensure the retention of the header to PCB connection and act as a strain relief for the SMT solder tails minimizing the chance of solder joint breakage.

Optimized Safety Feature for Electrical Shock Hazard

With its improved product enhancement, the connector has the capability of withstanding a voltage of 500 V AC per minute, which means that the insulation is sufficient to protect the user from electrical shock, overheating, and fire.

Savvy Material and Finish

The header contact is made up of copper alloy, tin plated over a phosphor bronze material.

The housing is made of Nylon66 UL94V-0 natural ivory. These housings are available with or without protrusions.

The wafer is made up of Nylon66/46 UL94V-0.

The solder tabs are made up of brass, copper undercoated, or tin-plated. These two solder tabs ensure the retention of the header to PCB connection and act as a strain relief for the SMT solder tails minimizing the chance of solder joint breakage.

Vast Temperature Range with Relatively Low Insulation and Contact resistance

There’s a dimple at the center of the contact which ensures positive contact and low contact resistance at all times. Insulation resistance and contact resistance are 100 Mega ohm per minute minimum and 20 Mega ohm maximum, respectively.

The temperature range for this connector is -25 degrees centigrade to +85 degrees centigrade. This range is based on the rise of temperature with increasing current.

Applicable in Chassis Wiring and Power Transmission Wiring

The 2.0 mm Pitch Connector can be used for AC and DC operations with a rated current of 1.0 amperes and 50 Volts. It is applicable in both chassis wiring and power transmission wiring.

Fully Shrouded Header

The pin header of the connector is wrapped with a thin plastic guide box around it good for preventing cable connection mishaps and it also provides good guidance for the mating connector.

Twin U-slot section

The Twin U-slot section or twin-axial cable has a pair of insulated conductors where the conductors run parallel with one another. This is commonly used in high-speed balanced-mode multiplexed transmission in large computer systems, in which the signals are carried by both conductors in a U-shaped configuration. This ensures reliable connection and provides greater noise immunity.

2.0 mm pitch serves as the best choice for densely crowded electronics systems because of its small, square-edged configuration, and ruggedized, and shock-resistant feature.

Caters Power, Signal, and Grounding Contact Needs

This connector can either stand as a power contact, signal contact, or both as a power and signal contact or a signal and grounding contact. The wiring harness interconnects the PCB to various components that send signals and power to other electronic devices.

Safe and Reliable

2.0 mm pitch connectors ensure safety, system protection, and performance with their bonded metallic conduits and multiple grounding points preventing fire hazards, component damage, overheating, and possible electrocution.

ROHS Compliant

The product does not contain restricted chemicals in concentrations not comply with ROHS standards. Thus, for its components, the products can be worked upon at high temperatures required by lead-free soldering.

Automotive, heavy-duty military and Marine

2.0mm connectors are not only suitable for densely packed equipment requiring weight reduction and downsizing but also for automotive connections, built to be robust in tough and harsh conditions.

Popularity in Battery Connections

2.0 mm pitch connectors are also popular in batteries such as in rechargeable battery packs, battery balancers, and battery eliminator circuits. Battery connections rely on the ability of the current to pass a reliable and solid current. This prevents overheating in the circuit and voltage drop.
