10 ft DB9 RS232 Serial Null Modem Cable female to female

10 ft DB9 RS232 Serial Null Modem Cable female to female

Applications:

  • Male to female/male to male/female to female serial null modem cable (7 wire type and full handshaking) connects your computer to the device with COM port RS-232 compatible interface.

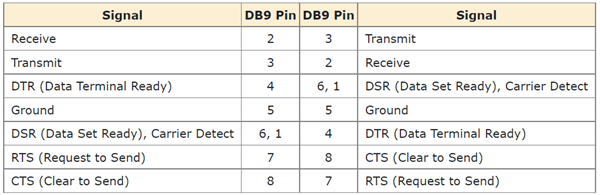

  • Wired as a 9-pin serial port Null-Modem cord that 2-3, 4-6, 7-8 lines are cross-linked (TX, RX, RTS, CTS, DTR, DSR wires are connected); standard shielded DE9 rs232 cable male to female extender with AL foil.
  • The wires inside are of 30AWG gauge and easy to solder to, and they connect to the pins in the order of the standard wire color code.
  • Hooking up PC laptop to some old RS232C equipment like scanner, Modem, printer, plotter, camera, barcode/embroidery machine, touchscreen, microcontroller, and factory test equipment.


Product Detail

Product Tags

Technical Specifications
Warranty Information
Part number                                                                  STC-PP001

Warranty                                                                       3-year

Hardware
Connector Plating                                                         Nickel
Connectors
Connector A                                                                  1 - DB-9 (9 pins, D-Sub) Female/Male

Connector B                                                                  1 - DB-9 (9 pins, D-Sub) Female/Male

Physical Characteristics
Cable Length                                                                1/1.5/3/5m or Customized

Color                                                                             Black/Gray

Connector Style                                                            Straight

Product Weight                                                             0.15

Packaging Information
Package Quantity                                                         1Shipping (Package)

Weight                                                                          0.16

What's in the Box

RS232 Serial Null Modem Cable, Crossover Serial Cable w/Al-Mylar Shielding, DB9 Serial COM Port Cable Female to Male, Compatible w/DTE Devices, Black

Overview

DB9 RS232 Serial Null Modem Cable

Simple Null Modem Cable: Transfer data between two devices using an RS-232C serial communication protocol

If your com port equipment requires three wire null modem cables (TX, RX, and GND), take this 10-foot 9-pin serial cable adaptor wherever you need it, it allows you to add your peripherals to an application or replace the crossover cables.

This short 9-pin D-sub RS232 cable is male-to-male with gold-plated pins for superior corrosion resistance ensuring a solid connection.

The connectors are equipped with a pair of thumbscrews for securing the plug to the female socket.



https://www.stc-cable.com/10-ft-db9-rs232-serial-null-modem-cable-female-to-female.html



For Connecting RS232 devices below (partial):

Touchscreen

Telescope

vinyl cutting machine

Modem

GPS

network equipment

radio transceiver

stereo system subwoofer/speaker set

sewing machine

weather station

Or controller to a remote control camera



Important Note:

It is shielded with standard Foil-Al layer shielding as most cables do, and it fits most jobs. But if there are big mess of interference in your work area, you may need a special heavy-duty shielding cable (copper braided + AL-foil).



Item Specifications:

Connectors: DB9 to DB9 (Male-Male)/(Male-Female)/(Female-Female)

Interface Surface: Nickel-plated

Pins Surface: Gold-plated

Wire Gauge: 30 AWG

Cord Diameter: 6mm

Cord Length: 1.5m/customized

Color: Black/Gray
